NOTE: It is important that all
areas where the bed cover
mounts are clean and free of
debris prior to installing.
TOOLS REQUIRED
•
Flat head screwdriver
•
1/2" wrench or socket
•
Isopropyl alcohol
TOOLS RECOMMENDED
•
Spring clamps
•
Scissors/utility knife
D
E
H
I
L
M
N
1
The serial number for the cover is located here.
For future reference, write it here:
_____________________________________________
TruXedo Inc. • 2209 Kellen Gross Drive Yankton, SD 57078 • 877-878-9336 • truxedo.com ©TruXedo Inc., 2023
TOYOTA TUNDRA WITH DECK RAIL SYSTEM
OWNER'S MANUAL
Damaged or missing parts?
Parts will be shipped to you factory direct. Do not return kit to place of purchase.
F
G
J
K
Call 877-878-9336 Mon - Fri 8 a.m. - 5 p.m. CT
A

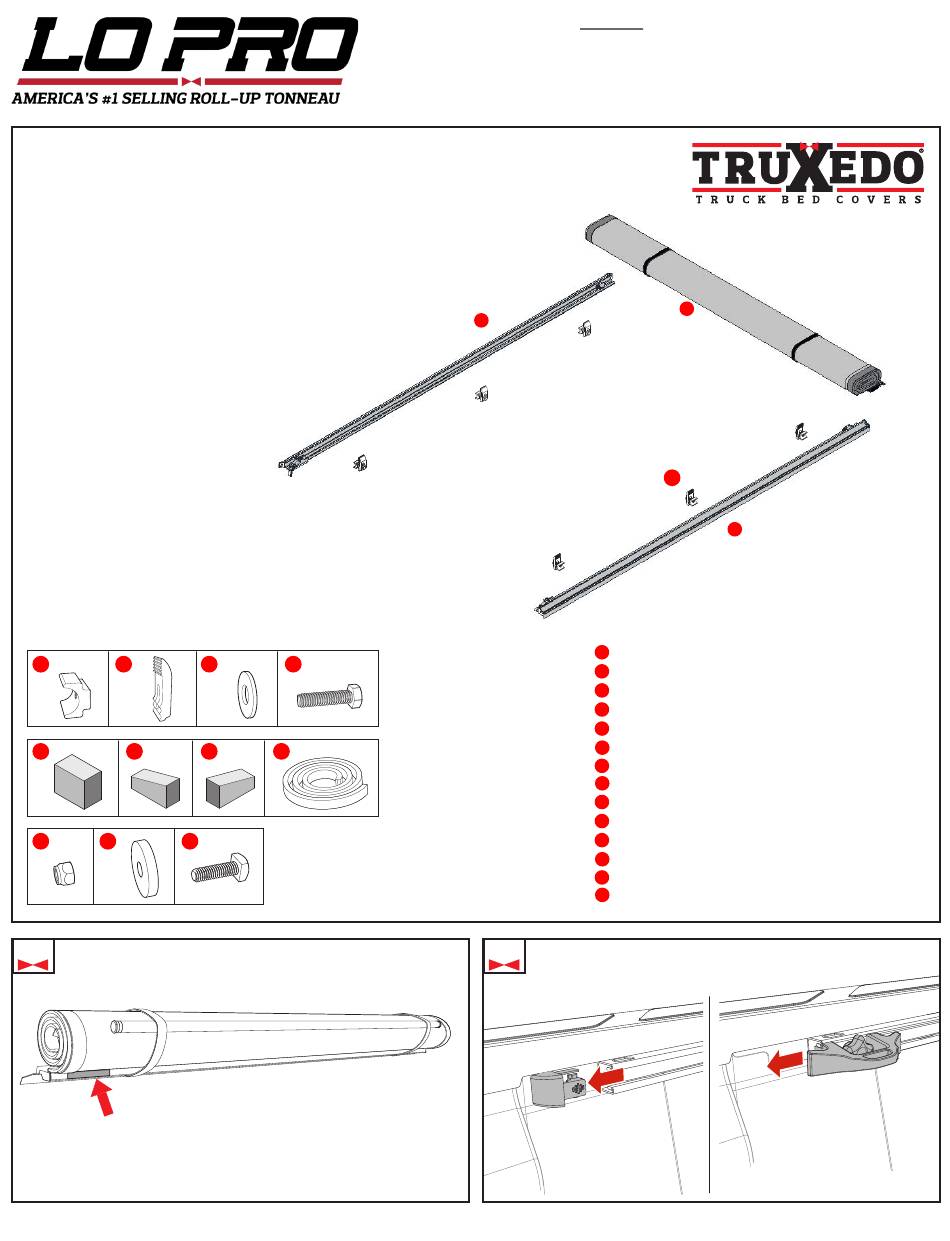

PARTS INCLUDED IN YOUR KIT:
Driver side rail
A
Passenger side rail
B
Cover assembly
C
6x Male clamp ends
D
6x Female clamp ends
E
6x Flat washers
F
6x Cap screws
G
2x Front corner seals
H
2x End plug seals
I
2x End plug seals
J
Bulkhead seal (on select make/models)
K
2x Hex nuts
L
2x Plastic washers
M
2x Square head bolts
N
2
Remove the rear cargo rail end plugs and remove the
cargo tie-downs if installed.
C
D
B
Part# 1118966 Rev. A 03-21-23
