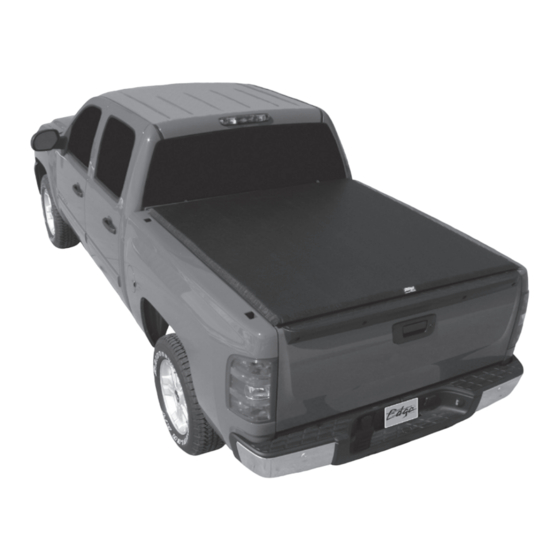

TruXedo Edge Owner's Manual

3"
1 ___*___ Replacement Tonneau Cover 11 1115354 Header Insert Safety Clip
2 ___*___ Aluminum Header Front 12 1704250 Tension Control Screw
3 ___*___ Aluminum Header Rear 13 1703260 Tension Control Bracket
4 1117392 TruxSeal, 3.5 long 14 1702826 Rivet 1/8 Dia. x 1/4" Long
1704292 Rear Header End Plug, Right 15 ___*___ Hook and Loop Fasteners
5
6 1704291 Rear Header End Plug, Left 16 1702611 Cotter Pin, 3/64" x 19/32"
7 1701580 Hex Lock Nut, 3/8"-16 17 1115191 Aluminum Clamp Assy
8 1115745 Washer Plastic 1/4 x 1.50 Dia. 18 ___*___ Side Rail, Passenger's Side
9 1703455 Square. Hd Cap Screw, 3/8" x 1 1/2" 19 ___*___ Side Rail, Driver's Side
10 ___*___ Aluminum Bow
* Please specify length or make and model of vehicle.
20 1114773 Flat Spring, 5/8" x 3 7/8"
21 1704213 Latch Assembly
22 1702926 Cap Screw, 5/16" x 7/8"
23 1702801 Header Stop
24 1700419 Nylon Lock Nut, 5/16"
25 ___*___ Header Seal, Notched
26 1115353 Header Safety Strap
27 1703344 Blind Rivet, 1/8" x 3/16"
28 1704204 Front Header End Plug, Right
29 1704205 Front Header End Plug, Left
