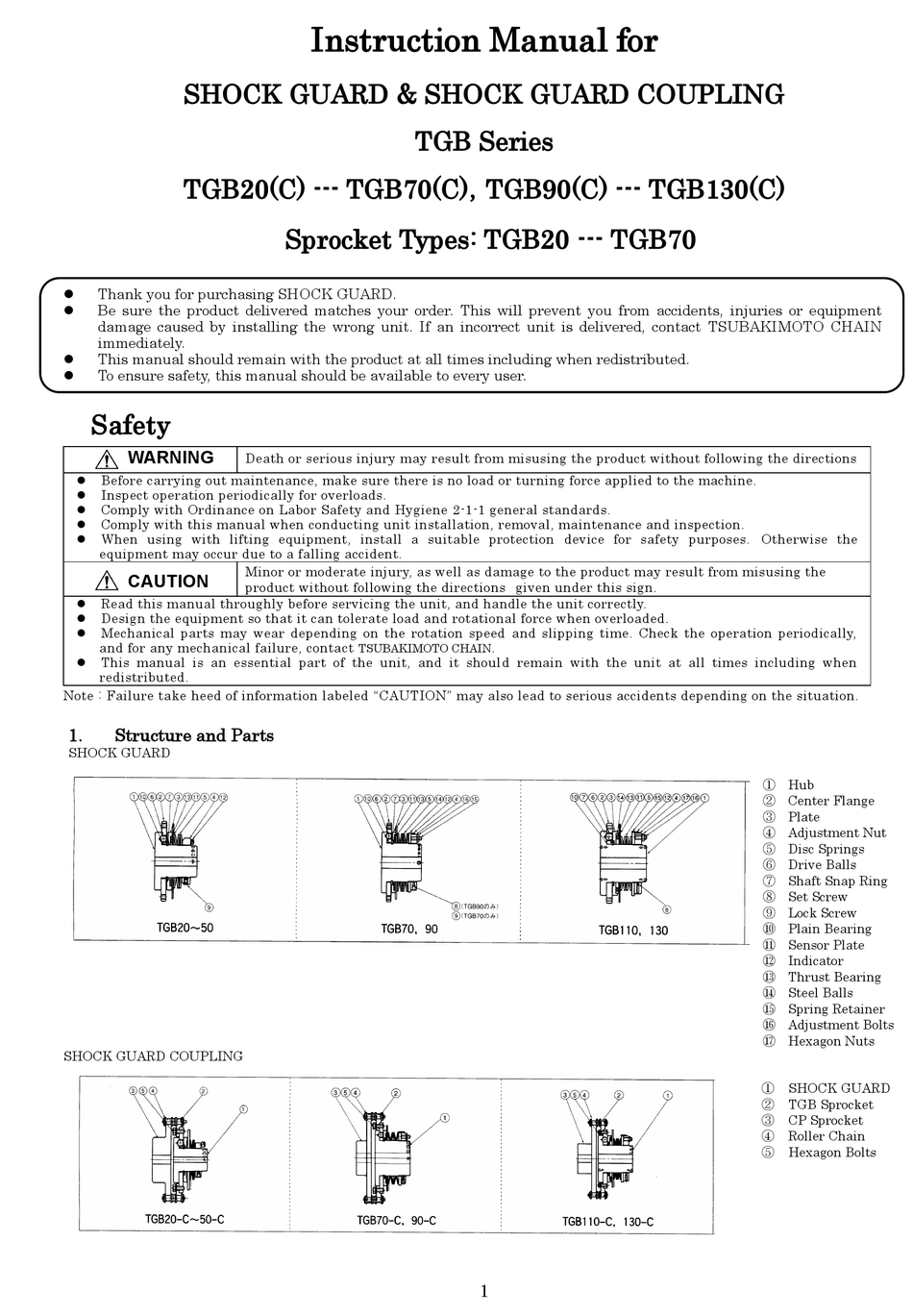

Tsubaki TGB Series Instruction Manual

Shock guard & shock guard coupling

Advertisement

Quick Links

SHOCK GUARD & SHOCK GUARD COUPLING
TGB20(C) --- TGB70(C),TGB90(C) --- TGB130(C)
Thank you for purchasing SHOCK GUARD.
Be sure the product delivered matches your order. This will prevent you from accidents, injuries or equipment
damage caused by installing the wrong unit. If an incorrect unit is delivered, contact TSUBAKIMOTO CHAIN
immediately.
This manual should remain with the product at all times including when redistributed.
To ensure safety, this manual should be available to every user.
Safety
WARNING
Before carrying out maintenance, make sure there is no load or turning force applied to the machine.
Inspect operation periodically for overloads.
Comply with Ordinance on Labor Safety and Hygiene 2-1-1 general standards.
Comply with this manual when conducting unit installation, removal, maintenance and inspection.
When using with lifting equipment, install a suitable protection device for safety purposes. Otherwise the
equipment may occur due to a falling accident.
CAUTION
Read this manual throughly before servicing the unit, and handle the unit correctly.
Design the equipment so that it can tolerate load and rotational force when overloaded.
Mechanical parts may wear depending on the rotation speed and slipping time. Check the operation periodically,
and for any mechanical failure, contact
This manual is an essential part of the unit, and it should remain with the unit at all times including when
redistributed.
Note : Failure take heed of information labeled "CAUTION" may also lead to serious accidents depending on the situation.
1.
Structure and Parts
SHOCK GUARD
SHOCK GUARD COUPLING
Instruction Manual for
TGB Series
Sprocket Types: TGB20 --- TGB70
Death or serious injury may result from misusing the product without following the directions
given under this sign.
Minor or moderate injury, as well as damage to the product may result from misusing the
product without following the directions given under this sign.
TSUBAKIMOTO CHAIN
.
1
① Hub
② Center Flange
③ Plate
④ Adjustment Nut
⑤ Disc Springs
⑥ Drive Balls
⑦ Shaft Snap Ring
⑧ Set Screw
⑨ Lock Screw
⑩ Plain Bearing
⑪ Sensor Plate
⑫ Indicator
⑬ Thrust Bearing
⑭ Steel Balls
⑮ Spring Retainer
⑯ Adjustment Bolts
⑰ Hexagon Nuts
SHOCK GUARD
TGB Sprocket
CP Sprocket
Roller Chain
Hexagon Bolts

Advertisement

loading
Need help?

Need help?

Do you have a question about the TGB Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Tsubaki TGB Series

  • Page 1 Instruction Manual for SHOCK GUARD & SHOCK GUARD COUPLING TGB Series TGB20(C) --- TGB70(C),TGB90(C) --- TGB130(C) Sprocket Types: TGB20 --- TGB70 Thank you for purchasing SHOCK GUARD. ⚫ Be sure the product delivered matches your order. This will prevent you from accidents, injuries or equipment ⚫...
