Tsubaki
TKR15H22

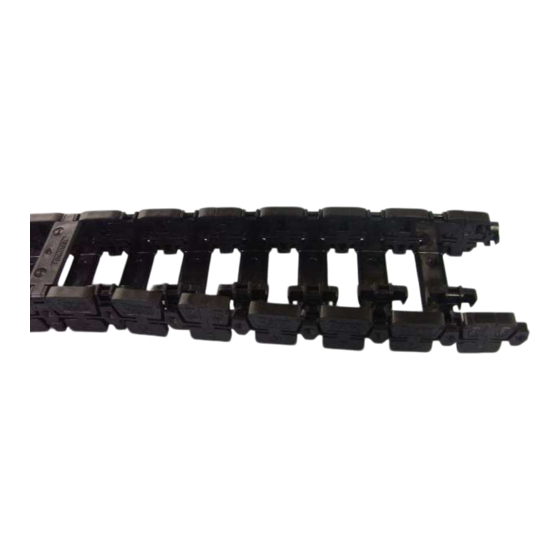

Plastic Cableveyor®

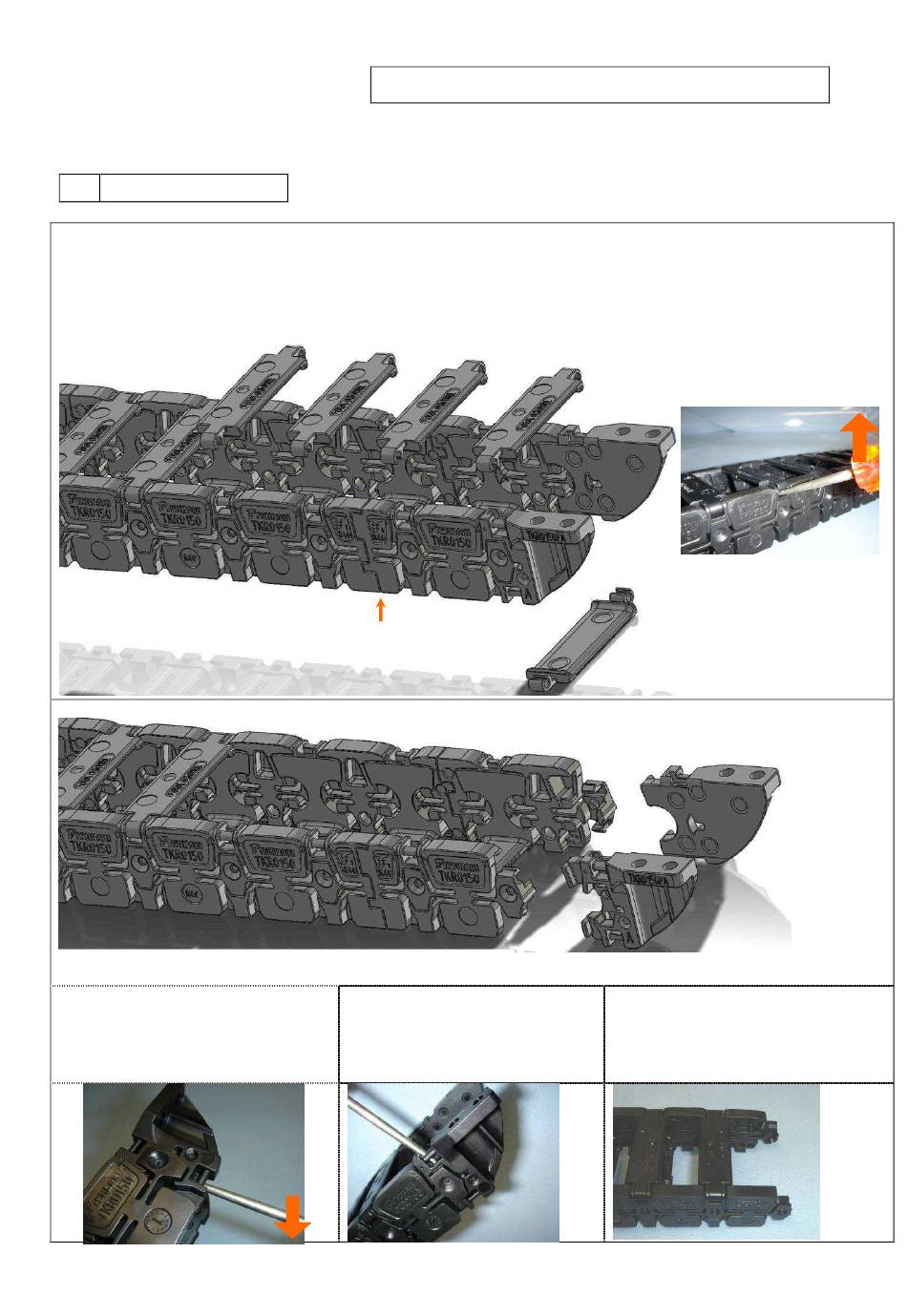

1 Extending Links
1. Remove all the bracket inner/outer side arms and all arms from the bracket to the first outer link connection. Remove an
additional two arms from that point back as well.
2. Remove the brackets
*The outer link is unlatched when it lifts up ~2mm.
A)
Remove the inner/outer side arms*,
insert a flat head screwdriver in the
gap of the bracket on the outer side
face, and pry in the direction of the
arrow to unlatch.
Instructions for Extending Links
A. Insert a flat head screwdriver into the gap on the side
B. Open the arm and pull it along its axis.
C.
Connection
B)
Repeat A on the inner side to
remove the bracket on one side.
1
face of the inner link and pry in the direction of the
arrow to unlatch.
Pull until it is vertical, then pull laterally to remove.
C)
Repeat steps A and B on the
opposite side to remove that
bracket.
Tsubakimoto Chain Co.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Tsubaki TKR15H22
Summary of Contents for Tsubaki TKR15H22
- Page 1 Tsubaki Instructions for Extending Links TKR15H22 Plastic Cableveyor® Tsubakimoto Chain Co. 1 Extending Links 1. Remove all the bracket inner/outer side arms and all arms from the bracket to the first outer link connection. Remove an additional two arms from that point back as well.
- Page 2 3. Unlatch the inner and outer links around the connections, and then further remove an additional two inner links. Repeat the same on the opposite side to remove the inner links. (Refer to step 2 above for removal) Connection Connection Connection 4.
- Page 3 6. Remove outer links until you have the intended number of links. *Use a clipper or box knife to cut as per the diagram below. (The cut end of the link element should be 1mm or less) Cut outer links at one of these points 7.
