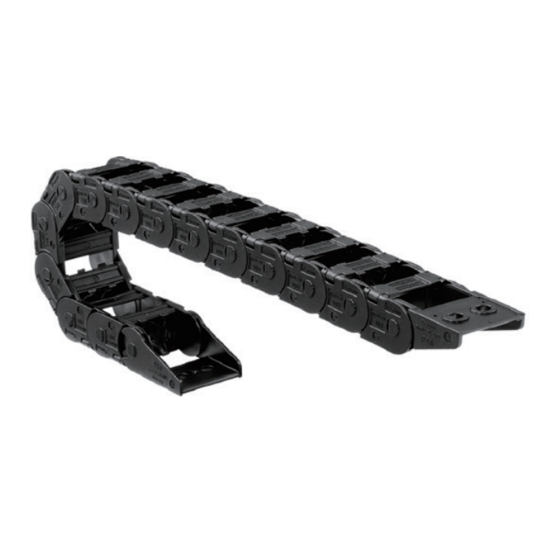

Tsubaki TKP25H15 Instruction Manual

1 Structure/
Part Name
2

Delivery

The cable carrier is delivered in sections if its length exceeds the standard length (number of links shown below).
The moving and fixed end plastic brackets are usually delivered unmounted.
[Standard length (No. of links)] • TKP25H15: 40 links
3

Connection

1. Align two links to be
connected to each other.
4

Disassembly

1. Insert a flathead screwdriver
(tip width: 2 to 3 mm) into the
recess at the disassembling
point (circled part).
TSUBAKI
CABLEVEYOR
(Cable Carriers)
Caution: Wear suitable protective equipment for the work (such as safety goggles, gloves, and safety shoes).
Moving end plastic
bracket
* The same procedure applies to connecting the links to the moving and fixed end plastic
brackets respectively.
2. Overlap the links with each
other and insert the pin into
the hole on one side.
* The same procedure applies to separating the links from the moving and fixed end
plastic brackets respectively.
2. Twist the flathead screwdriver
in the direction of the arrow to
remove the pin from the hole.
TKP25H15
(Formerly TKP0250)
Stay
Link
Fixed end plastic
bracket
1
Instruction Manual
3. Push in the other side of the
links, insert the pin into the
hole to connect them, and
close the stays.
3. Bend the cable carrier in the
direction of the arrows using
the pin on the other side as a
pivot point to split it.
