1

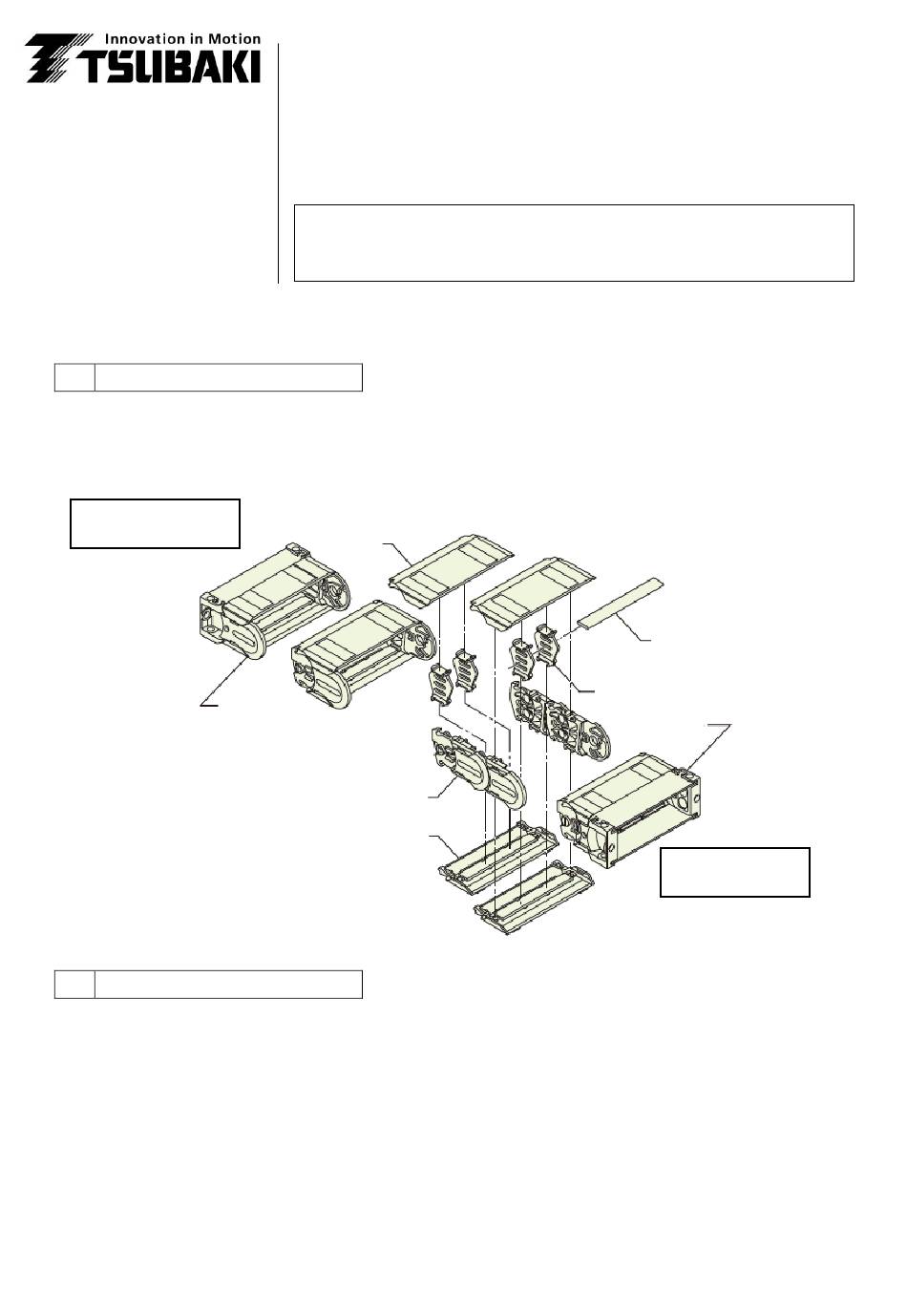

Structure/Part Names

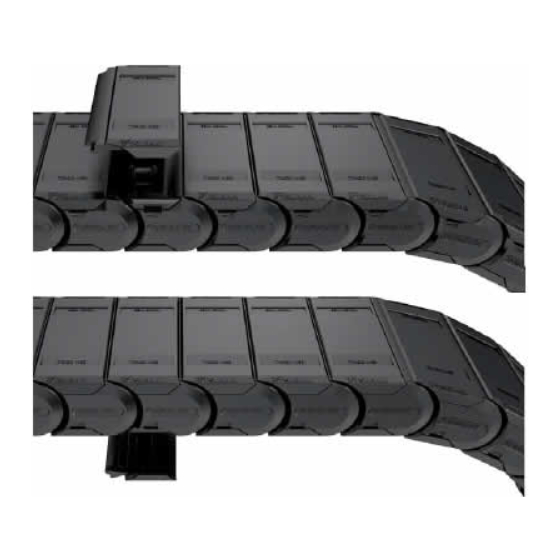

Caution: The following information is based on models with an outside openable stay (-80).
For models with an inside openable stay (-60), "outside cover" should be replaced with "inside cover," and
"inside cover" should be replaced with "outside cover."
Moving end side
Moving end
bracket
2
Assembly Precautions
1) Use only a flathead screwdriver with a tip width of 7 mm and a plastic hammer.
A flathead screwdriver with a wider tip may not fit inside holes and may damage parts if used.
2) This product is designed to be easily assembled and disassembled. If insertion of any part during assembly is
difficult, the position may not be aligned properly. In such situations, do not forcibly insert the part, and check
the position and adjust as necessary.
3) There are no procedures requiring the handle of the flathead screwdriver to be hit with a hammer, etc. Such
actions should never be taken.
TSUBAKI
CABLEVEYOR
(Cable Carriers)
TKA30H20/TKA38H26/TKA45H36/TKA55H45
Caution: Wear the appropriate protective gear (safety glasses, gloves, safety shoes, etc.) when working.
Outside cover
(detachable)
Link
Inside cover
Instruction Manual
Vertical divider
Fixed end bracket
1
Horizontal divider
(for DSA type)
Fixed end side
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Tsubaki TKA30H20
Summary of Contents for Tsubaki TKA30H20
- Page 1 TSUBAKI Instruction Manual CABLEVEYOR (Cable Carriers) TKA30H20/TKA38H26/TKA45H36/TKA55H45 Caution: Wear the appropriate protective gear (safety glasses, gloves, safety shoes, etc.) when working. Structure/Part Names Caution: The following information is based on models with an outside openable stay (-80). For models with an inside openable stay (-60), “outside cover” should be replaced with “inside cover,” and “inside cover”...
- Page 2 The cable carrier is delivered in sections if its length exceeds the standard length (number of links shown below). The number of links is such that each section is an equivalent length that does not exceed the standard length. [Standard length (No. of links)] TKA30H20: 100 links TKA38H26: 80 links TKA45H36: 80 links TKA55H45: 60 links Connecting the Cable Carrier 4-1 Remove the outside cover.
- Page 3 Caution: Make sure that the links are assembled correctly and that the inside cover is not detached from the links. Inserting the Cables/Hoses Caution: Vertical dividers are directional with a top and bottom. Install the side of the vertical divider with protrusions on the sides onto the inside cover. TKA30H20/TKA38H26 TKA45H36/TKA55H45 Top (outside) Protrusions on sides Bottom (inside) 5-1 Install the vertical dividers.
- Page 4 • Fixable installation Install the divider with the side with a protrusion on the side of the inside cover with the scale to fix the position. 5-2 Insert the cables/hoses. 1) Insert the cables/hoses after installing the vertical dividers. 5-3 Install the outside cover. Caution: The shapes of the moving end outside cover, outside cover, and fixed end outside cover are all different.
- Page 5 2) Install the fixed end outside cover. Insert the fixed end outside cover in the direction of the red arrow into the indentation on the link circled in the following images, and then tap with a plastic hammer to complete installation. 3) Install the outside cover onto the links from the fixed end side as in 2) above.
- Page 6 6-3 Keep the difference (ε) in mounting positions between the moving and fixed end brackets less than or equal to the values shown in the table below. Model ε mm or less Moving end bracket Space: 50 mm Space: TKA Series or more 50 mm or more Fixed end...
- Page 7 Always ensure that the final customer receives the instruction manual. ● If you do not have the instruction manual, contact a Tsubaki representative with the product name, series name, and chain/model number to receive the appropriate manual. The product information given in this catalog is mainly for selection purposes. Thoroughly read the instruction ●...
