1

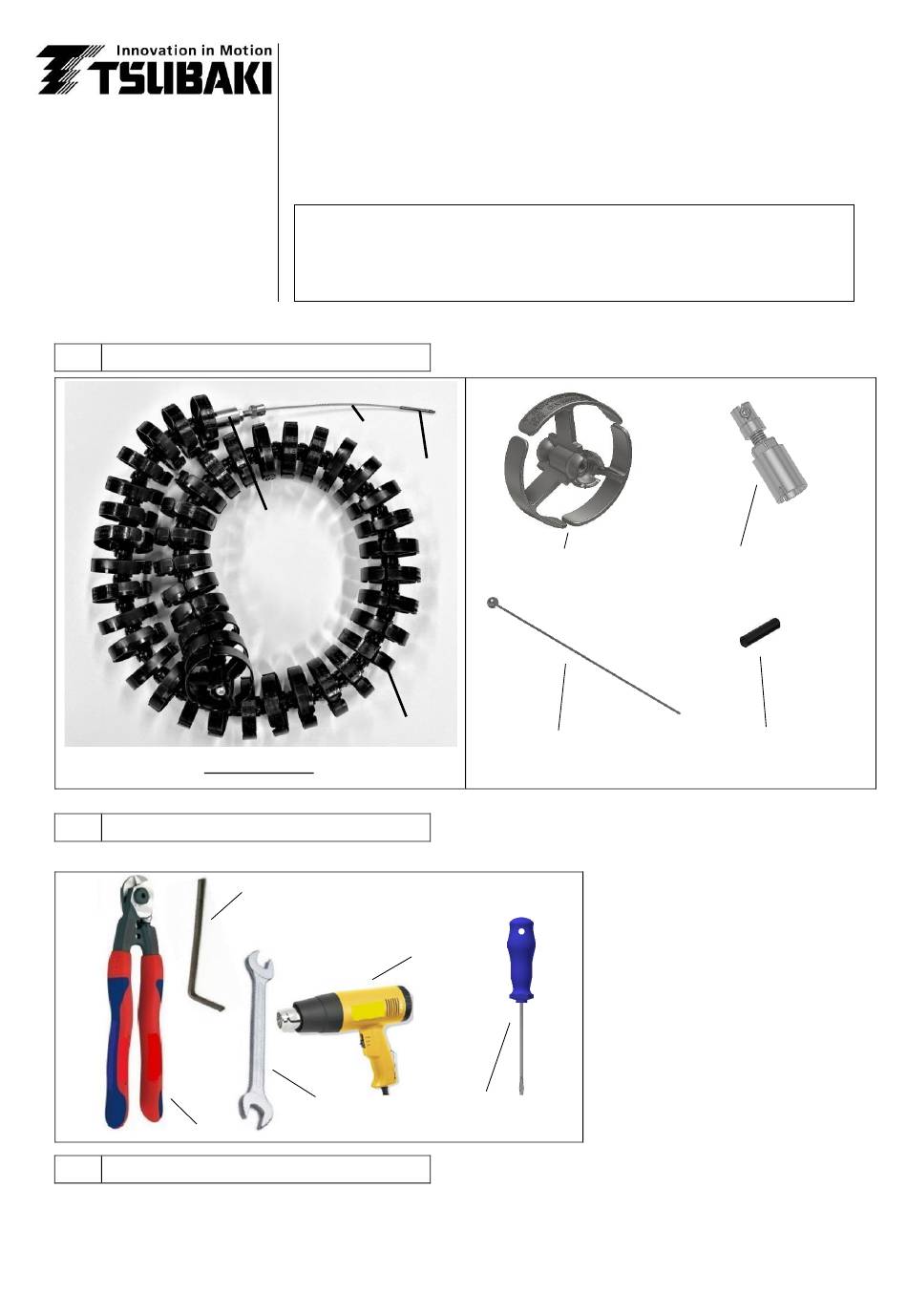

Structure/Part Names
When delivered
* This product is delivered fully assembled.
2
Wire cutter
3
Work Precautions
1) This product is designed to be easily assembled and disassembled. If insertion of any part during assembly is
difficult, the position may not be aligned properly. In such situations, do not forcibly insert the part, and check the
position and adjust as necessary.
2) Wear the appropriate protective gear (gloves, safety glasses, safety shoes, etc.) when working.
(For details, see the end of this manual.)
TSUBAKI
CABLEVEYOR
(Cable Carriers)
Caution: Wear the appropriate protective gear (safety glasses, gloves, safety shoes, etc.) when working.
(3)
(2)
(1)
Tools
Hex key (1.5 mm)
Heat gun
Wrench
(for M4 bolts)
TKRB14H10
(4)
(1) Link
(3) Ball-end stainless steel wire (4) Heat-shrink tube
Flathead screwdriver
(precision tool)
1
Instruction Manual
(2) Clamping piece (CP)
Advertisement
Table of Contents
Related Manuals for Tsubaki TKRB14H10
Summary of Contents for Tsubaki TKRB14H10
- Page 1 TSUBAKI Instruction Manual CABLEVEYOR (Cable Carriers) TKRB14H10 Caution: Wear the appropriate protective gear (safety glasses, gloves, safety shoes, etc.) when working. Structure/Part Names (1) Link (2) Clamping piece (CP) (3) Ball-end stainless steel wire (4) Heat-shrink tube When delivered * This product is delivered fully assembled.
-
Page 2: Assembling The Product
Assembling the Product Ball joint ribs (three locations) Socket Ball side side Insertion direction CP grooves (three locations) Ball joint 4-1 Connecting the ends of two links 4-2 Insert the stainless steel ball- 4-3 After passing the CP onto the wire forms a ball joint, so join links end wire through the socket from the ball side, align the CP... -
Page 3: Attaching The Bracket
Attaching the Bracket Bracket M4 × 2 Bracket base 5-1 Prepare two (M4) hex cap bolts. 5-2 Use hex cap bolts to secure the 5-3 Use the two outside mounting They required when bottom half of the bracket in the holes or all three holes on the attaching the bracket. - Page 4 Attaching the Guide Holder M4 × 2 6-2 Use hex cap bolts to secure the 6-3 Place one half of the cylindrical 6-1 Prepare two (M4) hex cap bolts. part shown above (one half of part on the part you secured in They required when...
- Page 5 Maintenance (link extension/contraction)
-
Page 6: Maintenance Check
Inserting Cables/Hoses ■ Inserting the first cable/hose Arms Slit (1) Push the cable/hose into the arms to deform just one of them. Link (2) Push the cable/hose horizontally against the widened slit to raise the other arm, facilitating the insertion of the cable/hose. * Precautions when inserting cables/hoses Insert cables/hoses properly. - Page 7 The logos, brand names, or product names in this manual are trademarks or registered trademarks of Tsubakimoto Chain Co. and its subsidiaries in Japan, the US, and other countries. * The specifications in this manual are subject to change without notification for purposes such as the improvement of the product. Issued on October 2, 2023 ©...
