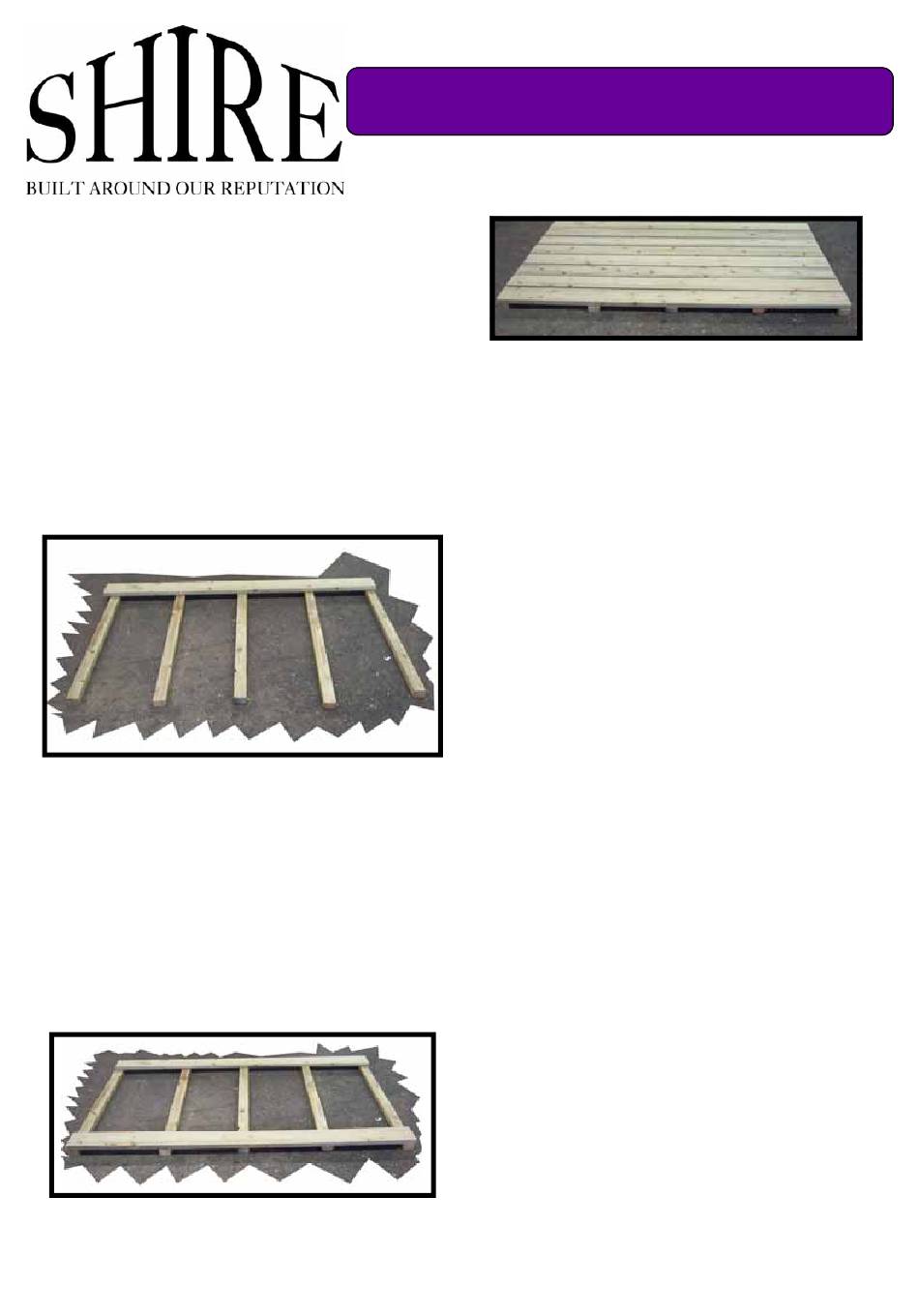

1.Before construction of your
cabin the complete decking
rectangle is made first.
2.Equally space the deck bear-
ers with the 62mm (wide) side
to the floor and the outer bear-
ers level with the end of a deck
board (Fig D1)
Fig D1
3.Use another deck board as a
guide( fig D2) and measure di-
agonally to ensure squareness
and screw the first deck
board only into position using
2 x 50mm at each bearer.
Fig D2
J Shepherd
Porch decking assembly
3.Equally space the decking
boards leaving an even gap
between each board and
screw into position using
40mm screws as before (Fig
D3)
4.Place Into position when you
have fixed first logs (next sec-
tion).
12.
31/03/2010
Fig D3
I
Advertisement
Related Manuals for Shire 46034
Summary of Contents for Shire 46034
- Page 1 Porch decking assembly 1.Before construction of your cabin the complete decking rectangle is made first. 2.Equally space the deck bear- ers with the 62mm (wide) side Fig D3 to the floor and the outer bear- 3.Equally space the decking ers level with the end of a deck boards leaving an even gap board (Fig D1) between each board and...
-
Page 2: Important Safety Information
PINE LODGE ASSEMBLY INSTRUCTIONS Thank you and congratulations on the purchase of your pine lodge. We believe that this product will give you many years of excellent service. This is a natural product manufactured to the highest standard therefore if you have any queries or experience any difficulties then please contact our customer service hotline on 01945 46 89 10 01945 46 89 11... - Page 3 Assembly of your log cabin NOTE if you have double doors , double windows or tiles see supplement sheets first A - SETTING OUT See Drawing pages 1&2 Lay out pressure treated base floor joist timbers as fig 1(It is recom- mended that you place a piece of damp proof strip under each joist).
- Page 4 The first roof board is now ready to be positioned, Start at the front with the groove facing the front and Lining up with E - GABLES roof beams (fig12).Bevelled corner down– outer roof face flat. See sheets 2A, 3A Fix into place (At the roof bearers and angled eaves edgings) with 2 Assemble the back gable first.
- Page 5 Cut the skirting boards to suit ( NOT UNDER DOOR FRAMES) and fix with 40mm oval nails at approx 400mm centres (fig 20) FIG 16 Overlap this strip with the next one next with a maximum of a 100mm overlap and nail as above and along the overlap, Repeat on both sides until you get to the ridge piece.
-
Page 6: Parts List
28 mm BIG Double door assembly supplement Parts list Qty. Description Length Code Door frame 25x(log size) 28 1855 Door frame 25x (log size) 28 1421 Door architrave 70x20mm 1805 Door architrave 90x20mm 1581 Door architrave 70x20mm 1805 DE -external Door architrave 70x20mm 1561 DF –internal... - Page 7 Fig 8 12 Drill (not too deep) and screw in each corner with 40mm screws (fig 9). Fig 14 8 Make a visual judgement to set an even gap top/bottom of the doors and secure each hinge with 1x25mm screws (fig 15). Ensure the hinges are tight against the face of the doorframe.
- Page 8 DOUBLE GLAZING beading must be sealed with low modulus silicone sealant...
- Page 9 1777‐2 1421‐2 rubber 1600 drip bar...
- Page 10 W9t Window assembly supplement Parts list YOU MUST READ THE SAFETY SUPPLEMENT AT THE BEGINNING OF THE MAIN INSTRUCTION SHEET WINDOW KITS– Taped in sets Windows W9S –TOP HUNG Casement stays with 2 pins and screw sets Window hinges Window frame 25x29 x1196 Window frame 25x29 x965...
- Page 11 Place the 2 pins under each casement stay. Position so that it is not resting on the window frame and not so high that the pins are of no use. Fig A13 Fig A9 Fig A17 Fit the Casement Stay (fig A18) on the window using 2x 25mm screws.
- Page 13 915‐2 1204‐2 rubber 1090 drip bar...
