Summary of Contents for Sport-thieme 115 2308

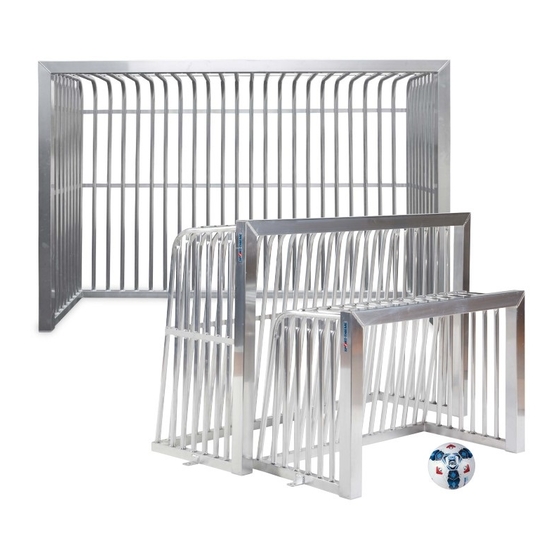

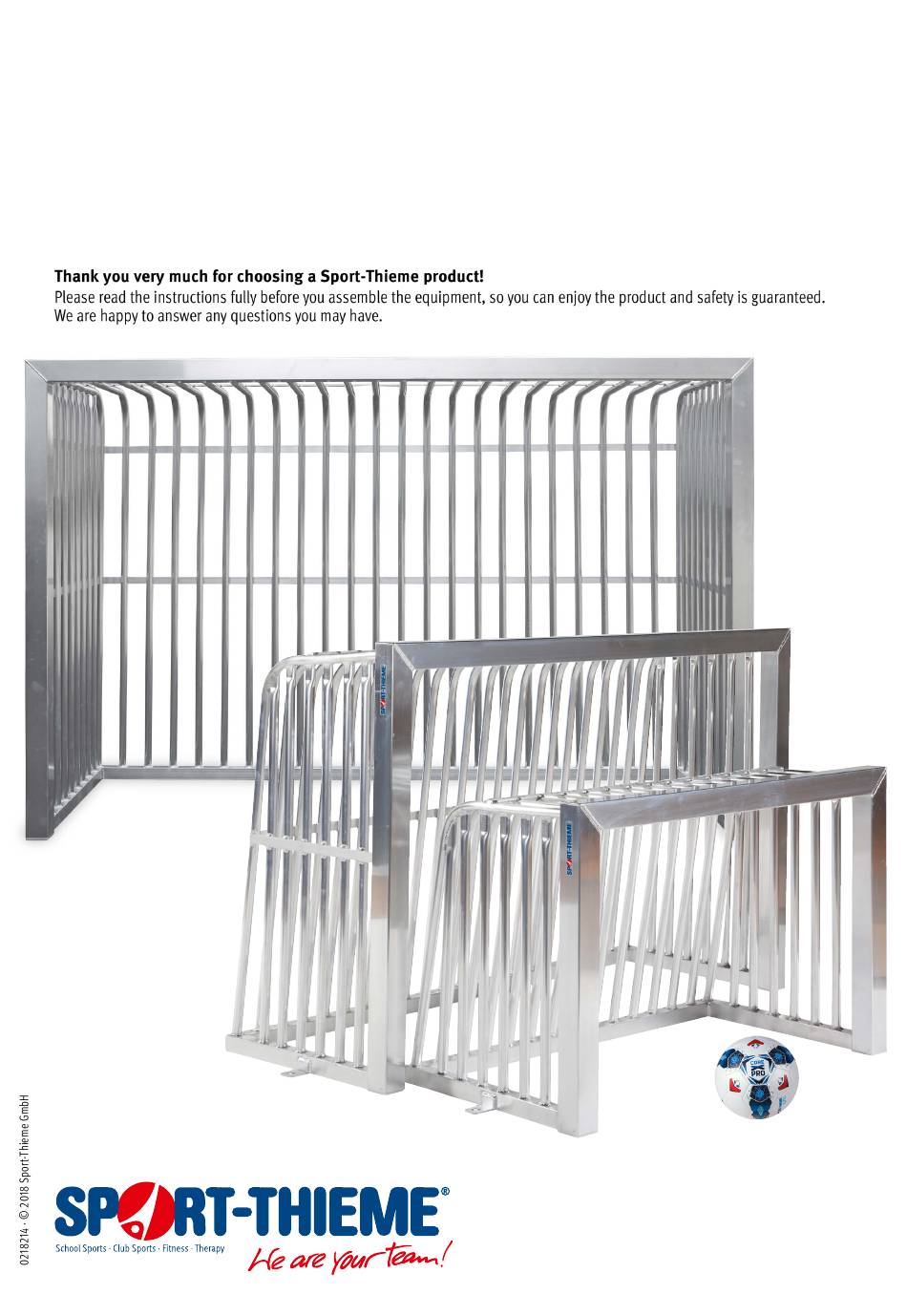

- Page 1 Assembly instructions Art.-Nr.: 115 2308 115 2337 115 2340 Sport-Thieme ® Fully Welded Mini Leisure Goal D-38367 Grasleben · Germany sport-thieme.com · info @sport-thieme.com Phone: +49 53 57 181 543 · Fax: +49 53 57 181 921...
- Page 2 Assembly instructions for Art.-Nr. 115 2308/115 2337/115 2340 This goal is completely welded so that it need not to be assembled. However, it has always to be protected against overturning according to DIN EN 15312 (see the information in chapter„ground fixing“).
- Page 3 Assembly instructions for Art.-Nr. 115 2308/115 2337/115 2340 b) Top view of ground fixing for playground goal 1.20 x 0.80m: Art.-Nr. 115 2308 c) Top view of ground fixing for playground goal 1.80 x 1.20m: Art.-Nr. 115 2337 d) Top view of ground fixing for playground goal 2.40 x 1.60m: Art.-Nr. 115 2340 3.
