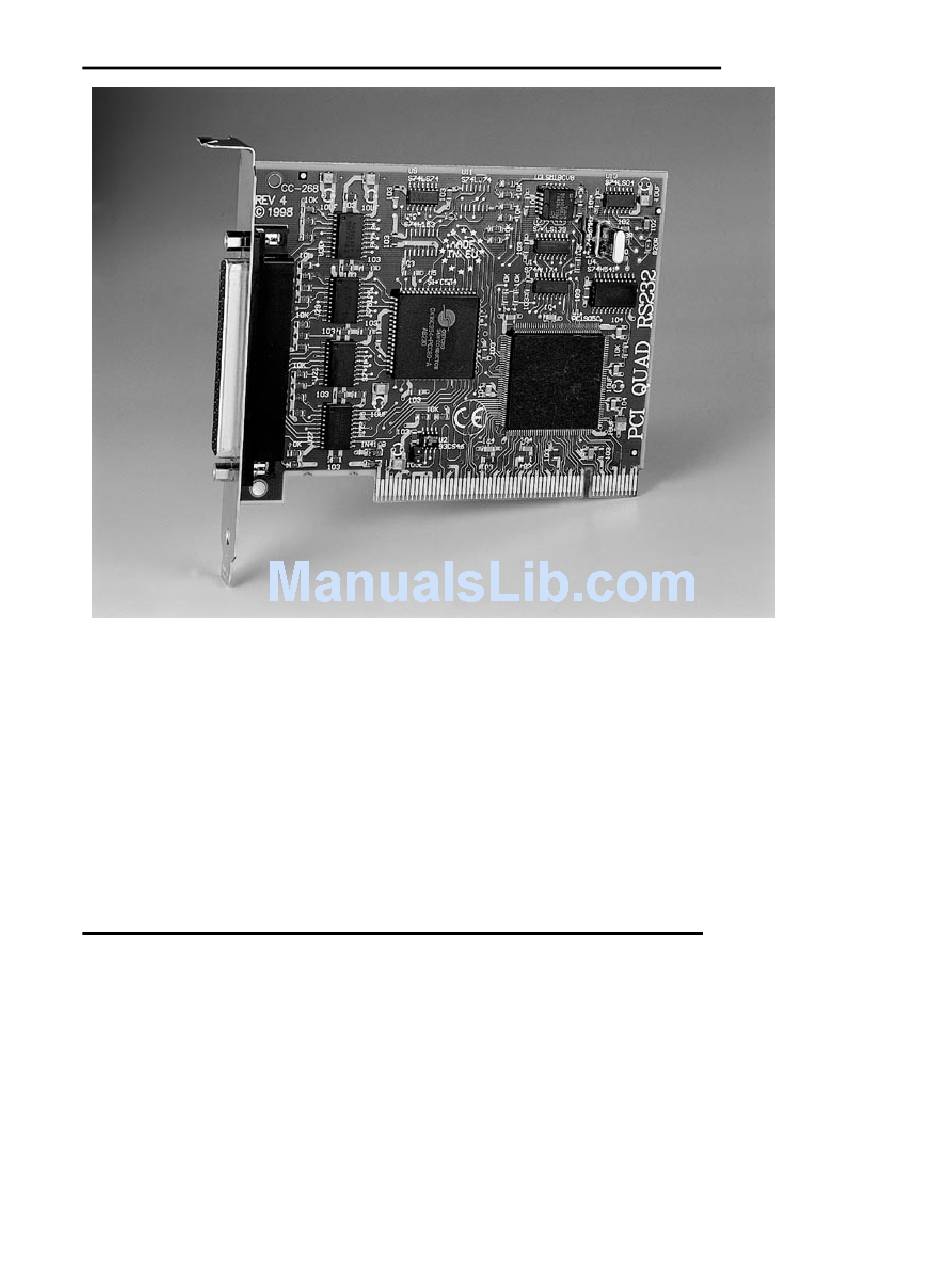

PCI Photon 4 Port RS232

PCI Photon 4 Port RS232 Card Specifications.

Dimensions:
I/O Connection:
Also, refer to Chapter 4 "RS232 Pinouts and Port Cabling" for
more detailed information on RS232 cabling, ports and pinouts.

Configuring PCI Photon 4 Port RS232 Cards.

The PCI Photon 4 Port RS232 cards are fully "plug and
play", and require no hardware configuration. They can be
installed "directly from the box".
4.8 x 3.8 in, 120 x 95 mm
37 way female D connector
Fully moulded 4 port cable with EITHER 9
or 25 pin D connectors.
Specifications
Chapter 2 Page 7
