PCI Photon 4 Port RS232 Software Installation

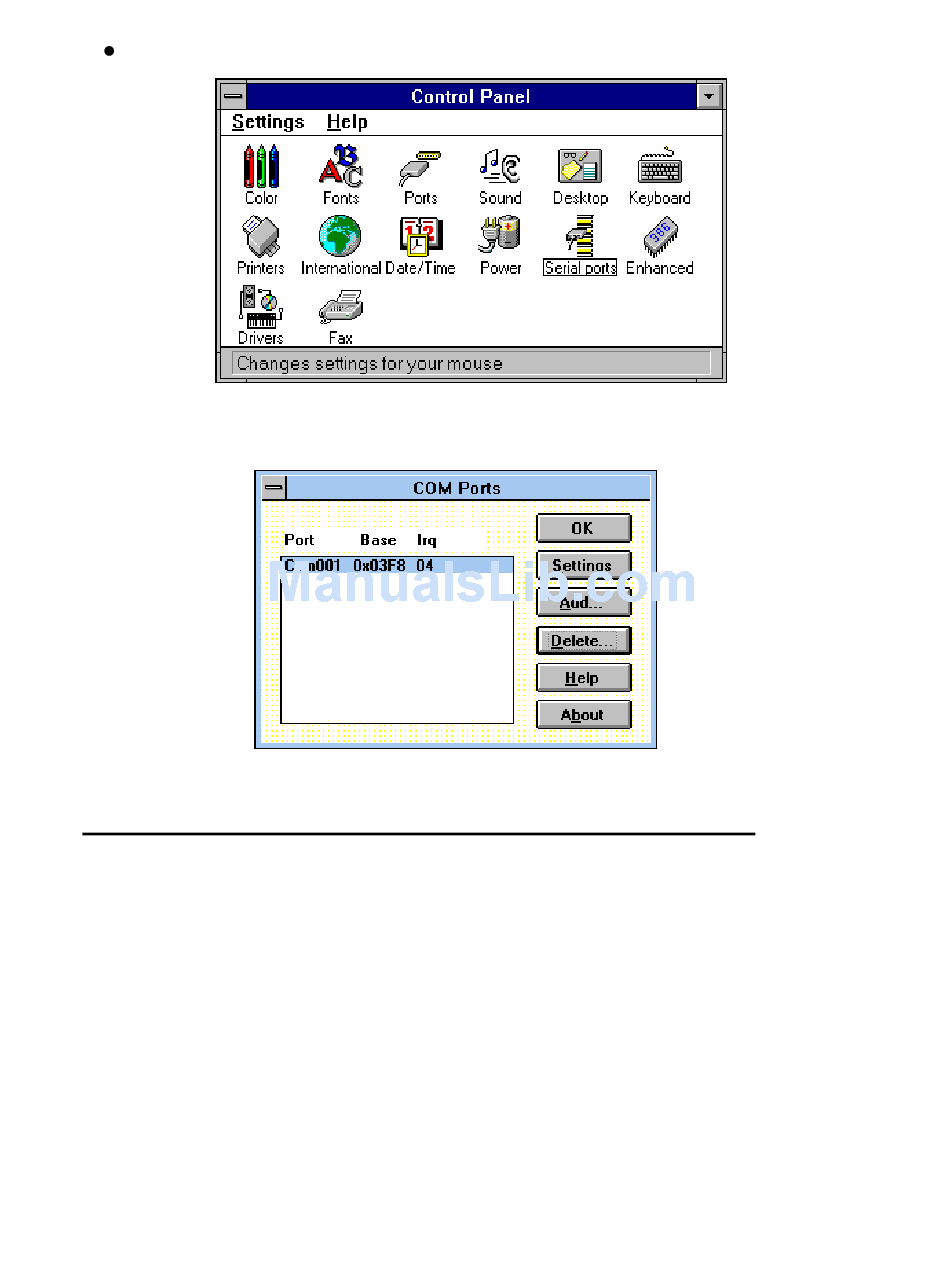

Click on Serial Ports:
The following dialogue will be displayed:

Adding an PCI Photon 4 Port RS232 Serial Card.

For each port on the Photon 4 Port RS232 card we need to
ADD a port and fill in the following 7 settings in the order given.
Default values for the communications settings are given
whenever the ADD button is used, 9600 baud, no parity, 8 data
bits and 1 stop bit.
Chapter 3 Page 15
