SET COMMUNICATION:

This section define the fundamental communication parameters of two buses, EtherCAT and
DeviceNet.
By Pressing the "Set Communication" button from the main window for SW67E09 (Fig. 2)
the window "Set Communication" appears (Fig. 3).
The means of the fields for "EtherCAT Slave" are:
In the field "Revision Number" the revision number of the converter is defined;
In the field "Slave Name" the name of the converter is defined;
In the field "Node Address" the ID of the converter is defined.
The means of the fields for the "DeviceNet Master" section are:
In the field "ID Device" the address for the DeviceNet Master is defined;
In the field "Baudrate" the velocity of the DeviceNet Master bus is defined.
The means of the fields for "Ethernet" are:
In the fields "IP Address" the IP address for Ethernet side of the converter is defined;
In the fields "SubNet
defined;
In the fields "Gateway" the default gateway of the net is defined. This feature can be
enabled or disabled pressing the Check Box field. This feature is used for going out of
the net;
In the fields "DNS" the IP address of the DNS server is defined
ADFweb.com S.r.l.
Mask" the SubNet Mask for Ethernet side of the converter is
User Manual EtherCAT Slave / DeviceNet Master
Document code: MN67E09_ENG

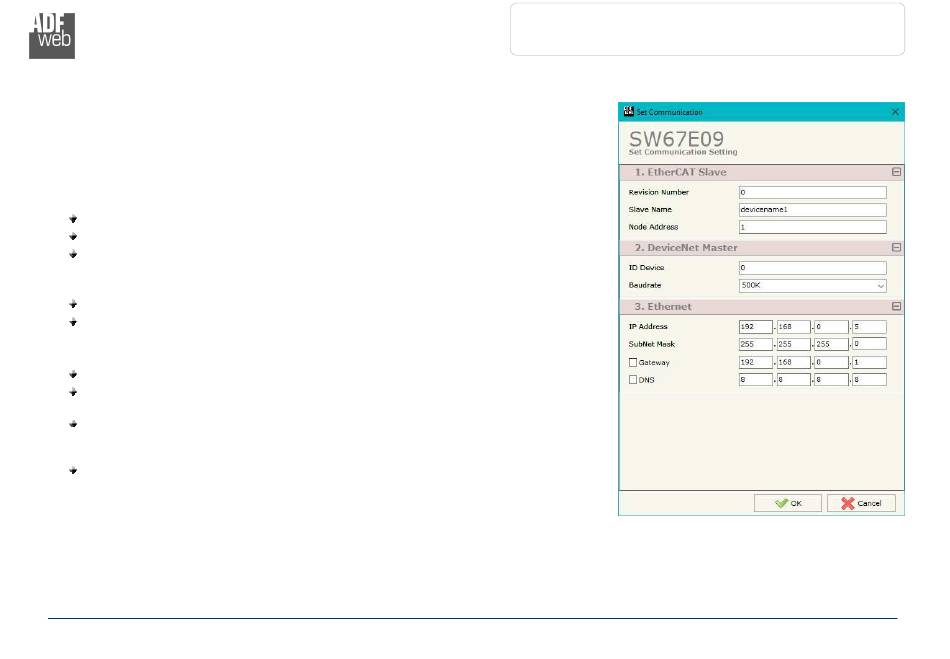

Figure 3: "Set Communication" window
