DEVICENET NETWORK:
By pressing the "DeviceNet Network" button from the main window for SW67E09 (Fig. 2) the window "DeviceNet Network" appears (Fig.
5).
The data of the columns have the following meanings:
In the field "ID" the ID of a slave DeviceNet device is defined;
In the field "N BYTE IN" the number of input byte of the slave DeviceNet is defined;
In the field "N BYTE OUT" the number of output byte of the slave DeviceNet is defined;
In the field "Mnemonic" is possible to insert a description. It isn't necessary compiling this field, is only a label.

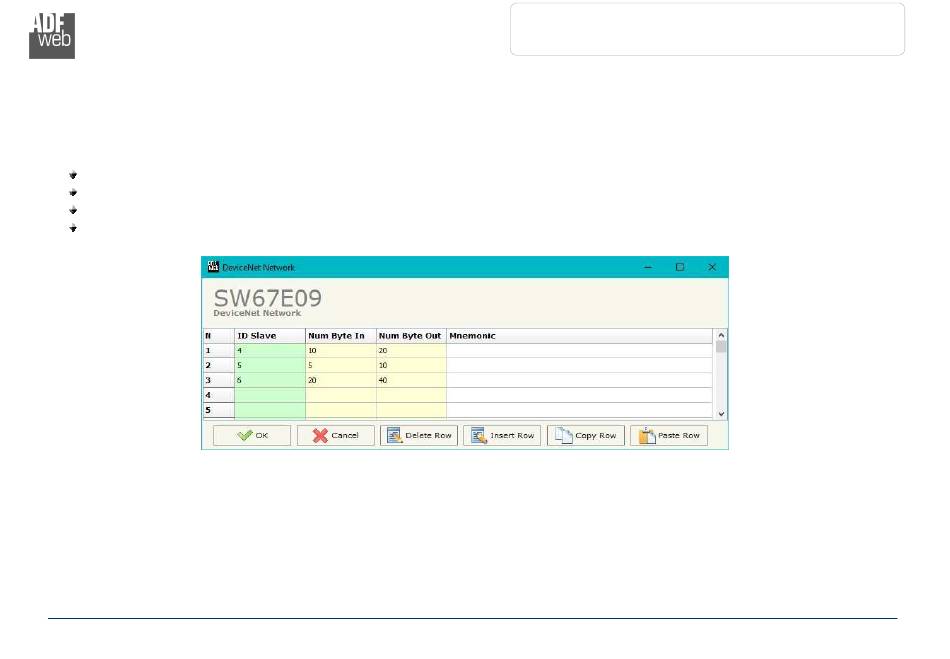

Figure 5: "DeviceNet Network" window
