PCI Quad RS232

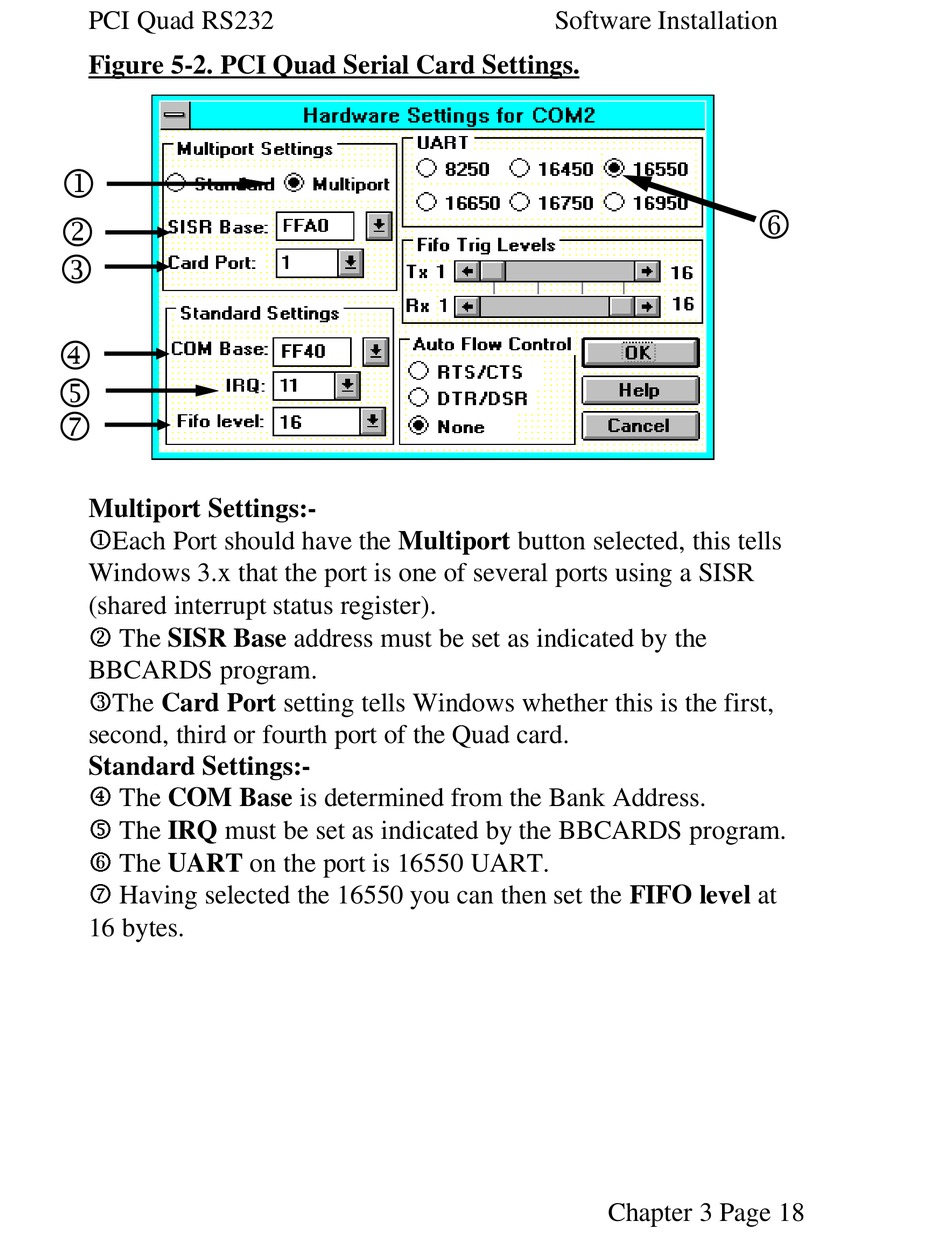

Figure 5-2. PCI Quad Serial Card Settings.
j
k
l
m
n
p
Multiport Settings:-
j
Each Port should have the Multiport button selected, this tells
Windows 3.x that the port is one of several ports using a SISR
(shared interrupt status register).
k
The SISR Base address must be set as indicated by the
BBCARDS program.
l
The Card Port setting tells Windows whether this is the first,
second, third or fourth port of the Quad card.
Standard Settings:-
m
The COM Base is determined from the Bank Address.
n
The IRQ must be set as indicated by the BBCARDS program.
o
The UART on the port is 16550 UART.
p
Having selected the 16550 you can then set the FIFO level at
16 bytes.
Software Installation

Chapter 3 Page 18
