10

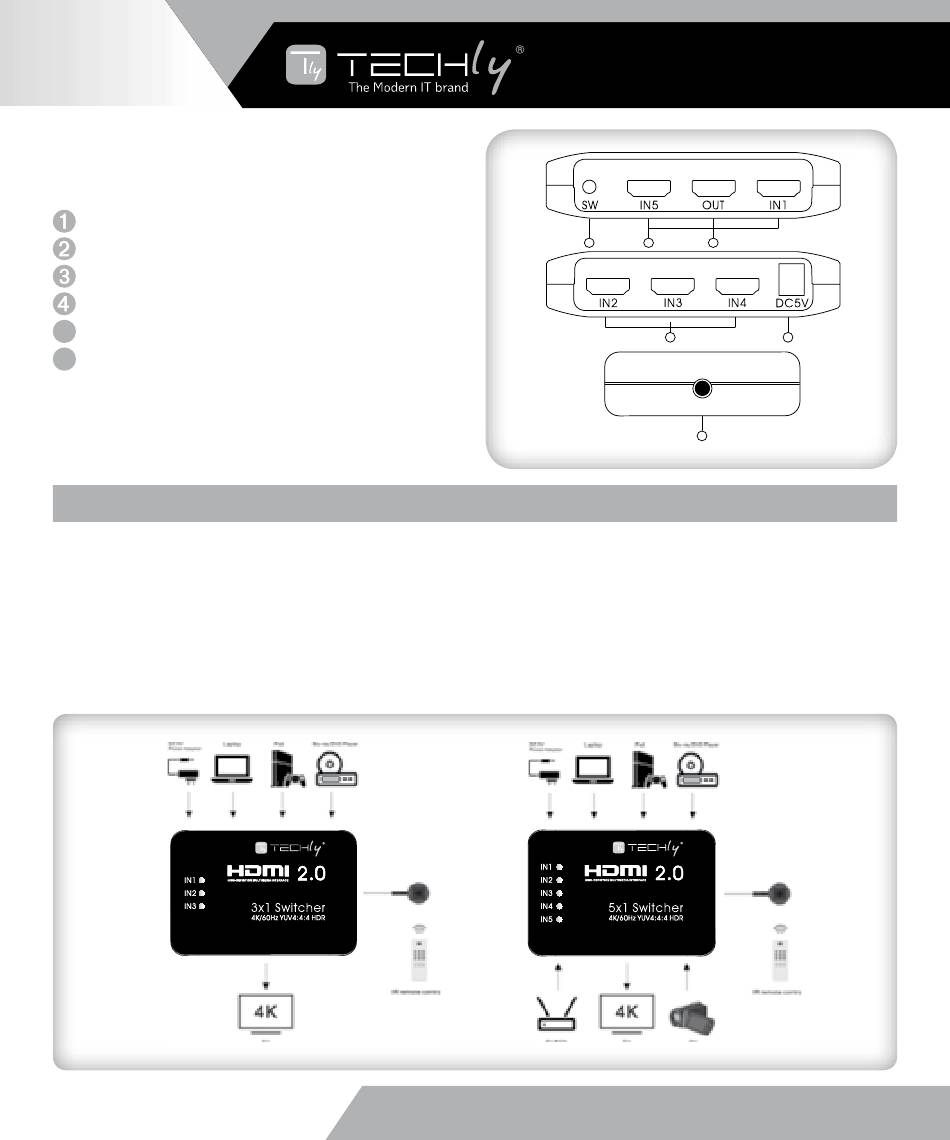

HDMI Switch 5x1:
Cycle switch input key
HDMI Input Ports
HDMI Output Port
HDMI Input Ports
5V DC power input
5
Infrared receiving port
6

cONNectiON DiAgRAM

1. Connect the source device (computer, DVD, game console, etc.) to the IN1 to IN3
interface of the switcher using the HDMI2.0 version HDMI cable.
2. Connect the display device to the OUT interface of the switcher using the HDMI 2.0
version HDMI cable
3. Connect the switch to the power supply
4. Switch the switch to a favorite source.
WWW.TECHLY.COM
HDMI2.0 SWITCH 3/5WAYS
4K@60Hz HDR YUV 4:4:4
1 2 3
4
IR
6
5
