Dear Customer,
Thank you for purchasing this product. For optimum performance and safety, please
read these instructions carefully before connecting, operating or adjusting this product.
Please keep this manual for future reference.
SAFETY NOTES
INTENDED USE
We do not permit using the device in other ways like
described in this user's manual. Use the product only
in dry interior rooms. Not attending to these
regulations and safety instruction might cause fatal
accidents, injuries, and damages to persons and property. The
manufacturer/supplier assumes no liability for damages caused by
failure to comply with the intended use.
C A U T I O N
RISK OF ELECTRIC SHOCK
DO NOT OPEN
service is required. Disconnect the product from mains and other
equipment if a problem should occur. Do not expose the product
to water or moisture.
• Your product is not a toy and is not meant for children, because it contains small
parts which can be swallowed and can injure when used inappropriately!
• Please install the system and devices attached to it in a way that persons cannot be
injured, or objects not be damaged for example by dropping or stumbling.
• Please remove the packing materials, because children may cut themselves on
them while playing.
• Furthermore, there is a risk of swallowing and inhalation of incidentals and
insulating material.
• In order to avoid fire, electric shock or product damage, please keep the product
away from rain, moisture or any other liquid.
• All parts should keep away from shaking sharply, no collision, knocking, or falling
down to avoid damage.
• When you unplug the power adapter, please extract the plug gently without pulling
the cable.
• Please power off when it's not in use and unplug the power adapter if does not in
use this produc for long time.
• Do not open the housing or modify the module.
• Put product in dry and ventilated place for normal heat dissipation.
• Keep product away from strong static and magnetic environment.
INTRODUCTION
IDATA HDMI2-4K4EARC is a four-input HDMI switch that connects 3 HDMI devices and
one ARC device/soundbar; two outputs: one eARC TV and one audio only. Reliably output
HDMI source signals to HDMI output, supporting eARC function; EARC (Enhanced Audio
Return Channel) allows you to transmit an audio signal in the original full resolution
through an HDMI cable and reproduce the best audio without compromise.
PRODUCT FEATURES
• Work for SONOS ARC/BOSE 500/BOSE 700 and ANY eARC/ARC AVR and Soundbar
• HDMI 2.0b, HDCP 2.2 compliant
• Up to 4K60 RGB/YCBCR 4:4:4 8bit 18Gbps
• HDMI Audio Formats: PCM 2.0, LPCM 5.1/7.1, Dolby Digital, Dolby Digital plus, Dolby
True HD, Dolby Atmos, DTS 5.1, DTS ES 6.1, DTS HRA, DTS HD Master, DTS:X
• HDR, HDR10, HDR10+, Dolby Vision pass through
• 4 inputs can connect 3 HDMI source devices and one soundbar/ARC device
(Connect to Soundbar)
• eARC/ARC from HDMI out1 pass through to eARC/ARC HDMI port
• eARC/ARC from HDMI out1 extract to HDMI out2 audio only port (Connect to Legacy
AVR)
HARDWARE INSTALLATION
1. Connect the signal source to the HDMI input port using an HDMI cable
2. Connect the earc soundbar to the earc input port using and HDMI cable
3. Use the HDMI cable to connect the eArc TV to the HDMI output 1 port
4. Use an HDMI cable to connect the Audio equipment to the HDMI output 2 port
5. Connect the power adapter
To reduce risk of electric
shock, this product should
ONLY be opened by an
authorized technician when
WITH EARC/ARC AUDIO SPLITTER

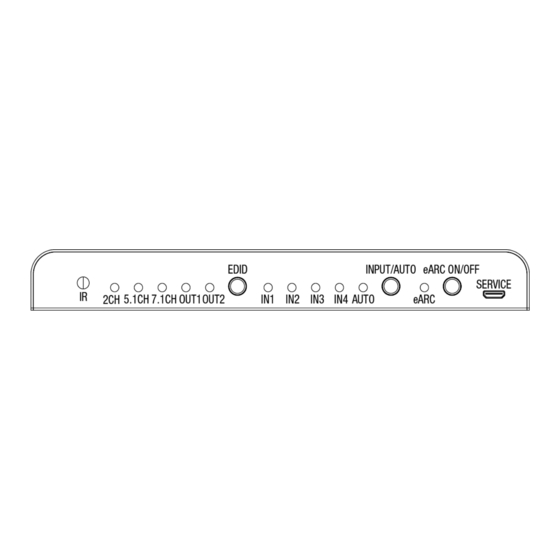

PANEL DESCRIPTIONS
1. Infrared Red Sensor for Remote
Control HDMI
2. 2.0CH Audio Channel LED Indicators
3. 5.1CH Audio Channel LED Indicators
4. 7.1CH Audio Channel LED Indicators
5. Out1 LED Indicators
6. Out2 LED Indicators
13. Power Input port
14. HDMI Input ports
15. Earc (soundbar) input port

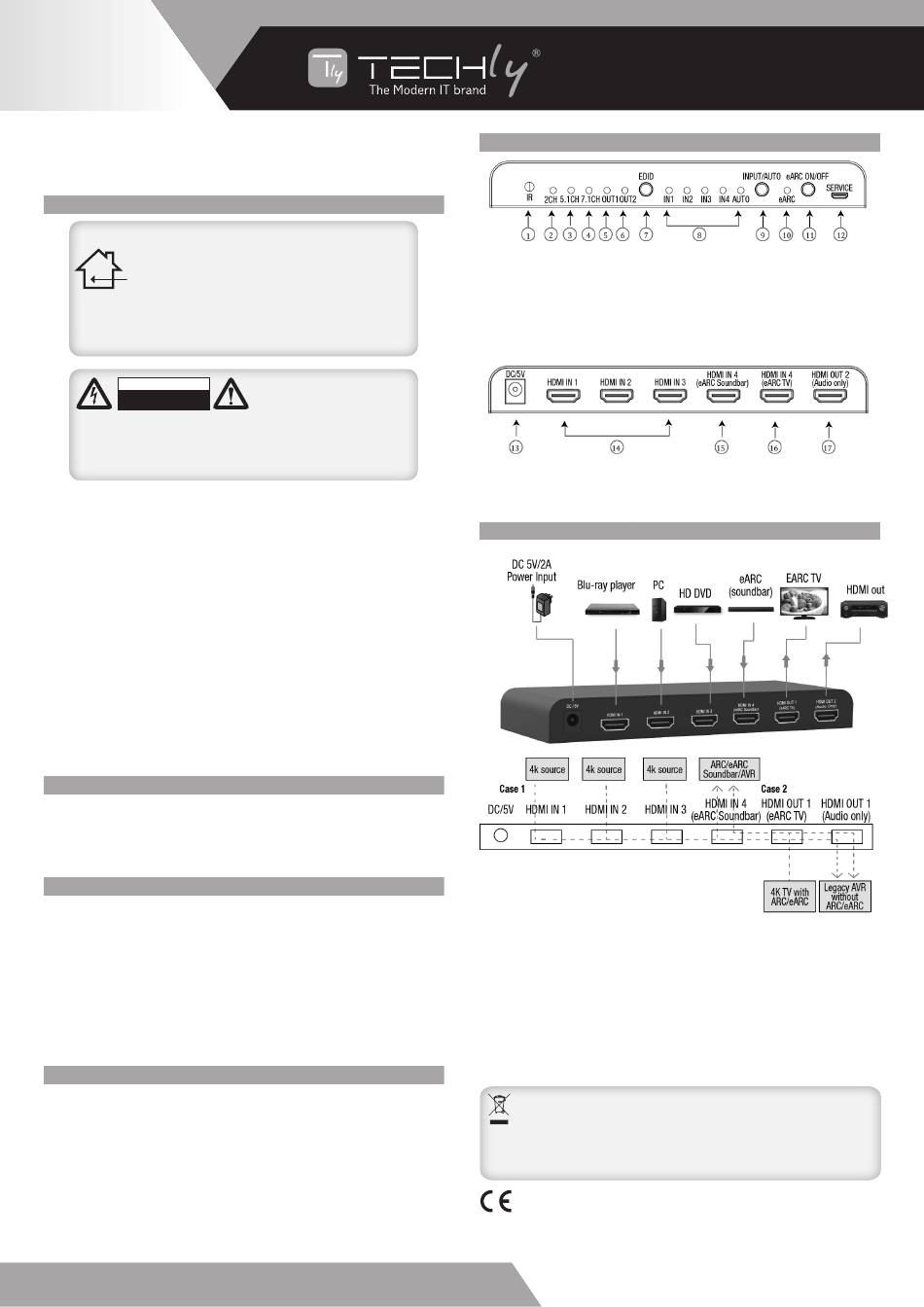

CONNECTION DIAGRAM
Case 1: 4K source video output to 4K TV, audio can output to ARC/eARC Soundbar/AVR
and Legacy AVR HDMI input.
Case 2: TV plays streaming content like Netflix or Roku, TV ARC/eARC audio output to
ARC/eARC Soundbar/AVR and Legacy AVR HDMI input.
In compliance with EU Directive WEEE this product is marked with this
symbol. It means that used electrical and electronic products should not be
mixed with general household waste.
There is a separate collections system for these products in compliance with
WEEE directive, otherwise contaminative and hazardous substances can
pollute the environment.
With the CE sign, Techly
®
ensures that the product is conformed to the basic
European standards and directives.
WWW.TECHLY.COM
4X1 4K@60HZ HDMI SWITCH
7. EDID Switch button
8. HDMI Input LED Indicators
9. HDMI Input Switch button
10. Earc LED Indicators
11. Earc switch button
12. USP Upgrade port
16. HDMI OUT1 (earc TV)
17. HDMI OUT2 (AUDIO Only)
