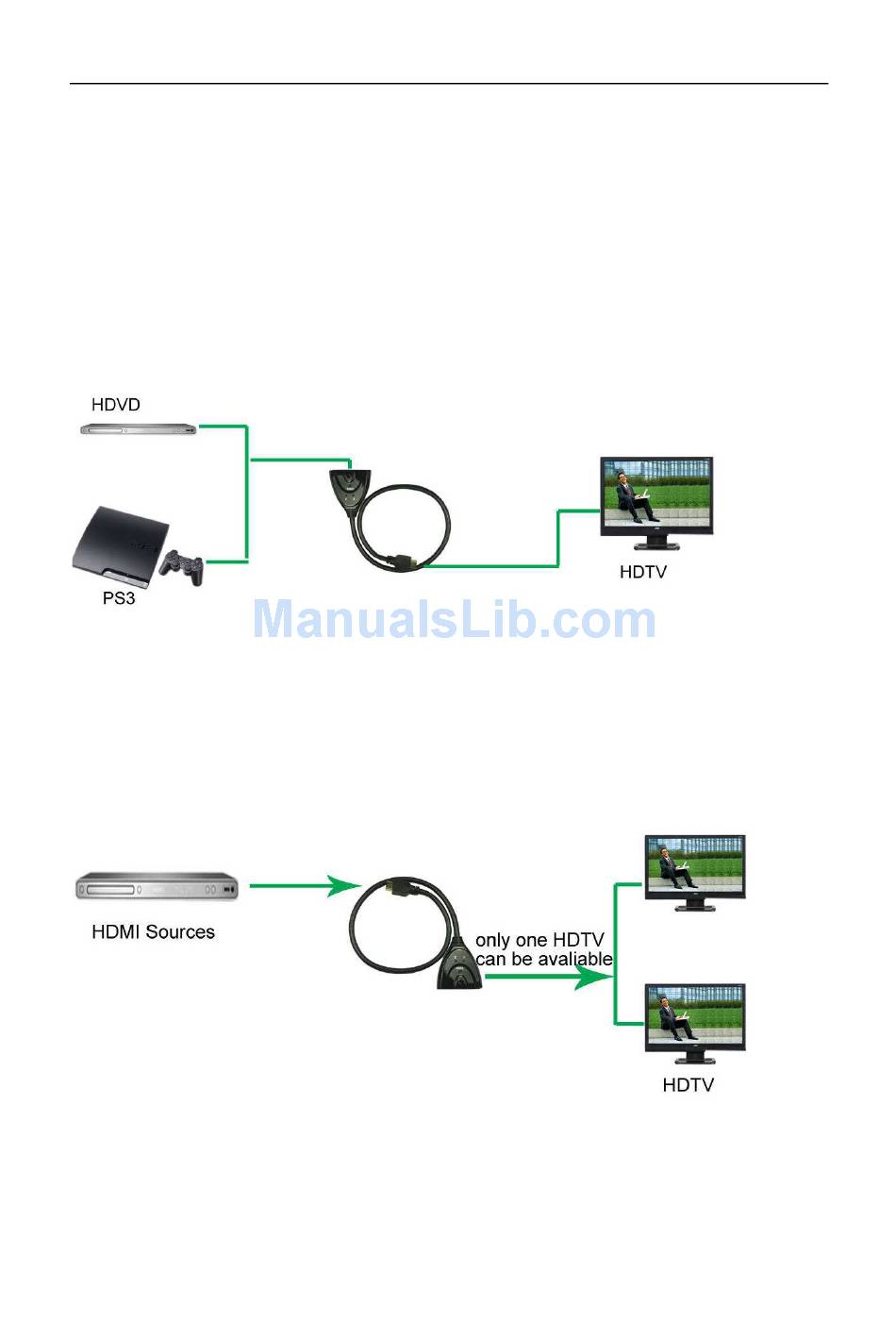

5.1 CONNECTION DIAGRAM
1， You can connect the HDMI sources to the two HDMI inputs and connect the
HDMI display to the HDMI male port. Then, press the "Select" button to select
one input source from two.
2, You can also connect the HDMI Displays to the two HDMI inputs and connect
the HDMI sources to the HDMI male port. Then, press the "select" button to select
one HDMI display from two.
HDMI Bidirectional Switch
３
P/N 2035
