Summary of Contents for Feelworld PVR733

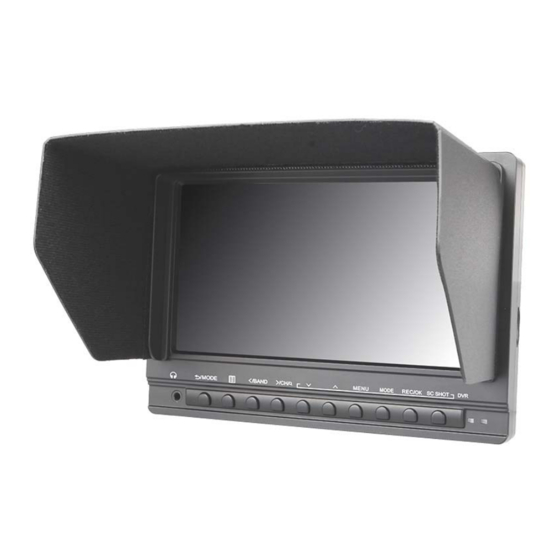

- Page 1 32 Channel Auto Searching Wireless FPV Monitor with Dual Receiver LCD Monitor（Built-in DVR） User Manual...
- Page 2 Product description： Wireless FPV monitor with dual receiver (built-in DVR) LCD monitor is a new multi-function product; adopts advanced integrated circuits and high-quality new HD LCD monitor. It integrates a high-sensitivity dual 5.8GHZ AV wireless receivers, Aerial receiver, Video recorders, high-definition monitor, not only can conduct on-site wireless receiver, video, but also can seamless video, real-time image snapping and video playback.
- Page 3 Product Feature: ● Dual antenna receiver, high-sensitivity, strong anti-interference ● Set DVR, 5.8G wireless receiver, a monitor for the integration of multi-functional combination machine, compact, suitable for a variety of purposes ● Real-time image snap and keep the beautiful memory ●...
- Page 4 CONTENTS 1. Product description ------------------------------------ 4 2. DVR (Video) Operation instruction-------------- 3. Wireless transmission receive operation ---- 18 4. Operation instructions -------------------------------- 20 Sun shade installation --------------------------------- 27 6. Power Supply ----------------------------------------------- 29 Parameters ------------------------------------------------- 32 Trouble shooting ---------------------------------------- 33...
- Page 5 1. Product description 1.1 Front view: 1、Video Indicator 2、Power Indicator ★ 3～8 DVR operation button 3、SC.SHOT: Real-time images snapping 4、 REC/OK: Recording start, stop/ function confirm 5、 MODE: Mode key to enter/ exit the playback mode 6、MENU: Menu key to enter/ exit the DVR (Video) menu mode 7、...
- Page 6 ：Multi button for UP /Channel Selection /Search 9、 / Volume up. Press this button for channel selection, long pressing for channel auto searching. In OSD for “UP” button, Volume up 10、 : Multi button for DOWN /Channel Selection /Volume down. Press this button for channel selection from “A、B、E、F”.
- Page 7 1.2 Rear View: 1、 VIDEO OUT: Composite video signal output 2、 HDMI IN: HD HDMI signal input 3、 VIDEO IN: Composite video signal input 4、 USB data upgrade port 5、 AUDIO IN: Audio signal input 6、 Power switch “ ” Indicates that the power is turned on, “○”means disconnect the power 7、...
- Page 8 11、12：it is a screw hole for battery plate, when you use battery external,11 is“+”，12 is“-”,Copper Screw size:M3×9.5mm A：Battery plate locking screw hole, 4 holes, Copper Screw size: M3×5.0mm B: 75×75mm VESA, Screw size: M4×5.0mm 1.3 TF Card Slot：...
- Page 9 2. DVR (Video) Operation instruction: When the monitor's "VIDEO-IN" and "AUDIO-IN" has access to the appropriate signals or "RF" wireless receiver transmitter has been reliably received video signal transmitted over and check the TF card has been reliably into the slot (monitor the HDMI input, there is no video function).
- Page 10 ： Recording start The monitor input signal selection "DVR" (video signal) channel, the monitor screen will display the “RF” channel of the screen, press the "REC / OK" button will appear when the red flashing meaning that start recording begins, the DVR default to RF channel, if you would like to “VIDEO”...
- Page 11 Under VIDEO or RF, Press the “SC.SHOT”, then can be store the real-time images（make sure TF card insert）, if want to review these images, please press “MODE” to enter the ,then use ” to select the folder to see them. 2.5 DVR Menu Operation Video setting：...
- Page 12 Loop recording SD card is full, it will overwrite the oldest files cycle, and the system uses a unique algorithm, SD card DVR longer life than ordinary Motion Detection After opened, the moving object is detected, it will automatically record. Date Stamp Date and time can be superimposed onto the video, you also can not stack.
- Page 13 Record Audio You can choose to record Audio directly to a file or not record. Quality The higher the image quality, image clearer, the file will be bigger. Motion Detection Sensitivity It can be adjusted according to the actual situation.
- Page 14 Power on auto recording Advanced Settings Continuous twice press the "MENU" button to enter the MENU in the advanced Settings option Format First use, in order to optimize the file system, VCR will Require customers to format again. Formatted files will be lost.
- Page 15 Press the REC/OK “button again, choose cancel or confirm whether the memory card is formatted Date/time "REC / OK" button to confirm selection and adjustment, " " keys to change the date or time, "MENU" to exit Language Press the "REC / OK" button to confirm, with the “ ”...
- Page 16 TV Mode Output formats PAL / NTSC for option depends on country to set Note: If after set the TV output formats, image cannot be synchronized, or even can't bring up the DVR menu, is the DVR output formats are not synchronized to the monitor format due, if this occurs, you can call up the monitor menu, enter the menu of "function"...
- Page 17 Default Setting Restore the factory default Settings Playback menu Settings Press the "MODE" button, in the top left of the screen will display , press the DVR menu key "MENU", and enter the playback menu settings. (At this point if you press the "REC / OK" button to enter the playback, unable to enter the playback menu settings) Delete, delete the unwanted content.
- Page 18 Delete single Delete All Protection, to save the contents of the lock protection to prevent misuse deleted and lost...
- Page 19 Wireless transmission receive operation Take the form a complete set of the antenna assemble on the unit’s antenna input ports, the assembly should be secured, locked on the buckle. 3.1 Channel selection Wireless transmitter channel and receiver channel must be strictly consistent;...
- Page 20 (Frequency range of each region are different, please check the unit’s paste instructions). Note! During select channels must be supporting the transmitter 3.2 Auto Searching: Confirm that the transmitter has entered a normal working condition and then turn on the monitor, press “ ”...
- Page 21 “RF” signal input. “BAND: X CH: X” will display on the top left corner of the screen, press “ ” to switch channel A/B/E/F. Press “ ” to select 1~8 channels. If the time transmitter has worked, receiver and transmitter frequency in agreement, the receiver will receive the signal sent from the transmitter and displayed on the monitor Note: The effect of receiving the distance has a great...
- Page 22 4.1 Button instructions： ：Multi button for UP /Channel Selection /Search / 1、 Volume up: Press this button for channel selection, long pressing for channel auto searching, In OSD for “UP” button, Volume up. ：Multi button for DOWN/Channel selection/Volume 2、 down: Press this button for channel selection from “A、B、E、 F”, In OSD for “DOWN”...
- Page 23 Operation Press button 4 ( )to select HDMI, video, RF, DVR input signals Select HDMI, HD multimedia digital signal from the HDMI input port; Select the video, ordinary video signal from the video input port; Select RF, 5.8 G RF input signal directly, image display more clearly.
- Page 24 Color Brightness: To adjust the image's brightness. ※ ※ Contrast: To adjust the brightest and darkest ratio of the image, please note the sense of picture when adjust, proportion too large or small, will make the picture lose the color of showy. ※...
- Page 25 ※ Language：Languages for OSD as below: English、简体中文、Français、Italiano、Deutsch Español、 日本語、 한국의、 Pycc、 Portugues ※ H Position：To adjust the OSD position in horizontal. ※ V Position：To adjust the OSD position in vertical. ※ OSD Timeout：To adjust the clock. ※ Transparent：To adjust the level of transparent.
- Page 26 Function ※ Reset：Back to original setting. ※ System：To adjust color video format ※ Display Ratio：To change the display ratio 16:9/4:3. ※ Screen Markers：To adjust screen marker（off，96%， 93%，90%，85%，80%） ※ Centre Markers： To set centre mark (cross mark) display ※ Camera : Use the Canon 5 d II or similar camera, the monitor video has real-time images.
- Page 27 Sound ※ Volume: To adjust the volume. ※ Focus: As an auxiliary functions (in HDMI mode ) when used as the camera viewfinder. ※ Ver.1.0：Software version number...
- Page 28 5. Sun shade installation 5.1 Positive parallel alignment of the sun shade and monitor, the projection of the sun shade hanging claw at the monitor sun shade slot (see the monitor front view ). 5.2 The sun shade’s hanging claw and the monitor’s sun shade slot should be aligned around inserted balanced to slide down.
- Page 29 5.3 Put the corresponding sun shade with paste tape, follow the image and paste on the fixed frame. 5.4 Assembled monitor with sun shade.
- Page 30 6. Power Supply There are three versions for power supply: 6.1 Supply by city electricity with power adapter When the monitor connect the electricity by DC power adapter, red light is illuminated, means is charging, after fully charged, the charging indicators will all be out. When the power switch is on “...
- Page 31 Please use the M3×9.5mm copper screw to fasten the two power output cables into NO.11.12 at the back of monitor. When screwing, please pay attention to the polarity, 11 is +; 12 is -. Then match the 4 screw holes of plates to A point at the back of monitor, And use M3×5.0mm copper screw to fasten the plate and monitor.
- Page 32 Three types of batteries corresponding to the upper three slots F970 LP-E6 Remark: Different specifications of the battery, capability is different. The working time for the monitor will be different. Higher capability (working time) will be longer. 6.5 Li-ion Battery ●The working temperature of Li-ion battery is -20~60℃, please don’t use battery in the place with temperature too low or to high.
- Page 33 ●please be placed in a cool place to weaken the perspiration speed of battery, if you don’t use the battery for long time. ● Please charge power stored in the battery to prevent self-discharge of excessive lead to excessive discharge damage if you don’t use the battery for long time.
- Page 34 DVR Recording Resolution D1(720×576)VGA(640×480)QVGA(320×240) DVR support TF card maximum 32G DVR Recorded Video Format 5.8 G broadband FM audio video synchronization receiving (other frequencies optional) RF Receiving Frequency 32 channel auto searching (different frequency range for different region, see specific of the machine’s paste instructions) RF Wireless Receiving typical value -90dBm...
- Page 35 enter into the monitor "Function" menu for "System" option to select the corresponding standard. 8.2 NO picture after put on the power Check signal cable contact are in good condition, a monitor is ① synchronized with the input signal, and can press the give it a try.
- Page 36 If customer change the receiving antenna, please note that ③ must be matched with the transmitter, otherwise may cause receiving sensitivity is low, even can't receive signals ■ Remark: If there are still other problems, please contact with our related deals. ★...
