Page 1: User Manual
32 Channel Auto Searching Wireless FPV Monitor with Dual Receiver LCD Monitor User Manual... -
Page 2: Product Description

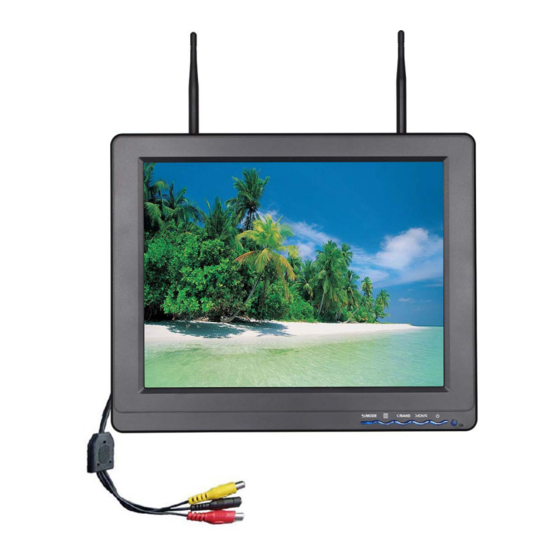

Product description： Wireless FPV monitor with dual receiver LCD monitor is a new multi-function product; adopts advanced integrated circuits and high-quality new HD LCD monitor. It integrates a high-sensitivity 32channel and dual 5.8GHZ AV wireless receivers. It is with Aerial receiver, high-definition monitor, easy to operate, which can be used for FPV ground station, security monitoring, baby monitors, photography viewfinder, construction site video surveillance,... -
Page 3: Table Of Contents
Product Feature ●Dual antenna receiver, high-sensitivity, strong anti-interference ●5.8G wireless receiver, a monitor for the integration of multi-functional combination machine, compact, suitable for a variety of purposes ● -90dbm high-sensitivity,5.8G wireless receiver,32 Channel Auto Scan, effectively avoid signal interference ●Channel auto scan and channel choice of menu buttons function, improve the accuracy and convenience of channel choice ●Aerial video receives no blue screen ●High brightness, Contrast, Anti-glare screen with a sun shade,... -
Page 4: Product Description
1. Product description 1.1 Front view: 1. Power Indicator ：ON/OFF Key ：Multi button. In VIDEO/HDMI/DVI/VGA input state, Volume up button. In RF state，long press this button for about 3 seconds to enter the channel auto scan. Press this button for Manual channel setting, to set channel 1~8CH In OSD, to select or set adjustment items and the increase adjustment of value button. - Page 5 ：Multi button In VIDEO/HDMI/DVI/VGA input state，volume down button. In RF state, Press button to enter the manual channel，to set BAND A/B/E/F transformation. In OSD, to select or set adjustment items and the decrease adjustment of value button. ：Menu Button ：Input signal selection or exit the menu.
-
Page 6: Wireless Transmits Receiver Operation
voltage range in 6 ~ 24 v qualified dc power supply. 2. HDMI IN:HD HDMI signal input jack 3. DVI IN: Digital video signal input jack 4. VGA IN:VGA signal input jack ：Stereo headphone output jack 6. Black DC jack, DC input 7.Red RCA jack：Analog audio signal input 8. - Page 7 2.1 Frequency band selection: Wireless transmitter channel and receiver channel must be strictly consistent; otherwise it will not receive a transmitter signal. This unit can auto searching for 32 receiver channels, also can accept simultaneously multi transmitters and receivers together work, to avoid co-channel interference Note! Channels must be supporting the transmitter 2.2 Auto Searching:...
- Page 8 2.3 Manual channel scan and setting: Confirm that the transmitter has entered a normal working condition. Press “ ” to turn on the monitor, press “ ” to select “RF” signal. Press “ ”button，“BAND:X CH:X” will display on the top left corner of the screen;...
-
Page 9: Operation Instructions
3. Operation instructions 3.1 Button instructions: ON/OFF Key Input signal switch button, in OSD for exit button. Menu key, under a signal input mode, pressing this button to pop up the menu, and the current menu and sub-menu item to confirm the adjustment Multi button, In different input state, it has different functions: In RF state... - Page 10 In RF State Manual adjustment to set BAND:A/B/E/F. Volume adjustment in RF state，need to press this button to confirm. When screen appears the volume adjustment, press this button to decrease the volume, press button to increase the volume. In VIDEO/HDMI/DVI/VGA state No menu is displayed，directly press this button to decrease the volume.
- Page 11 3.2 OSD Operation Instruction In PC（VGA）State Color : ※ Brightness: To adjust the Image brightness. ※ Contrast: To adjust the brightest and darkest ratio of the image, please note the sense of picture when adjust, proportion too large or small, will make the picture lose the color of showy ※...
- Page 12 Adjust : ※ Auto Config: To adjust automatically. If the auto-adjust does not satisfy your request, you can adjust manually. ※ H Position: To adjust the picture in horizontal. ※ V Position: To adjust the picture in vertical. ※ Phase: To adjust the phase. ※...
- Page 13 ※ H Position: To adjust the OSD position in horizontal ※ V Position: To adjust the OSD position in vertical ※ OSD Timeout: To adjust the clock ※ Transparent: To adjust the level of transparent Function: ※ Reset: Back to original setting ※...
- Page 14 In HDMI/DVI/VIDEO State Color (In HDMI/DVI/VIDEO state, color menu is different） In HDMI State In DVI State In VIDEO State ※ Brightness: To adjust the image brightness.
- Page 15 ※ Contrast: To adjust the brightest and darkest ratio of the image, please note the sense of picture when adjust, proportion too large or small, will make the picture lose the color of showy. ※ Saturation: To adjust color saturation. ※...
- Page 16 ※ V Position: To adjust the OSD position in vertical. ※ OSD Timeout: To adjust the clock. ※ Transparent: To adjust the level of transparent. Function: ※ Reset: Back to original setting。 ※ System: In VIDEO State to choose the color video Formats;...
-
Page 17: Parameters
4. Parameters: Panel Size TFT LCD 12.1 inch Panel Type TFT LCD Resolution 800×600×RGB ＝1440000 Pixels Backlight Dot Pitch 0.307575(H) x 0.3075(V) Display Ratio Brightness 330cd/㎡ Contrast 900:1 Response Time 30ms Viewing Angle 70°/70°(L/R) 50°/70°(U/D) Signal Input Video/ Audio/ RF/ HDMI/DVI/VGA Color System PAL NTSC SECAM 480i /480p /576i /576p... -
Page 18: Trouble Shooting
5. Trouble shooting 5.1 Only black-and-white image： ① Make the level of color Saturation, Brightness and Contrast is proper. ②Enter the menu item "Function", check whether the color system is consistent with the input video color system, can choose other system to check. - Page 19 5.5 Open the RF, no signal detected ① Transmitter is working properly or not. ② If transmitter frequency matches with the receiver frequency band ③ If customer change the receiving antenna, please note that must be matched with the transmitter, otherwise may cause receiving sensitivity is low, even can't receive signals.
