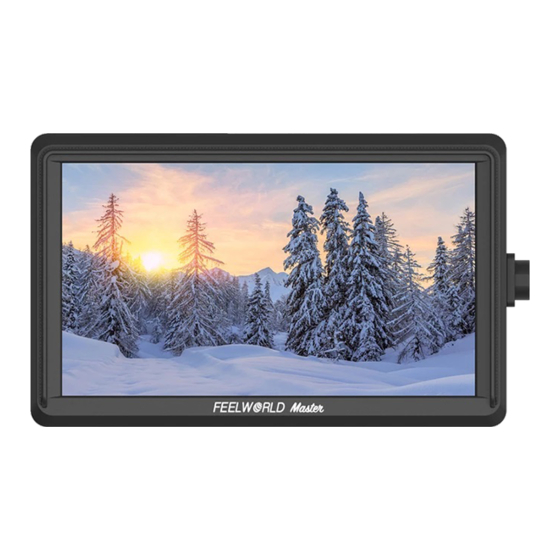

- Page 1 MA6P 5.5" Super Lightweight On-Camera Monitor Stabilizer Gimbal Best Partner Guide Manual Thank you for choosing Feelworld monitor. Please read this manual carefully before you use. 工艺...
-
Page 2: Table Of Contents
Contents Caring For Your MA6P Monitor What Should Be In The Box Product Description Button Instruction Power Input Port Instruction (bottom) Mount Points Port Instruction (left) Sunshade Menu Operation Instruction Menu Function Instruction Technical Parameters Trouble Shooting... -
Page 3: Caring For Your Ma6P Monitor
CARING FOR YOUR MA6P MONITOR Caring For Your MA6P Monitor • Do not attempt to disassemble the monitor. Doing so voids warranty. •Water damage is not covered by warranty, but taking the right precautions when a water event occurs can sometimes preserve unit functionality. -
Page 4: What Should Be In The Box
WHAT SHOULD BE IN THE BOX PRODUCT DESCRIPTION What Should Be In The Box Product Description DC OUT 8.4V DC OUT 8.4V USB UPGRADE USB UPGRADE • Front Panel and Back Panel • MA6P Monitor 144.0 27.5 144.0 27.5 • HDMI to Mini HDMI Cable •... -
Page 5: Button Instruction
PRODUCT DESCRIPTION PRODUCT DESCRIPTION • • Button Instruction Port Instruction (bottom) DC OUT 8.4V USB UPGRADE FW568&S55 144.0 Button Function when OSD is Function when OSD is displayed 20181206 DC OUT 8.4V: DC power output interface, polarity as the not displayed output power Decrease or adjust value of Decrease the volume... -
Page 6: Port Instruction (Left)
PRODUCT DESCRIPTION PRODUCT DESCRIPTION • • Port Instruction (left) Power Input 27.5 HDMI IN: V1.4, HDMI signal input, up to (1) The rear cover of the monitor is equipped with F970 and 4K@30Hz. E6dual-purpose battery plate, which is applicable to F970 series of batteries and E6 series of batteries. -
Page 7: Mount Points
PRODUCT DESCRIPTION PRODUCT DESCRIPTION • Mount Points (2) Tilt Arm Mounting The monitor secures to your camera using the included Tilt Arm (1) 1/4" Screw Lock Installation via shoe mount or 1/4"-20 thread. The Tilt Arm enables 180° of tilt for convenient monitoring at nearly any angle. A cold shoe The 1/4 screw lock can be installed on the monitor (bottom, on the Tilt Arm lets you secure equipment (like a microphone, right side). -
Page 8: Sunshade
MENU FUNCTION INSTRUCTION PRODUCT DESCRIPTION Menu Operation Instruction • Sunshade After correctly connect to the power supply, the indicator will turn (Red), press to turn on monitor power, the indicator will be Yellow, and then input HDMI signals, the indicator will turn Green from Yellow. - Page 9 MENU FUNCTION INSTRUCTION MENU FUNCTION INSTRUCTION Menu Function Instruction • Setting • Image English, 简体中文 , Español, Português, Language Français, Nederlands, Deutsch, 日本語 , 繁體中文 Pic. Mode Standard, Mild, User, Dynamic Aspect Ratio Just Scan, Panorama, Auto., 4:3, 16:9, P2P Brightness 0~100 White Screen, Blue Screen, Red Screen,...
- Page 10 MENU FUNCTION INSTRUCTION MENU FUNCTION INSTRUCTION • Zoom Anamorphic Off, 1.3X, 2.0X, 2.0X MAG, User Anamorphic nX 1.20X~2.00X Nine Grid Zoom Off, On Check Field Off, Mono, Red, Green, Blue Zoom Off, 4X, 9X, 16X Histogram Off, On Zoom Zoom Mode False Colors Off, On Off, Mode1, Mode2...
- Page 11 MENU FUNCTION INSTRUCTION TECHNICAL PARAMETERS Technical Parameters • Custom Button Setting F1~F3 ★ F1/ F2/F3: Center Marker, Safe Frames, Check Field, Focus Panel Size 5.5" IPS Assist, Aspect Ratio, Image Flip, Image Freeze, Histogram, Resolution 1920x1080 pixels False Colors, Over Exposure, Embedded Audio, Nine Grid, Dot Pitch 0.0639 (W) x 0.0213 (H) mm Zoom, Anamorphic.
- Page 12 TECHNICAL PARAMETERS TROUBLE SHOOTING Trouble Shooting 480i/576i/480p/576p 720p (60/59.94/50/30/29/25/24/23.98) • Only black and white or monochrome picture display: 1080i (60/59.94/50) 1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ HDMI Support Format ① please check saturation, brightness & contrast adjustment. 23.98sF) 4K UHD 3840×2160p (30/29.97/25/24/23.98 Hz) ② Please check "Check Field" is in black, white or monochrome 4096×2160p (24Hz) image or other condition.
- Page 13 TROUBLE SHOOTING ■ If there are still other problems, please contact with our related technologists. ★ As we are improving product features and product performance, specifications are subject to change without prior notice.
