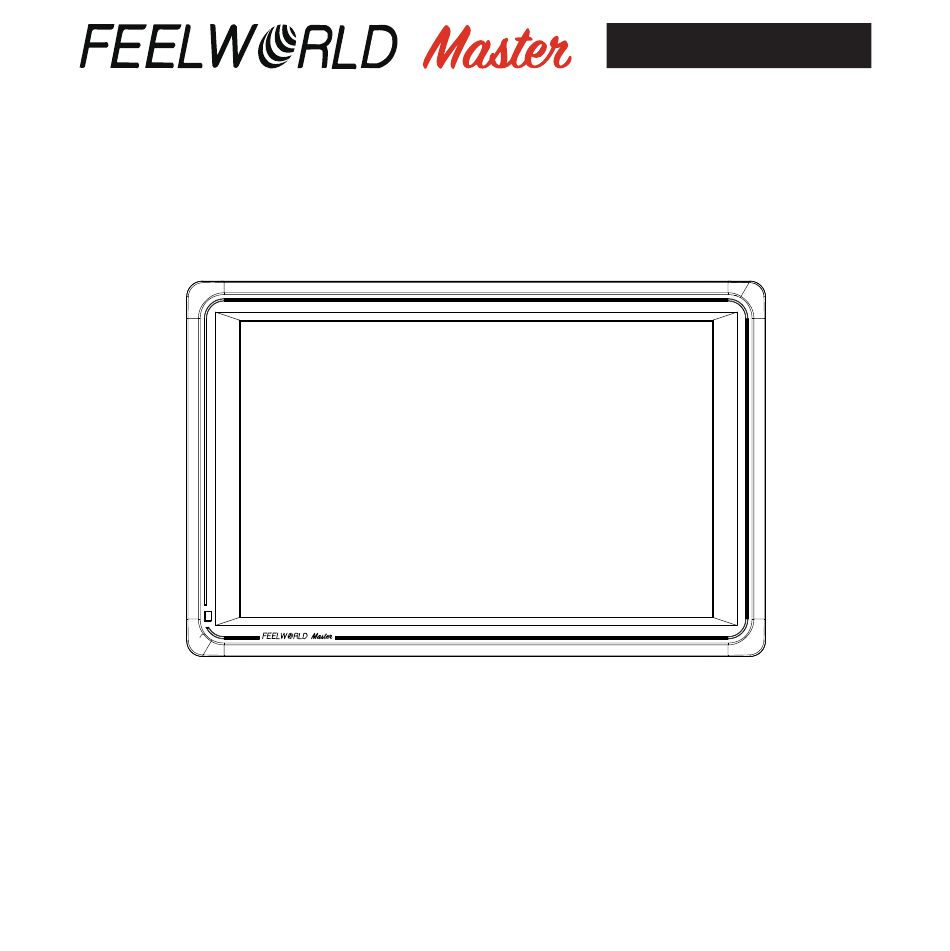

- Page 1 MA7U 7" 2200nit Ultra Bright Daylight Viewable On-Camera Monitor Guide Manual Thank you for choosing Feelworld monitor. FW279S Feelworld master图纸 20181207 Please read this manual carefully before you use.
-
Page 2: Table Of Contents
Contents Caring For Your MA7U Monitor What Should Be In The Box Product Description Front Panel/ Button Instruction Rear Panel Instruction Battery Plate Menu Operation Instruction Menu Function Instruction Technical Parameters Trouble Shooting... -
Page 3: Caring For Your Ma7U Monitor
CARING FOR YOUR MA7U MONITOR Caring For Your MA7U Monitor • Do not attempt to disassemble the monitor. Doing so voids warranty. •Water damage is not covered by warranty, but taking the right precautions when a water event occurs can sometimes preserve unit functionality. -
Page 4: What Should Be In The Box
What Should Be In The Box Product Description • Front Panel/ Button Instruction • MA7U Monitor • HDMI to Mini HDMI Cable • SDI Cable • D-Tap Cable • Cold Shoe Mount • Carrying bag • Manual FW279S Feelworld master图纸 20181207... -
Page 5: Rear Panel Instruction
PRODUCT DESCRIPTION PRODUCT DESCRIPTION • Rear Panel Instruction FW279S Feelworld master图纸 Function when OSD is not 20181207 Button Function when OSD is displayed displayed Custom button 1 Custom button 2 Decrease or adjust value of Volume reduction selected parameter Increase or adjust value of... -
Page 6: Battery Plate
PRODUCT DESCRIPTION PRODUCT DESCRIPTION • Battery Plate ③ HDMI-OUT: HDMI signal output ④ HDMI-IN: HDMI signal input There is a battery plate installed on the back of the monitor, ⑤ F970 battery plate (Standard) you can assemble the corresponding battery to power the ⑥... -
Page 7: Menu Operation Instruction
MENU OPERATION INSTRUCTION PRODUCT DESCRIPTION Menu Operation Instruction Battery Plate Model Picture Battery Camera Model D28S for D55 554S D54SE D40 Panasonic DV D35 D33 D32 D28 D25 After correctly connect to the power supply, the indicator will D22 series turn (Red), press to turn on monitor power, the indicator will be Yellow, and then input HDMI signals, the indicator will turn... -
Page 8: Menu Function Instruction
MENU FUNCTION INSTRUCTION MENU FUNCTION INSTRUCTION Menu Function Instruction • Setting • Image English, 简体中文 , Español, Português, Language Français, Nederlands, Deutsch, 日本語 , 繁體中文 Pic. Mode Standard, Mild, User, Dynamic Aspect Ratio Just Scan, Panorama, Auto., 4:3, 16:9, P2P Brightness 0~100 White Screen, Blue Screen, Red Screen,... - Page 9 MENU FUNCTION INSTRUCTION MENU FUNCTION INSTRUCTION • Zoom Anamorphic Off, 1.3X, 2.0X, 2.0X MAG, User Anamorphic nX 1.20X~2.00X Nine Grid Zoom Off, On Check Field Off, Mono, Red, Green, Blue Zoom Off, 4X, 9X, 16X Histogram Off, On Zoom Zoom Mode False Colors Off, On Off, Mode1, Mode2...
-
Page 10: Technical Parameters
MENU FUNCTION INSTRUCTION TECHNICAL PARAMETERS Technical Parameters • Custom Button Setting F1~F2 ★ F1/ F2: Center Marker, Safe Frames, Check Field, Focus Panel Size 7" IPS Assist, Aspect Ratio, Image Flip, Image Freeze, Histogram, Resolution 1920x1200 pixels False Colors, Over Exposure, Embedded Audio, Nine Grid, Dot Pitch 0.07875 (W) x 0.07875 (H) mm Zoom, Anamorphic. -
Page 11: Trouble Shooting
TECHNICAL PARAMETERS TROUBLE SHOOTING Trouble Shooting 480i/576i 720p (60/59.94/50/30/29/25/24/23.98) • SDI Support Format Only black and white or monochrome picture 1080i (60/59.94/50) 1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ ① please check saturation, brightness & contrast adjustment. 23.98sF) ② Please check "Check Field" is in black, white or monochrome 480i/576i/480p/576p 720p (60/59.94/50/30/29/25/24/23.98) image or other condition. - Page 12 TROUBLE SHOOTING ■ If there are still other problems, please contact with our related technologists. ★ As we are improving product features and product performance, specifications are subject to change without prior notice.
