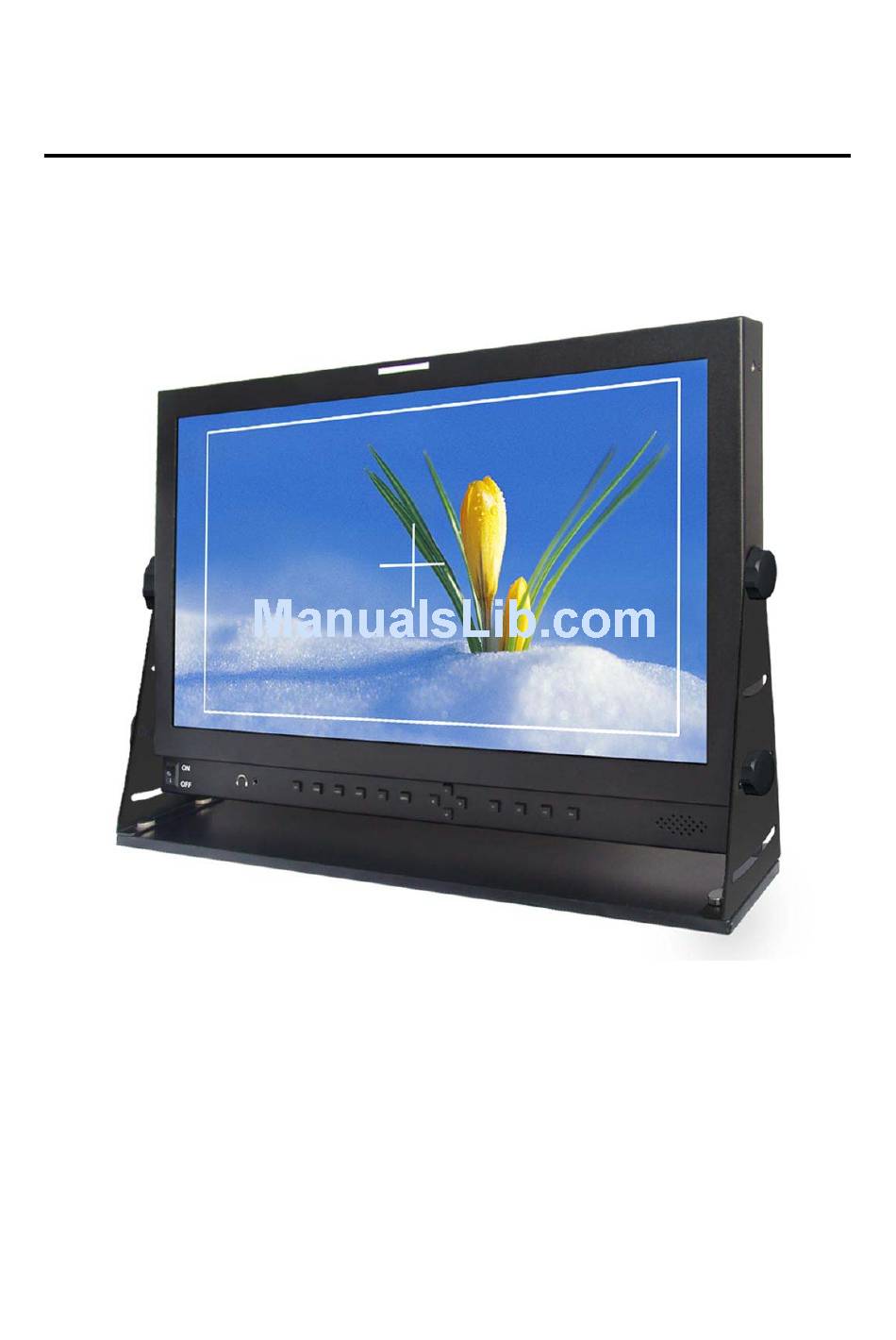

Page 1: User Manual

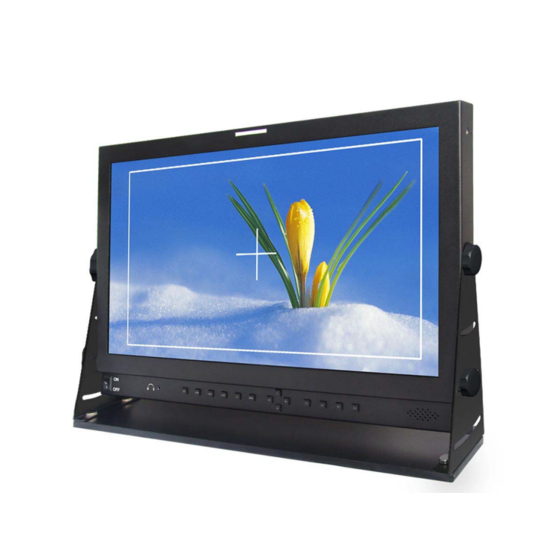

High Definition Color LCD Monitor ” ” User manual... - Page 2 Dear users: Thank you for purchasing our photography, broadcast HD-SDI LCD Monitor kit. This product employs digital signal processing circuit and professional TFT LCD screen. It’s high brightness, low power consumption, stable performance and emits no radiation advantages, strong compatibility, adjustable color temperature control.
-
Page 3: Product Feature
Product feature: ◆ 5D II Camera Modes ◆ Screen Marker: off, 96%, 93%, 90%, 85%，80% ◆ Screen Center Marker (cross mark) display setting ◆ Scan mode: (standard, under scan, over scan) (1080I, 1080P, 50/60HZ NO use) ◆ Monochrome display: color, black and white, red, green, blue, Closed ◆... -
Page 4: Table Of Contents
CONTENTS 1. Product description --------------------------------4 A. Front panel view ---------------------------------4 B. Rear panel view ----------------------------------5 C. Battery Plates -------------------------------------6 D. Power input way----------------------------------7 E.TALLY use and connect ------------------------8 2. Button operation instruction--------------------9 3. Menu function introduction---------------------10 4. Signal format form---------------------------------16 5. -
Page 5: Product Description
1． Product description A. Front panel view 1. Power ON/OFF: ：Power connect, ○：power cut : Earphone jack 3. SDI: Digital component serial signal input selection button 4. HDMI：HDMI HD signal input selection button 5. VIDEO: Composite video signal input selection button 6. -
Page 6: Rear Panel View
press the button directly, which enables the movable picture still in the picture. 11. ：Volume up, in OSD menu for right adjustment, function Confirm or increase the value of analog on the menu ：Up adjustment button, menu item selection button 13～16. -
Page 7: Battery Plates
4. HDMI OUT: HDMI (High Definition Multimedia Interface) signal output 5. HDMI IN: HDMI (High Definition Multimedia Interface) Signal input 6. Y IN： Y signal input 7. Y 0UT： Y signal output 8. Pb IN： Pb signal input 9. Pb OUT：Pb signal output 10. -
Page 8: Power Input Way
factory defaults assembly battery plate. Sony V-Mount Remark: Different specifications of the battery, capability is different. The working time for the monitor will be different. Higher capability (working time) will be longer. D．Power input way The monitor can work with power through 4 pin XLR (XLR) interface or battery plate install battery-powered, when the 4 pin XLR (XLR) interface and battery plate both with power, the monitor automatically selected by the 4 pin XLR (XLR) interface power... -
Page 9: E.tally Use And Connect
Different specifications of the battery, capability is different. The working time for the monitor will be different. Higher capability (working time) will be longer. Without design charging circuit for the monitor, please remove the battery to the battery charger for charge. Suggestion: Better remove the battery for long-term NO use this product. -
Page 10: Button Operation Instruction
2. Button operation instruction SDI → Digital component serial signal input selection HDMI → High Definition Multimedia Digital Signal input selection VIDEO → Composite video signal input selection Ypbpr → Color difference interface video signal input selection → Photography mode. Using 5D2 or 550D and other similar camera, press the button , the screen image disappears after about 6-8 seconds, will return to full... -
Page 11: Menu Function Introduction
menu option and submenu down selection F1→ Custom button, users can select(Screen marker, Monochrome display, Point to Point, Scanning Mode, Center Marker, Segmentation, Magnification) one of them as Definition function please set the system into menu. F2 → Custom button, see F1 F3 →... - Page 12 ◆ Menu page 1 picture Contrast: To adjust the brightest and darkest ratio of the image Brightness: To adjust the image's brightness Saturation: To adjust the saturation Tint: Adjustment of the NTSC signal in the composite Video mode, the other mode is invalid Sharpness: To adjust the depth to the image Color Temp: Use the adjustment the color temperature can Be Pre-set (user, 6500K.7300K, 9300K)
- Page 13 H/V delay: H/V delay optional switch Scan Mode: To deal with special image (standard, over scan, under scan) No use under 1080I & 1080P 50/60HZ ● Sound setting Press " "key, pop up OSD menu as below, ” ”or “ "to select , press "...
- Page 14 ◆ Menu page 1 picture Screen Marker: Picture framing marker selection frame (off, 96%，93%, 90%, 85%, 80%) Center Marker: Screen center marker (cross marker) display setting Horizontal Position: To adjust the image display (L/R) Vertical Position: To adjust the image display (U/D) Horizontal Size: To adjust the image L/R stretch Vertical Size: To adjust the image U/D stretch ◆Menu page 2 picture...
- Page 15 no deformation, no black, no delay, perfect without distortion PIP: To display two inputs signal picture at the same time, Can adjust picture position, size, picture interchange, double picture, and picture out picture mode Language: Chinese, English S D I： HD SDI switch option(for with SDI input port modes, Other modes select close) Effect: Menu display effect ◆Menu page 3 picture...
- Page 16 select the adjustment, then use " " or " " to adjust or select the adjustment. Press" " to exit. ◆ Menu page 1 picture F1： T he corresponding panel button F1 custom button function definition of choice setting(Screen marker, monochrome display, point to point, scanning mode, center marker, segmentation, magnified image).
-
Page 17: Signal Format Form
4. Signal format form Signal format form Video signal Support signal format Composite PAL/NTSC auto recognize Video Component 1080/ 50i/ 60i/ 50p/ 60p；720/ 50p，720/ 60p ； （Y/Pb/Pr) 480i、480p；576i、576p； 1080/ 24i/ 24p/ 25i/25p/ 30i /30p/ 50i/ 50p/ 60i/ 60p； HDMI 720/ 50p，720/ 60p ； 480i、480p；576i、576p； SDI(optional) 1080/ 24i /24p/ 25i/25p/ 30i /30p/ 50i/ 50p/ 60i/ 60p；... -
Page 18: Parameters
6．Parameters Panel size 21.5 ″ TFT LCD Pixel 1920（H）×RGB ×1080（V）pixels Dot pitch 0.08265×RGB（H）×0.2148（V）mm Brightness 250 cd/m² Contrast ratio 1000:1 Response time 14ms Viewing angle 178°(L/R) / 178°(U/D) Display ratio Full screen display, panoramic, 4:3, 16:9, 14:9 LED backlight Input voltage DC 10 ～... -
Page 19: Trouble Shooting
7. Trouble shooting If there is any problem using the unit? You can try following ways to inspect and solve ● without image display Trouble shooting ◆Video cable off or Check the quality of the cable, make connect incorrectly sure the correct input interface ◆Without video signal Check the signal source and output input... - Page 20 cable poor Check the quality of cable, or change ◆HDMI connected cable have a try ◆ No sound after switch This monitor with audio signal only in video signal audio input and HDMI ■Remark: If there are still other problems, please contact with our related deals.
