Page 1: Product Specification

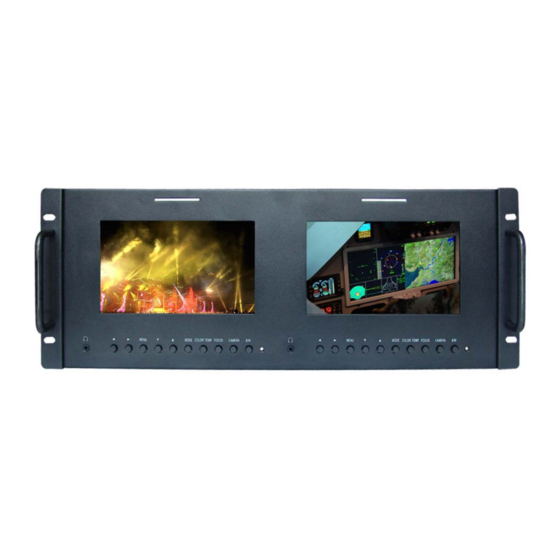

7inch Dual Rack Mount LCD Monitor Product Specification Product model:FW7D-DRM FW7D-DRM/O... -
Page 2: Table Of Contents
& audio monitor. The monitor with high resolution 1024*600, to receive the HDMI,Y/Pb/Pr and analog composite video signal, with the audio input,earphone monitoring functions. FW7D-DRM/O can also provide HDMI,composite video signal output. All video signals by digital processing, high quality scaling on the screen. Can be used in the TV news production, editing, broadcast and television, special vehicles in areas such as video surveillance. -
Page 3: Product Feature Instructions
2. Product feature instructions Panel size TFT LCD 7.0inch×2 1843200 Pixels Panel type TFT LCD Resolution 1024 x 600 Max resolution 1920 x 1440 Horizontal frequency range 30～60kHz Vertical frequency range 60Hz ～ 75Hz Dot pitch 0.05(W) x 0.15 (H) Display ratio 16：9 Brightness... -
Page 4: Panel Function And Button Operating Instruction
3. Panel function and button operating instruction 1. Power indicator 2. B/W ： Switch on/off Check Field (Red、 Green、 Blue、 Monochromatic and Color) 3. CAMERA ：Canon 5D Mark II Camera Mode(camera mode is recording, full display on monitor, No delay, No black screen,No deform) 4. -
Page 5: Rear Panel And Interface Instruction
4. Rear panel and interface instruction 1. A-IN： Audio signal input 2. YpbPr： Component video signal input, Top-down is Y、Pb、Pr input port 3. V-IN： Composite video signal input 4. V-OUT: Composite video signal output 5. HDMI-IN： HDMI HD signal input 6. -
Page 6: Appreance Installation Size
6. Appreance installation size（mm） 7. OSD operating instruction(same operating with L/R screen) Before setting the menu functions, please make sure the device is connected correctly. Power switch(at the back of the unit) dial to ON position. The monitor enter into working state. Please dial to OFF position ,when need to close the unit. - Page 7 ● （Color） Enter into "Color" OSD, press “◄”or“►”button to confirm, then enter to adjust the color parameters, use ““▲”or“▼”to select adjustment item, then use“◄”or“►”adjust the parameters ※ Brightness: To adjust the image's brightness ※ Contrast: To adjust the brightest and darkest ratio of the image, please note the sense of picture when adjust, proportion too large or small, will make the picture lose the color of showy.
- Page 8 ● （OSD） After select "OSD" function, press “◄”or“►” button to confirm, then enter into parameters adjust. Using “▲”or“▼” button to select optional items, then using “◄”or“►” button to adjust the parameters. ※ Language： Languages for OSD as below: English Italians Francois Deutsch 简体中文...
- Page 9 ※ H Position：To adjust the OSD position in horizontal. ※ V Position：To adjust the OSD position in vertical. ※ OSD Timeout：To adjust the clock. ※ Transparent：To adjust the level of transparent. ● （Function） After select "function", press “◄”or“►” button to confirm, then enter into parameters adjust.
-
Page 10: Accessories
● (Sound) After select "menu" function, press “ ”or“ ”button to confirm.Then enter into parameters adjust. Use “▲”or“▼” to select adjustable options, then use“ ”or“ ”adjust specific parameters ※ Volume: To adjust the volume. 8. Accessories...
