Summary of Contents for Pentair PF6-P

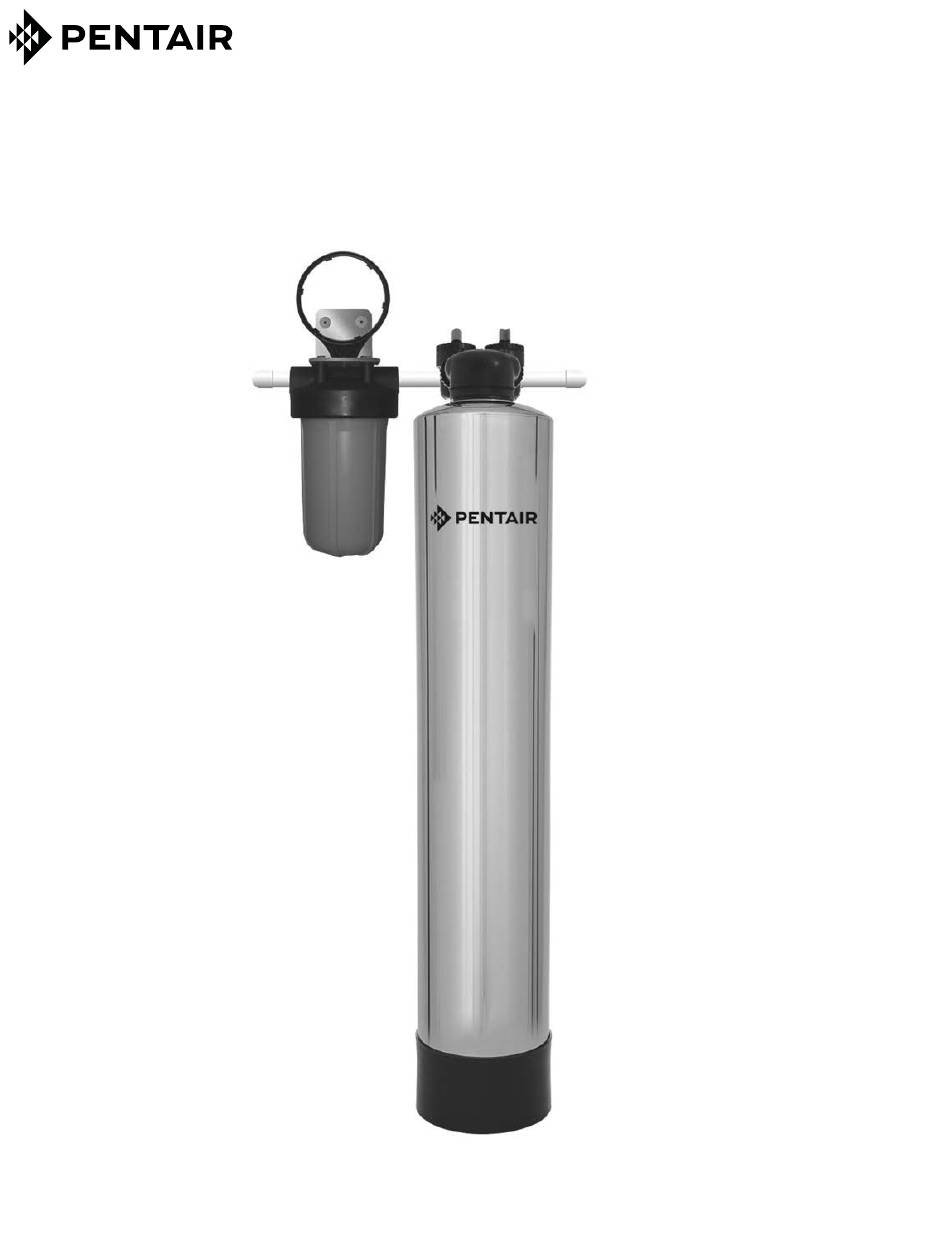

  • Page 1 FLUORIDE WATER FILTER SYSTEM PF6-P pentair.com/homewater...
  • Page 2: Table Of Contents

    TABLE OF CONTENTS PRODUCT OPERATION AND SPECIFICATIONS ........................3 COMPLETE PARTS LIST ................................. 3 INSTALLATION OVERVIEW ..............................4 PRE-INSTALLATION ................................5 FLUORIDE FILTER SOAK................................ 6 FLUORIDE FILTER WASH................................ 7 SEDIMENT FILTER INSTALLATION............................8 FLUORIDE WATER FILTER SYSTEM TANK INSTALLATION......................9 BYPASS VALVE OPERATIONS ..............................
  • Page 3: Product Operation And Specifications

    Note The parts supplied are intended to accommodate a variety of water supply lines. Additional fittings may be needed to fit to your plumbing. Visit pentair.com to view our full line of installation kits. COMPLETE PARTS LIST Part Description Qty.
  • Page 4: Installation Overview

    INSTALLATION OVERVIEW Wall Wall Wall Wall Incoming Outgoing Water Water to Supply House Incoming Outgoing Water Sediment Filter Water to Supply House Sediment Filter Top View Top View Fluoride Filter Fluoride Filter Bypass Bypass Water to Home Shut Off Valves Water to Home Shut Off Valves Sediment Filter...
  • Page 5: Pre-Installation

    PRE-INSTALLATION Note Head may come loose in transit. Please check head by tightening clock wise, hand tighten only, no more than turn. Head may not move at all or less than turn. Bypass Valve Installation Red Arrow Quick Connect Nut Top View Water Filter Head Fluoride Filter...
  • Page 6: Fluoride Filter Soak

    Top View Whole House Fluoride Filter 1. Attach a garden hose to the Hose Bib Assembly. 2. Connect the Hose Bib Assembly to the upflow inlet side of the Bypass Valve and hand tighten. 3. Fill the Pentair Whole House Fluoride Filter Tank full until water comes out of downflow inlet side of the Bypass Valve. 4. Turn the water off. 5. Remove the garden hose from the Hose Bib Assembly. Do not remove the fitting. 6. Allow the carbon tank to soak for at least 48 hours prior to tank installation.
  • Page 7: Fluoride Filter Wash

    FLUORIDE FILTER WASH IMPORTANT Do not perform the Fluoride Filter Wash until the Fluoride Filter Soak process is complete. Note Water will flow out of the downflow inlet side of the Bypass Valve during this process. Be sure you perform this series of steps in a location suitable for water flow.
  • Page 8: Sediment Filter Installation

    SEDIMENT FILTER INSTALLATION Note Sediment filter position is at the discretion of your professional installer. As a general guideline, the sediment pre filter is typically installed in the "pre" position (as shown above) for well-water applications. For city water applications, the sediment filter is typically installed in the "post"...
  • Page 9: Fluoride Water Filter System Tank Installation

    2. Determine the size and material of your incoming water supply line and choose the appropriate plumbing required to adapt Bypass to the 1” male NPT Assembly. Note Visit Pentair.com/homewater to view our full line of installation kits. CAUTION Water to Home Do not over-tighten any of the fittings during installation.
  • Page 10: Bypass Valve Operations

    2. Peel off the protective plastic wrap from the stainless steel tank jacket(s). 3. Add the Pentair logo sticker(s) in the desired location on the tank. 4. Wax stainless steel tank jacket(s) with wax provided (or any other non-abrasive auto wax) a minimum of 1-2 times per year or as needed based on the installed environment.
  • Page 11: Maintenance

    MAINTENANCE Media Replacement Your Pentair PF6-P Whole House Fluoride Filter requires care and cleaning after a period of 3 years. Replacement media and instructions can be ordered on-line at Pentair.com/homewater or by calling 877-842-1635. Sediment Filter It is recommended that the sediment filter be replaced every 6-9 months depending on the amount of sediment present in the water supply. If the system has been working properly and the pressure is slowing, it may be time to change the sediment filter. Check the sediment filter and replace if necessary. Sediment Filter Cover...
  • Page 12: Troubleshooting

    Note If you have experienced a Boil Alert or require your system to be sanitized, please go to pentair.com/assets/pwsboilalert for product sanitization instructions. 12 • WATER SOFTENER ALTERNATIVE WITH NATURSOFT® SALT-FREE TECHNOLOGY 12 •...
  • Page 13: Product Warranty And Registration Form

    PRODUCT WARRANTY AND REGISTRATION FORM For details on your Pentair product warranty, please visit Warranty Registration Form Send in this Warranty Registration Form to validate your warranty or visit pentair.com/register-warranty to complete the warranty registration form online. Date Item(s) were Received:...
  • Page 14 14 • FLUORIDE WATER FILTER SYSTEM...
  • Page 15 FLUORIDE WATER FILTER SYSTEM • 15...
  • Page 16 2361 Mason Ave | Suite 100 | Daytona Beach, FL 32117 | United States P: 877.842.1635 | Technical Services: 877.842.1635 | pentair.com/homewater © 2021 Pentair. All indicated Pentair trademarks and logos are property of Pentair. Third party registered and unregistered trademarks and logos are the property of their respective owners.
