Pentair PDF-1000VF-P Manual

P 3-stage drinking water system
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
P 3-STAGE DRINKING WATER SYSTEM
PDF-1000VF-P
pentair.com/homewater

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PDF-1000VF-P and is the answer not in the manual?

Questions and answers

Related Manuals for Pentair PDF-1000VF-P

Summary of Contents for Pentair PDF-1000VF-P

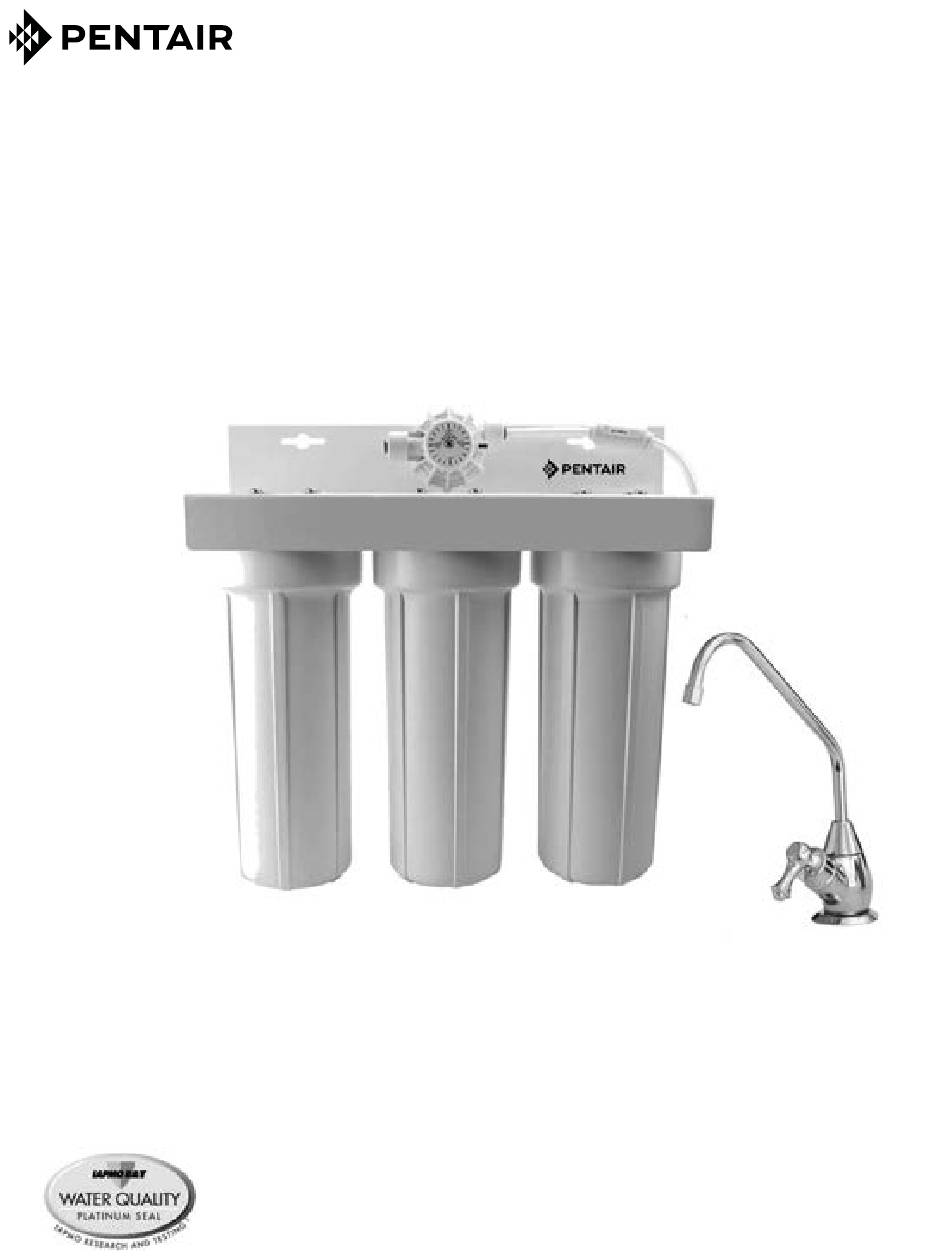

  • Page 1 P 3-STAGE DRINKING WATER SYSTEM PDF-1000VF-P pentair.com/homewater...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS PARTS LIST ................................... 3 ABOUT THE PDF-1000VF-P FILTRATION SYSTEM ........................4 BEFORE YOU START ................................4 PRECAUTIONS ..................................4 SPECIFICATIONS & DIMENSIONS ............................4 PARTS OF THE SYSTEM................................. 5 MATERIALS & TOOLS NEEDED ............................... 5 INSTALLATION INSTRUCTIONS .............................. 5-7 STEP 1 –...

  • Page 3: Parts List

    METER, 1800 GALLON, 1/4 NPT E E X X P P L L O O D D E E D D P P A A R R T T S S V V I I E E W W PDF-1000VF-P 3-STAGE DRINKING WATER SYSTEM • 3...

  • Page 4: About The Pdf-1000Vf-P Filtration System

    Rated Service Life ..... 1000 gallons (3,785 L) Dimensions ........ 15.5” H x 5.25” D x 14” L ........(394mm x 133mm x 356mm) Weight ........(filled with water) 19lbs (8.6kg) 4 • PDF-1000VF-P 3-STAGE DRINKING WATER SYSTEM...

  • Page 5: Parts Of The System

    3/8-inch to 7/8-inch (10-22mm) steel, brass, copper, or PVC pipe a) Turn off cold water supply and turn on nearest faucet before starting installation. Place a tray or towels under the cold water line to catch excess water. b) Drill a 1/8-inch (3mm) hole in the cold water line. Remove any burrs with sandpaper or file. c) Turn handle on the saddle valve to expose lance no more than 3/16-inch (5mm) above black rubber gasket. d) Place valve body over hole in cold water line so lance fits into hole. e) Attach back plate of clamp and tighten bolts evenly and firmly so brackets are parallel. f) Turn valve handle clockwise to closed position and leave closed until installation is compete. Notice All nuts must be retightened when the system reaches projected operating temperature. 5 • PDF-1000VF-P 3-STAGE DRINKING WATER SYSTEM...

  • Page 6: Step 2 - Selecting The Faucet Location

    Caution: Do not over-tighten compression nut. Use caution not to bend or crimp tubes when securing. a) Locate compression nut pieces (3) in installation kit and faucet package. b) Attach compression nut pieces (3) to one end of tubing by sliding the nut and ferrule onto the tubing; then insert the sleeve into the tube. c) Attach tube with compression nut assembly to faucet stem by inserting tube into the faucet stem opening. Tighten nut. Notice All nuts must be retightened when the system reaches projected operating temperature. 6 • PDF-1000VF-P 3-STAGE DRINKING WATER SYSTEM...

  • Page 7: Step 6 - Attaching Tube

    This harmless cloudiness results from the release of trapped air with the cartridge and will disappear within a few weeks after installation. 7 • PDF-1000VF-P 3-STAGE DRINKING WATER SYSTEM...

  • Page 8: Filter Cartridges

    11. Screw bottom of housing(s) onto cap(s) and hand-tighten. DO NOT OVER-TIGHTEN. Make certain cap standpipe slips into cartridge(s). 12. Reset effective life indicator to 1100 gallons (see instruction under “Setting Effective Life Indicator” on Page 6.) Notice Based on the setting sensitivity of the Effective Life Indicator (ELI), user should set the ELI to 1,100 gallons to assure a 1,000 gallon cycle. 13. Turn on water to system. Let faucet run for 10 minutes to remove trapped air and carbon fines. Check system for leaks. 8 • PDF-1000VF-P 3-STAGE DRINKING WATER SYSTEM...

  • Page 9: Troubleshooting The System

    If leaks persist, or if there are other leaks in system, turn off water supply. No water or decreased water flow. • Check flow at faucet. The PDF-1000VF-P system should fill a gallon jug in approximately 2 minutes. Flow rates will vary with individual household water pressure.
  • Page 10 10 • PDF-1000VF-P 3-STAGE DRINKING WATER SYSTEM...
  • Page 11 11 • PDF-1000VF-P 3-STAGE DRINKING WATER SYSTEM...
  • Page 12 P: 877.842.1635 | Technical Services: 877.842.1635 | pentair.com/homewater ANSI Standard P473 for PFOAs & PFOS. © 2021 Pentair. All indicated Pentair trademarks and logos are property of Pentair. Third party registered and unregistered trademarks and logos are the property of their respective owners. 4006059 Rev A MY21...
