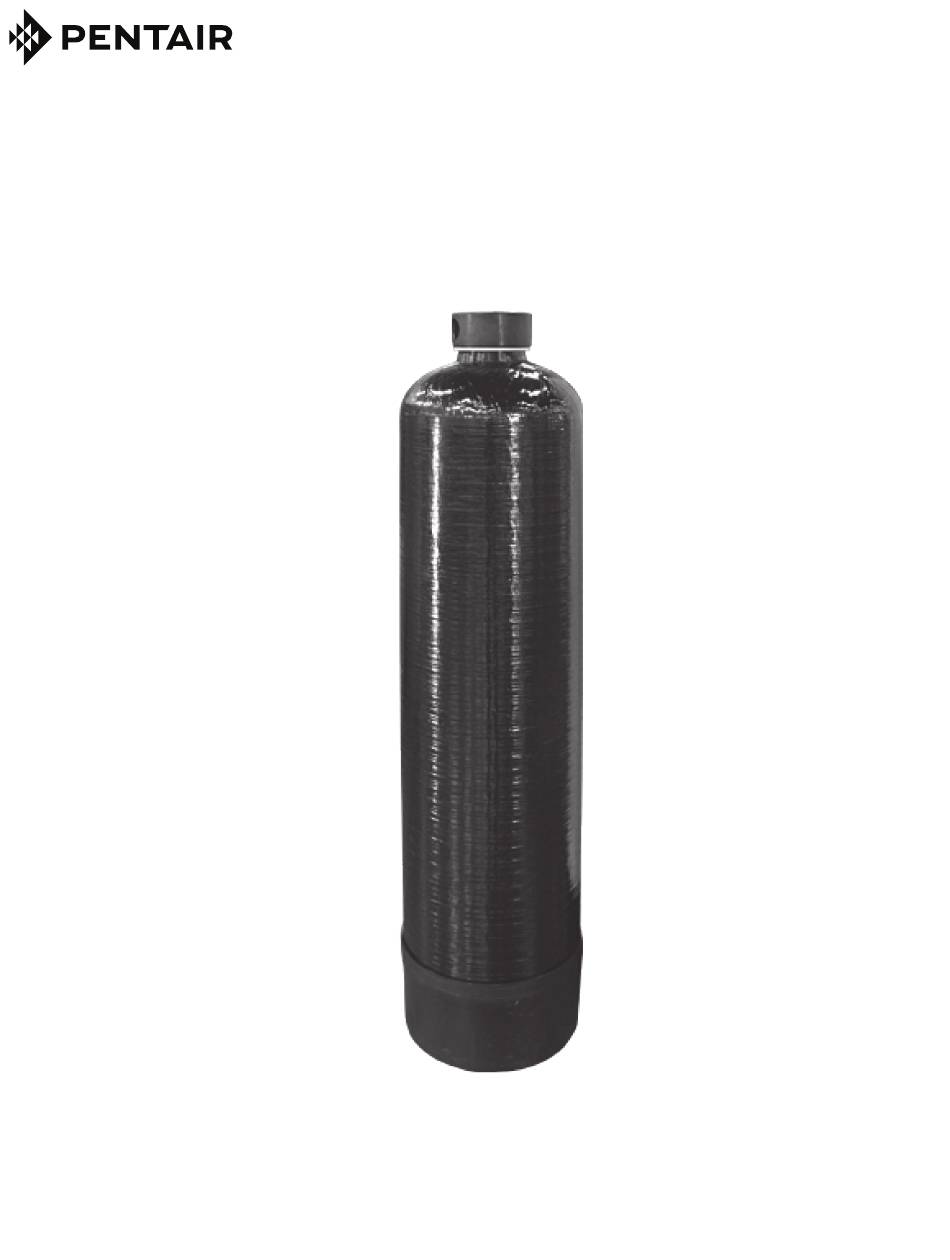

- Page 1 HIGH FLOW CARBON WATER FILTER SYSTEM WITH PRE-FILTER PC1354-P pentair.com/homewater...
-
Page 2: Table Of Contents
TABLE OF CONTENTS IMPORTANT INFORMATION ................................2 CUSTOMER SERVICE CONTACT INFORMATION ..........................2 PRODUCT OPERATION AND SPECIFICATIONS ..........................3 COMPLETE PARTS LIST ................................3 INSTALLATION INSTALLATION OVERVIEW ..............................4 CARBON TANK SOAK ................................5 CARBON TANK WASH .................................6 SEDIMENT FILTER INSTALLATION .............................7 TANK INSTALLATION ................................8 COMPLETE THE INSTALLATION ............................9 MAINTENANCE ..................................10 TROUBLESHOOTING .................................11 PRODUCT WARRANTY &... -
Page 3: Product Operation And Specifications
6 - 11 COMPLETE PARTS LIST Note: The parts supplied are intended to accommodate a variety of water supply lines. Additional fittings may be needed to fit to your plumbing. Visit pentair.com to view our full line of installation kits. Part Description Qty. -
Page 4: Installation Overview
INSTALLATION OVERVIEW Wall Wall Pre-Filter Unions Incoming (Recommended) Water Supply INLET OUTLET Outgoing Customer-Provided Top View Connection Water to House Bypass (Recommended) Water Filter Note: The plumber should follow the stickers on the head. Bypass Shutoff Valves Water to Home Water Filter Prefilter... -
Page 5: Carbon Tank Soak
4. Connect your garden hose to the Hose bib adapter. 5. Repeat steps 1-4 on the Outlet side of the tank head. 6. Fill the Pentair High Flow Carbon Water Filter Tank full until water flows out of the second hose. 7. Turn the water off. 8. Allow the carbon tank to soak for at least 48 hours prior to tank installation. -
Page 6: Carbon Tank Wash
CARBON TANK WASH Note: Do not perform the Carbon Tank Wash until the Carbon Tank Soak process is complete. Notice Water will flow out of the outlet side of the Bypass Valve during this process. Be sure you perform this series of steps in a location suitable for water flow. -
Page 7: Sediment Filter Installation
SEDIMENT FILTER INSTALLATION Note: Sediment filter position is at the discretion of your professional installer. As a general guideline, the sediment pre filter is typically installed in the "pre" position (as shown above) for well-water applications. For city water applications, the sediment filter is typically installed in the "post"... -
Page 8: Tank Installation
2. Determine the size and material of your incoming water supply line from the Carbon Water Filter and choose the appropriate fittings required to connect it to the Bypass Valve. Caution Do not over-tighten any of the fittings during installation. Note: Visit pentair.com/homewater to view our full line of installation kits. 3. Install the fittings into the INLET and OUTLET sides of the filter. 4. Connect the incoming water supply from the sediment filter to the fitting on the INLET side of the filter. 5. Connect the outgoing water supply to the OUTLET side of the filter... -
Page 9: Complete The Installation
1. Turn on the main water supply and check for leaks. 2. Peel off the protective plastic wrap from the stainless steel tank jacket(s). 3. Add the Pentair logo sticker(s) in the desired location on the tank. Caution Avoid high flow rates such as bathtub, utility sinks, hose bibs, multi-headed showers, body sprayers, or anything that is considered high flow for the first 72 hours to avoid flow restrictions caused by carbon blockage of the top basket inside the carbon tank. -
Page 10: Maintenance
MAINTENANCE Media Replacement Your Pentair High Flow Carbon Water Filter System requires care and cleaning after a period of five (5) years. Replacement media and instructions can be ordered on-line at www.pentair.com/homewater or by calling 877-842-1635. Sediment Filter It is recommended that the sediment filter be replaced every 6-9 months depending on the amount of sediment present in the water supply. If the system has been working properly and the pressure is slowing, it may be time to change the sediment filter. Check the sediment filter and replace if necessary. Sediment Filter Cover Sediment Filter O-Ring Blue Prefilter Housing Stand Pipe Replacing the Sediment Filter 1. Turn off the main water supply to the sediment filter system and bypass all tanks. 2. Run a faucet (cold water) inside the house to relieve the pressure. (leave the faucet open) 3. Unscrew the blue filter housing clockwise using the supplied filter wrench. -
Page 11: Troubleshooting
10 minutes. This will clear the blockage and you can resume using water at low or normal flow rates. Notice: If you have experienced a Boil Alert or require your system to be sanitized, please go to pentair.com/assets/pwsboilalert for product sanitization instructions. -
Page 12: Product Warranty & Registration Form
PRODUCT WARRANTY AND REGISTRATION FORM For details on your Pentair product warranty, please visit pentair.com/assets/residential-filtration-warranty. Warranty Registration Form Send in this Warranty Registration Form to validate your warranty or visit pentair.com/register-warranty to complete the warranty registration form online. Date Item(s) were Received:... -
Page 13: Product Certifications
PRODUCT CERTIFICATION PC1354 is IAPMO tested and certified to NSF/ANSI 42 for Chlorine Taste and Odor, and Structural Integrity. IAPMO tested and certified to NSF/ANSI 61 for Material Safety. WARNING Do not use where water is microbiologically unsafe or with water of unknown quality without proper disinfection before or after the filter/softener system. -
Page 14: Performance Data Sheet
PERFORMANCE DATA SHEET Performance Data - Pentair Whole House Filters Model Replacement Max Operating Rated Capacity Operating Rated Rated Pressure Drop Pressure Temp Range Flow (At Rated Flow) PC600-P PC600-R 25-80 PSI 662,400 gallons 36°F – 120°F 8 GPM 13 PSI... - Page 16 2361 Mason Ave | Suite 100 | Daytona Beach, FL 32117 | United States P: 877.842.1635 | Technical Services: 877.842.1635 | pentair.com/homewater © 2021 Pentair. All indicated Pentair trademarks and logos are property of Pentair. Third party registered and unregistered trademarks and logos are the property of their respective owners.
