As Figure 5-3 shows,this page also can set machine soft limit points,Soft Max is positive
direction soft limited points,soft Min is negative direction soft limited points.The soft limited
points values is according the references to the machine coordinate system,so as this example
shows,Y and Z axis's max value is 0,all the effective coordinate data is less than 0.As the Figure
shows,according to our current request,we set our XYZ axis soft limited points area as [0,270]
[-390,0] [-100,0].
3 Searching for machine original points
、
As Figure 5-4 shows,press REF ALL HOME at main display page,then XYZ A4 start to
search for the original points,if you need more axis's operation,edit macro command,or press
Alt+7 into Diagnostics display page,you can search original point for every axis. Diagnostics

5.2 Set workpiece coordinate system

Because every working material is hold in different position on the machine,we need to set
Manual of NVEC400

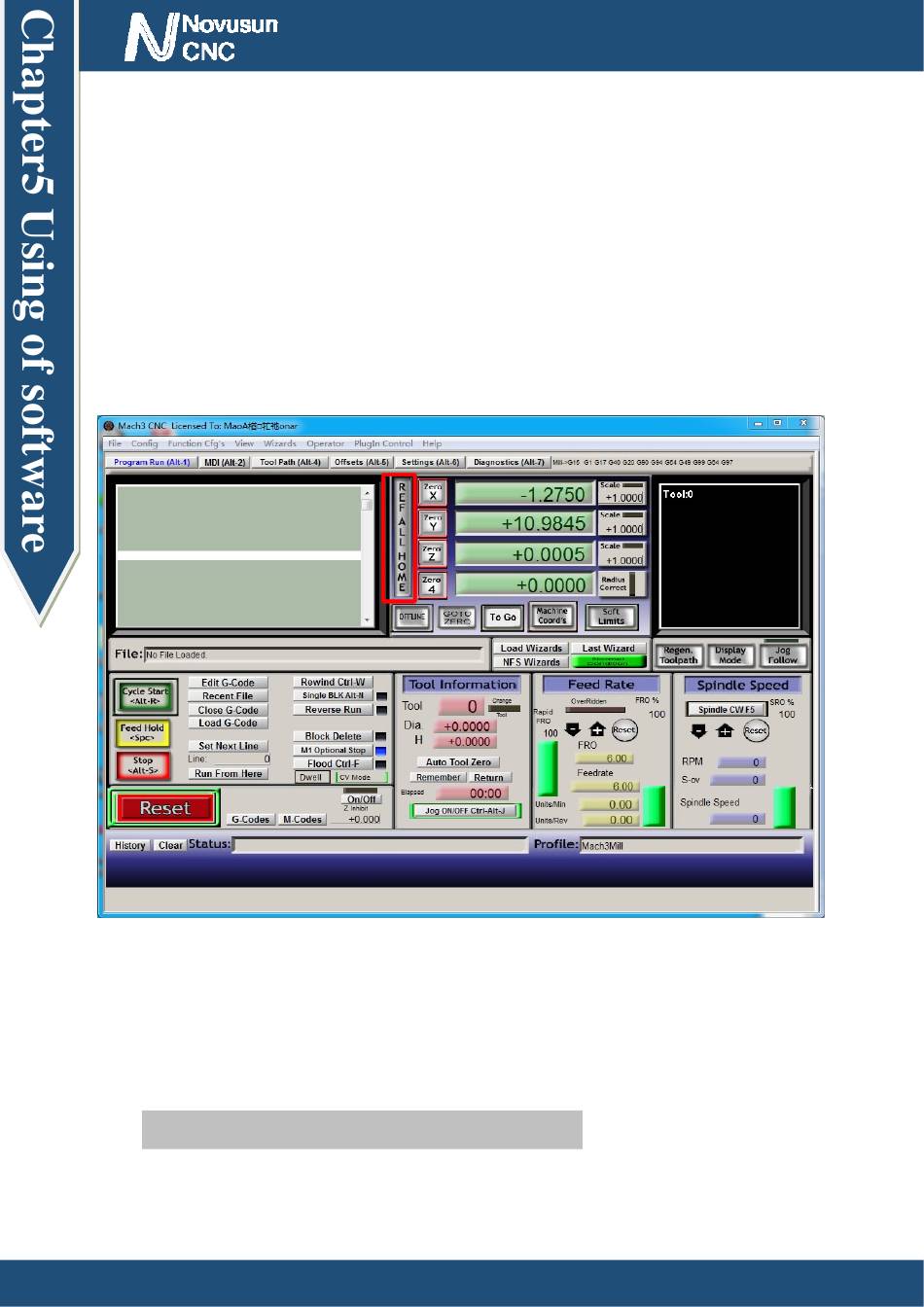

Figure5-4. Click REF ALL HOME to HOME all axis
