Chapter 5.

5.1 Set Machine Coordinate system

Firstly Open the software,as the drawing 5-1 shows,at this time,the software can operate the
machine movements,but before the setting machine coordinate system,there is no connection
between the software and machine.So first step is to set the machine coordinate system.
1 Set the machine original position switch
、
As our request,some machine set the original point at the coordinate positive direction,some
machines set the original point at the coordinate negative direction.Mach 3 can search out the
machine original point direction by the software setting.As the pic 5-2 shows,open Homing on the
config menu.Then as pic 5-3 shows.On this page,Home Neg is for searching for the machine
Manual of NVEC400
Using of software

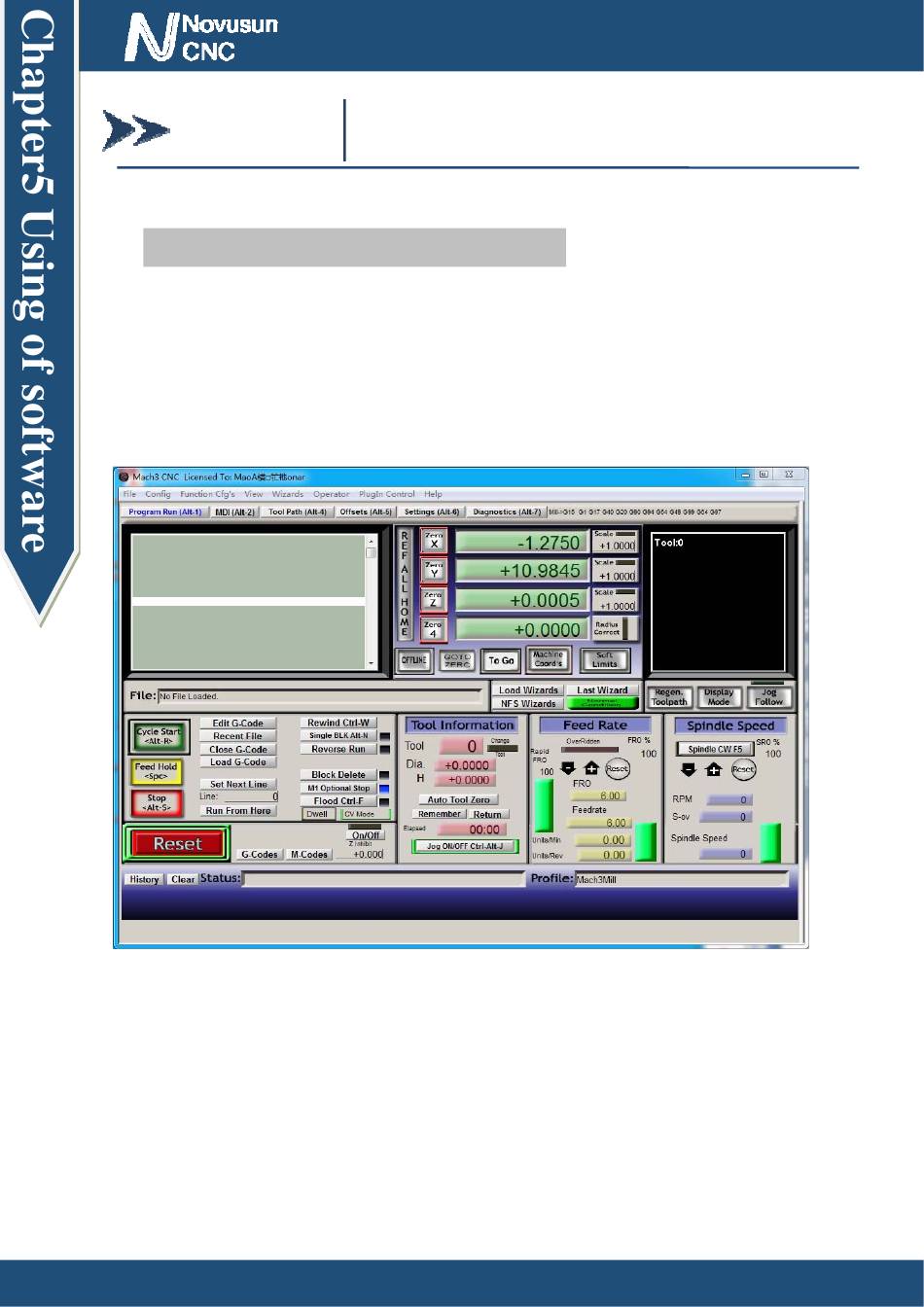

Figure5-1. Main Screen of mach3
- 31 -
