www.nvcnc.net
Manual of NVEC400

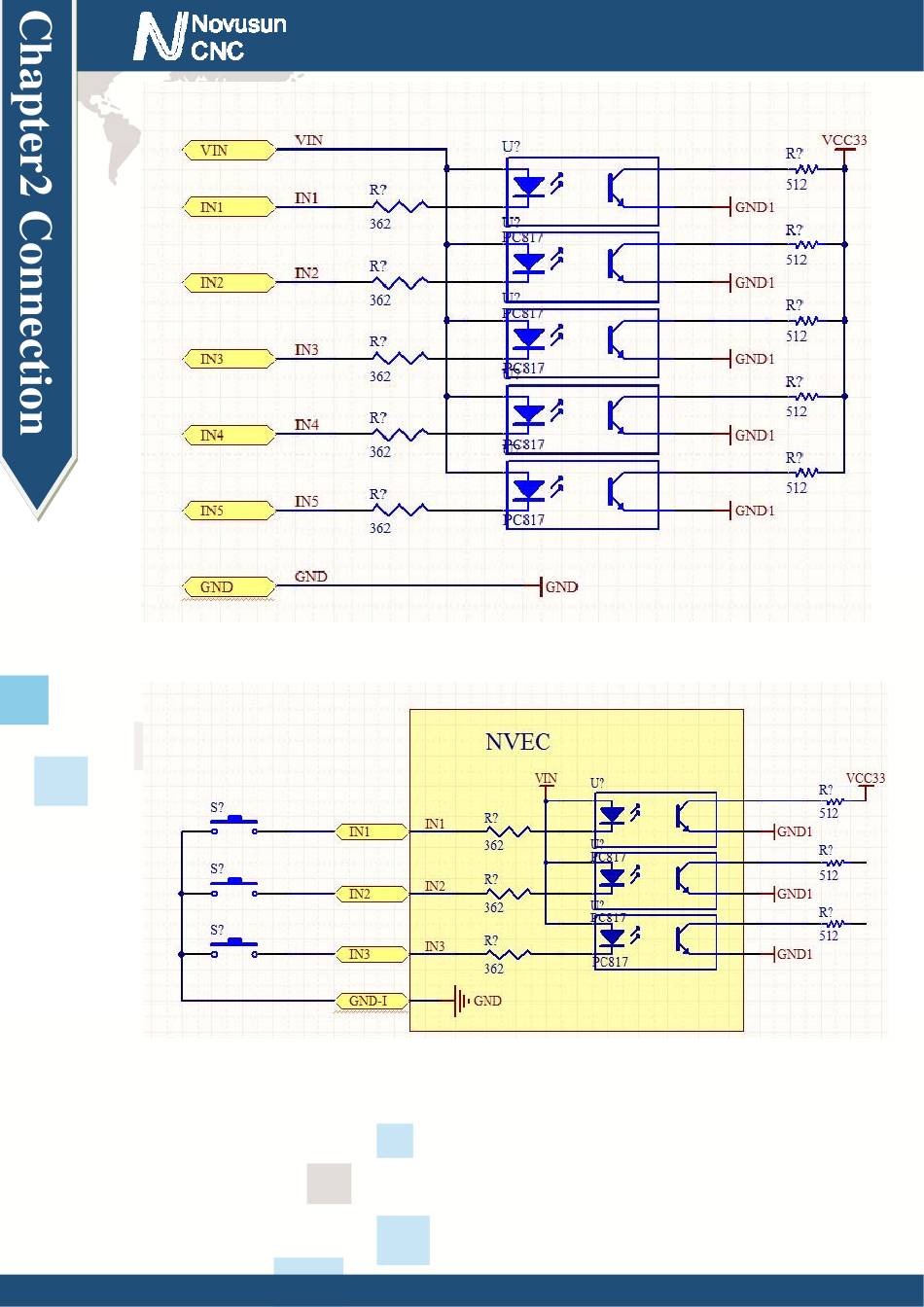

Figure2-11.
Internal structure drawing of Input interface
Figure2-12.
Probe/Estop/ ordinary fretting switch input connection
3 lines Proximity Switch connection Figure 2-13,brown cable for Proximity switch connect
with 12V,Black cable connect channel, blue cable connect with GND1.
Only support NPN 3lines proximity switch.
- 16 -
