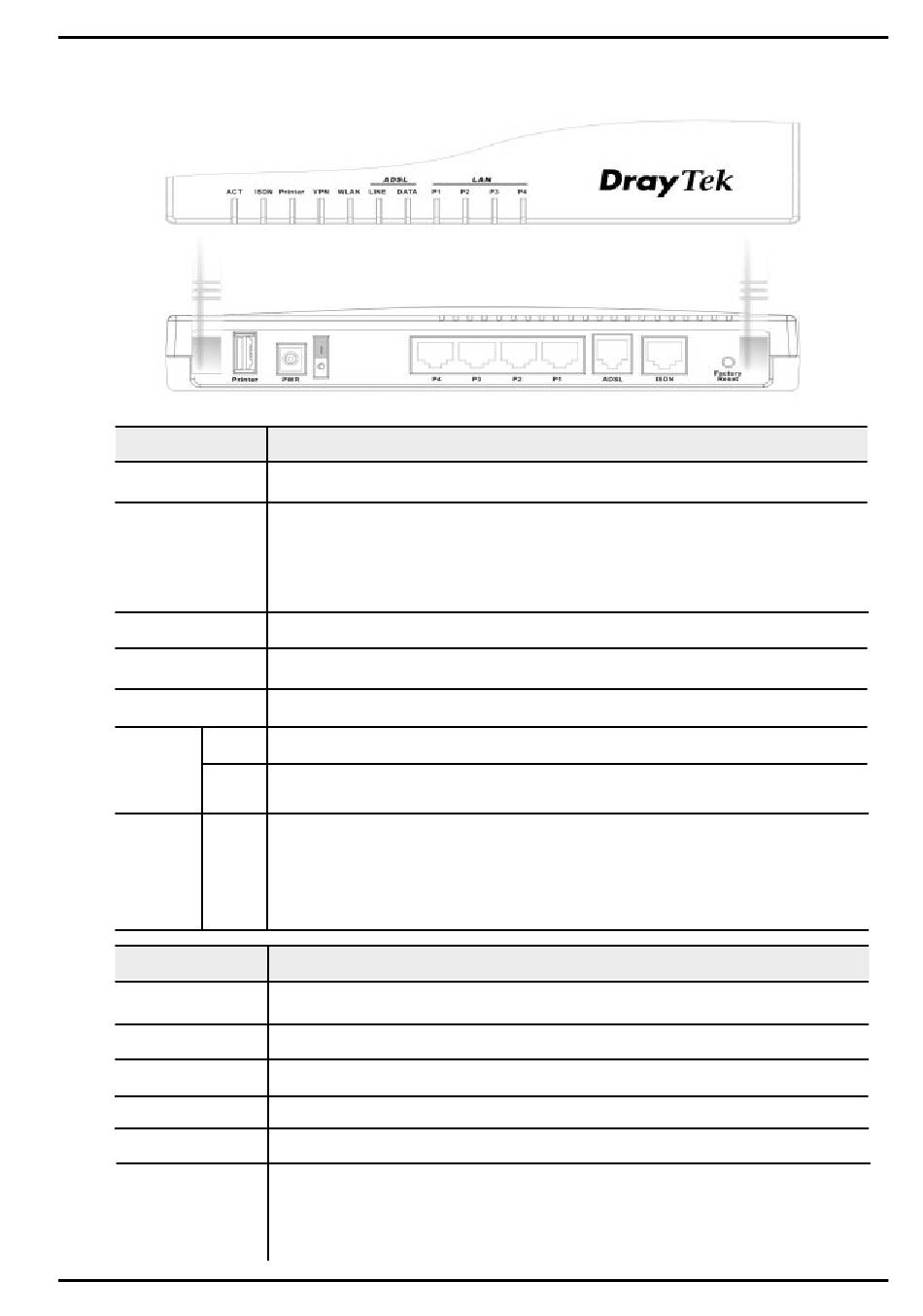

Vigor2600Gi
LED Indicators
ACT (Activity)
ISDN
Printer
VPN
WLAN
LINE
ADSL
DATA
P1, P2,
LAN
P3, P4
Back Panels
Printer
PWR
P1, P2, P3, P4
ADSL
ISDN
Factory Reset
Blink when power is supplied to the router and the router is running normally.
ON when the ISDN network is correctly setup.
BLINKING when there is a successful remote connection on the ISDN BRI B1 / B2
channel.
Note: for some NT-I boxes, the ISDN LED light will go OFF when the ISDN line has
been idle a while. When the router is dialling or answering a call it will go ON again
ON when the USB interface printer is ready
ON when the VPN is active.
ON when the wireless LAN is ready.
ON when the ADSL network is show time.
Blinking indicates the DSL protocols start hankshaking.
The light will remain still when data transmission is available.
These indicators are dual-colour LEDs:
- OFF indicates that no device is connected to the LAN port.
- Yellow means the port is connected to a 10Mbps device.
- Green indicates to connected device is 100Mbps.
- BLINKING indicates that Ethernet packets are passing through the port.
USB socket to connect a printer with USB interface.
Only the power adapter comes with the package can be connected to the PWR.
These switch ports should be connected to your local PCs.
To connect to the ADSL-enabled telephone line.
Connected to an external NT1(or NT1+) box provided by your ISDN service provider.
The restore default settings : While the router is running (ACT LED blinking),
press the button and hold for more than five seconds. The ACT LED begins to
blink rapidly, then release the button. The router will restart with the factory default
configuration.
