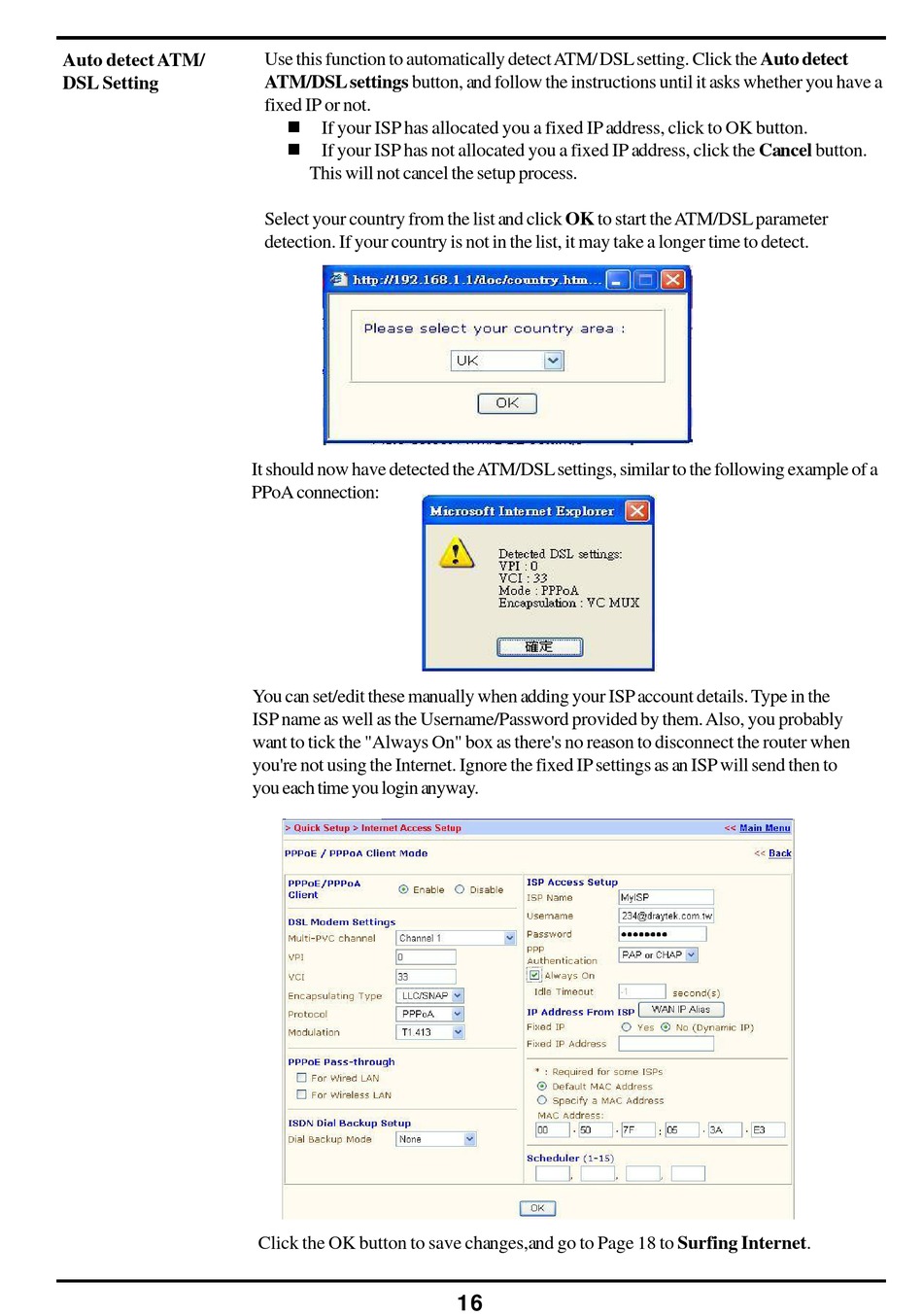

Draytek Vigor2600 plus Series Manual page 16

Auto detect ATM/
DSL Setting
Use this function to automatically detect ATM/ DSL setting. Click the Auto detect
ATM/DSL settings button, and follow the instructions until it asks whether you have a
fixed IP or not.
If your ISP has allocated you a fixed IP address, click to OK button.
n
If your ISP has not allocated you a fixed IP address, click the Cancel button.
n
This will not cancel the setup process.
Select your country from the list and click OK to start the ATM/DSL parameter
detection. If your country is not in the list, it may take a longer time to detect.
It should now have detected the ATM/DSL settings, similar to the following example of a
PPoA connection:
You can set/edit these manually when adding your ISP account details. Type in the
ISP name as well as the Username/Password provided by them. Also, you probably
want to tick the "Always On" box as there's no reason to disconnect the router when
you're not using the Internet. Ignore the fixed IP settings as an ISP will send then to
you each time you login anyway.
Click the OK button to save changes,and go to Page 18 to Surfing Internet.
16
