Draytek Vigor2600 plus Series Manual page 17

Enable Multi-PVC
For PPPoE/PPPoA
Users
The Vigor2600 plus series provides up to 8 ADSL communication profiles (called
Permanent Virtual Circuits).

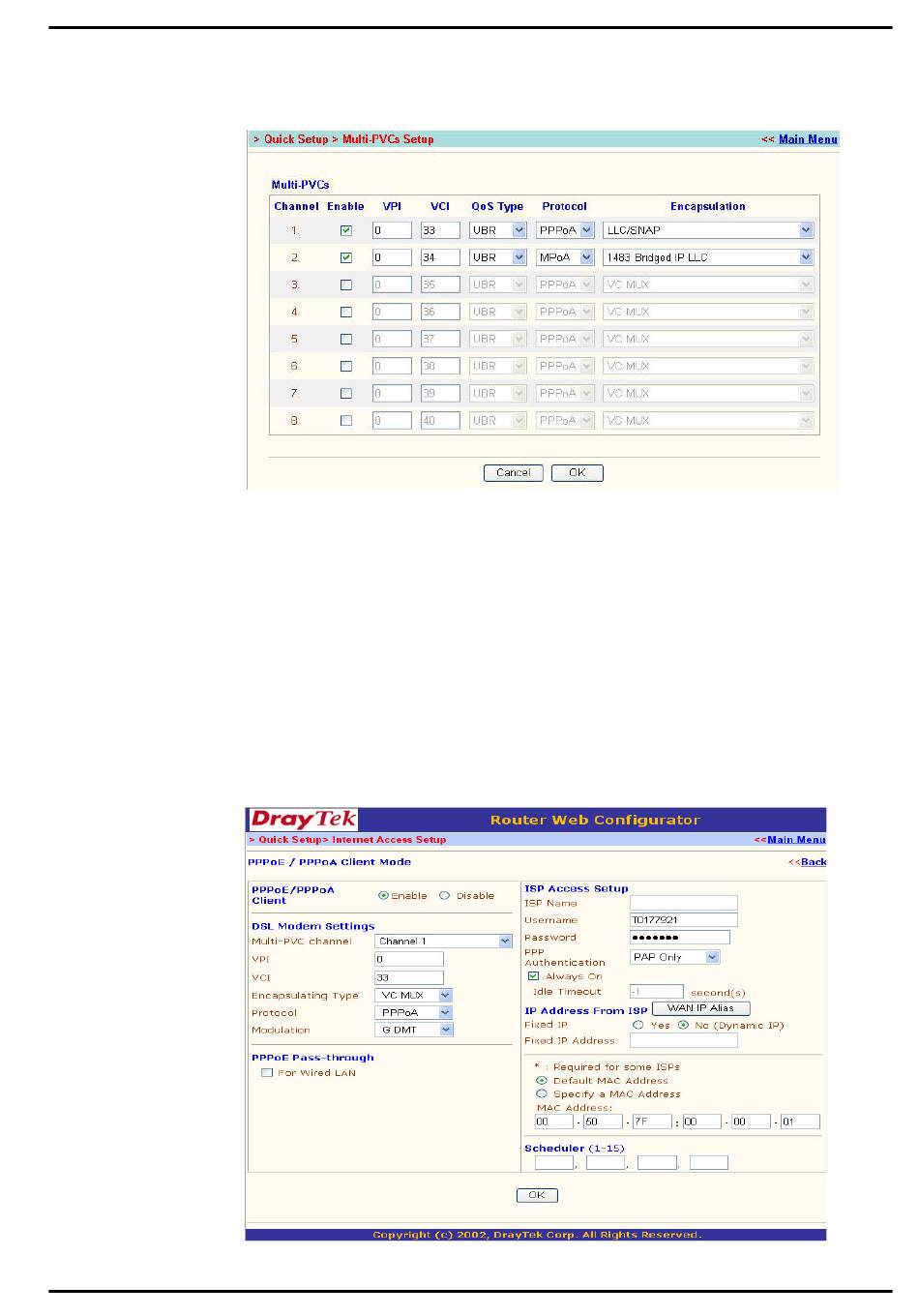

Click the Multi-PVCs menu option to enable one of the ADSL communication profiles.
Place a tick in the Enable column of one of the channels to make the channel active, and
enter the ADSL parameters according to the information provided by your ISP.
Please select QoS type of UBR if your ISP only supports one PVC channel on your
ADSL line.
To continue entering settings according to the parameters provided by your ISP, return
to the Internet Access Setup, and select PPoE / PPoA or MPoA (RFC1483/2684).
Select the Multi-PVC channel matching the enabled channel number on the Multi-
PVCs page.
Enter the username, password and DSL parameters given by your ISP.
To connect to Internet all the time, check Always On.
Click the OK button to save changes.
17
