KingSlim D1 Dual - Dash Cam Manual

WHAT'S IN THE BOX

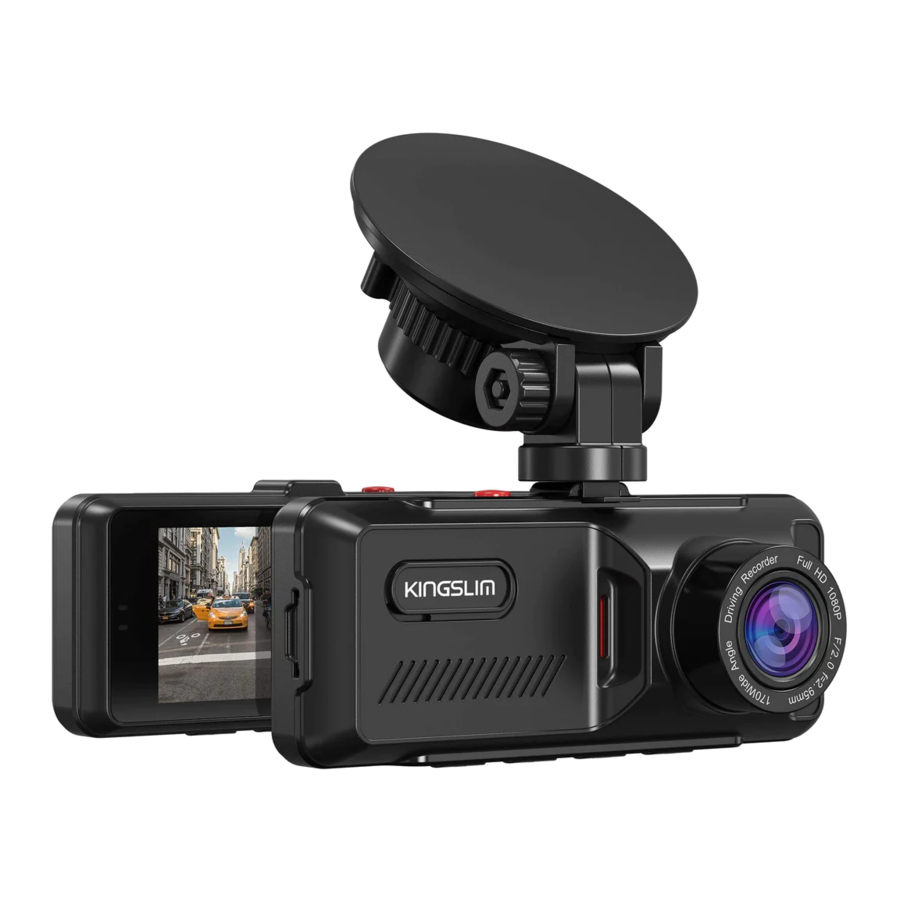

DEVICE OVERVIEW

PRODUCT OPERATION

1. Power Button
   Function 1: Press to wake up/turn off the screen.
   Function 2: Long press to turn the camera on/off.
2. Menu Button
   Function 1: Long press to enter the set-up menu.
   Function 2: Press to switch the shooting mode/playback mode/recording mode.
   Function 3: Press the menu button to lock the video during recording. Press the menu button again to unlock.
   Function 4: Press to exit the set-up menu.
3. OK Button
   Function 1: Press to start/stop recording.
   Function 2: In the shooting mode, press the OK button to shoot a photo.
   Function 3: In the playback mode, press the OK button to start/stop videos.
4. Up Button
   Function 1: In the set-up menu, press the up button to view the setting options.
   Function 2: In the recording mode, press the up button to view the display modes.
   Function 3: After pause recording, long press the up button to display the GPS information.
5. Down Button
   Function 1: In the set-up menu, press the down button to view the setting options.
   Function 2: When recording, press the down button to turn audio on/off.
6. Working Indicator
   Standby: The red and blue lights are on.
   Recording during charging: The red light is on and the blue light is flashing.
   Recording when fully charged: The blue light is flashing and the red light is off.

INSTALLATION

1. Insert the memory card (not included).
   Tip: A Class 10 or higher memory card is highly recommended for the dash cam. The dash cam supports a memory card up to 64GB. Please format your card in the camera before using it in the dash cam.

2. Insert the bracket into the bracket slot.

3. Install the dash cam on the windshield.
   First, clean the windshield with a dry cloth. Second, take the film off the suction cup and press the suction cup onto the windshield to make sure there is no air inside the suction cup, and then rotate to secure the bracket.

4. Adjust the view angle of the dash cam to ensure a good view.
5. Connect the USB power cable into the USB power port of the dash cam, then plug the car charger into the cigarette lighter socket.

6. Connect the rear camera to the dash cam with the extension cable to check that the rear camera works well.
7. Install the rear camera.
   Position 1: Install the rear camera on the rear windshield. This installation is easier.

   Position 2: Install the rear camera near the license plate. Position 2 is highly recommended. The rear image is crisp and clear for both rear viewing and as a back-up camera.


Note:

1. Pay attention to the connector position when connecting the rear camera with the extension cable; please refer to the photo below.

2. Clean the area to ensure the optimum adhesion before installing the rear camera.
3. If you choose position 1, clean the rear windshield regularly to ensure the image quality.
4. If you choose position 2, install the rear camera with the included adhesive stickers or screws.

8. Use the pry tool to hide the cables.

FORMATTING THE MEMORY CARD

Use a high-speed microSD card of Class 10 or higher. Please format your microSD card in the camera's settings before using this dash cam.

1. Long press the menu button to access the set-up menu.
2. Press the down button to view "format", then press the OK button.
3. Select "Confirm" and then press the OK button.

RECORDING

1. After finishing formatting, connect a car charger and start the car engine. The device will automatically turn on and begin recording.
2. Press the power button to turn on the device. Press the OK button to start recording.
3. Every time you exit from the setting menu or playback menu, press the OK button to start recording.

ICON INTRODUCTION

The Main Interface

1. Recording Resolution
2. GPS
3. Motion Detection
4. Gravity Sensor Indicator
5. Microphone Indicator
6. Memory Card Indicator
7. Power Status
8. Speed
9. Video Time
10. Date/Time

SETUP MENU

• Long press the menu button to enter the dash camera set-up menu.
• Press the up/down button to view the setting options. Select a setting option by using the OK button.
• Press the menu button again to exit the set-up menu.

1. Resolution
   Select "Resolution" and press the OK button to select the front camera recording resolution of "1080FHD 1920×1080" or "720P 1280×720". The default setting is "1080FHD 1920×1080". The rear camera recording resolution is "720P".
2. Loop Recording
   If you enable Loop Recording and select the 3-minute option, the dash cam will save videos every 3 minutes. New video files will overwrite the old ones to ensure continuous recording when the microSD card is full. If it is set to Off, the camera will not record anymore when the card is full. You will then need to format the microSD card or replace it with a new one. Options: Off/1 minute/3 minutes/5 minutes
   Default Setting: 3 minutes
3. Photo Resolution
   Set the photo resolution.
   Options: 2M 1920×1080/5M 2592×1944/8M 3264×2448/12M 4032×3024
   Default Setting: 2M 1920×1080
4. Video Audio
   Sound will be recorded simultaneously with video.
   Options: On and Off
   Default Setting: On
5. Key Tone
   Options: On and Off
   Default Setting: On
6. Date/Time
   Set the date and time manually.
7. Date Stamp
   Turn on the date stamp; recorded videos will show the time stamp.
   Options: On and Off
   Default Setting: On
8. Language Settings
   Options: English/繁體中文/简体中文/日本語/Français/Deutsch/Polskie/ไทย/
   Tiếng Việt/русский/Español/Italiana Default Setting: English
9. Gravity Sensor
   When the mode is turned on, it will automatically start recording and save content if an impact or sudden braking is detected. The videos will be locked and will never be overwritten by new files. The higher the sensitivity level, the easier it is to trigger the emergency recording.
   Options: Off/Low/Medium/High
   Default Setting: Medium
10. Parking Monitoring
    If an impact or sudden brake is detected during parking, the dash cam will automatically start recording a 22-second video and save the content. The video will be locked in the front or rear emergency video folder and will not be overwritten by new video files.
    Options: On and Off Default Setting: Off
11. UTC
    Choose the time zone manually. The device will then display the time in the selected time zone.
    Default Setting: UTC-5
    After changing the time zone, restart your dash cam and make sure the time and date are now correct.
12. Speed Unit
    You can set the speed unit that you prefer.
    Options: KM/H and MP/H Default Setting: KM/H
13. Motion Detection
    In standby mode, the dash cam will automatically start recording when any motion is detected. Options: On and Off Default Setting: Off
14. License Plate Setting
    Enter your license plate number.
    Options: On and Off Default Setting: Off
15. Screen Saver
    The display screen will turn off automatically after the set duration of inactivity.
    Options: On and Off
    Default Setting: On
16. Auto Power Off
    The dash cam will be turned off automatically after the time you set.
    Options: Off/1 minute/3 minutes/5 minutes Default Setting: Off
17. Source Frequency
    Choose the right frequency to avoid flickering. This should be based on your local AC parameters.
    Options: 60Hz/50Hz
    Default Setting: 50Hz
18. Format
    Format the memory card.

Note:

1. All data will be deleted. Before formatting your memory card, please remember to back up your important data on another device.
2. Before the memory card is inserted for the first time, please format it in the camera to ensure that the card is compatible with the camera.

19. Reset
    The dash cam will be reset to factory settings.
20. Version Number
    Allow you to check the camera's version.

DOWNLOAD THE GPS PLAYER

Download the GPS player: https://kingslim.net/pages/app-gps-download

TROUBLESHOOTING

The device is not recording

• Check whether your memory card has enough space. Back up any important data to another device first, and then format the memory card.
• Check if the loop recording in the settings menu is set to OFF. Set "Loop Record" to 3 minutes.

The device stops during recording

During recording, a large amount of high-definition video data is processed. Please use a high-speed memory card of Class 10 or higher.

A "File Error" prompt appears when playing back pictures and videos.
Use a genuine memory card, and be sure to format it.

The image is misty

Ensure there are no fingerprints or other marks on the camera lens. Use a soft, dry cloth to clean the lens. Clean the front windshield.

Crashing

If your device crashes, use a sharp object to press the reset button to restart the device.

No sound on the video

Ensure the audio recording mode is on.

The unit keeps turning on and off automatically

Charge the camera with the included car charger. Do not charge the battery via the USB data cable with other adapters.

CAUTION

1. Please place your device in a secure location and protect the lens from scratches and dirt.
2. Do not expose the device to rain, moisture, or water under any circumstances.
3. Avoid leaving the device in direct sunlight for extended periods of time.
4. Do not remove or expose the internal battery.

CONTACT US

For any inquiries about KingSlim products, please feel free to contact us.
We will respond within 24 hours.
Email: cs@kingslim.net
Tel: 888-811-1140 (US)
Official website: www.kingslim.net
