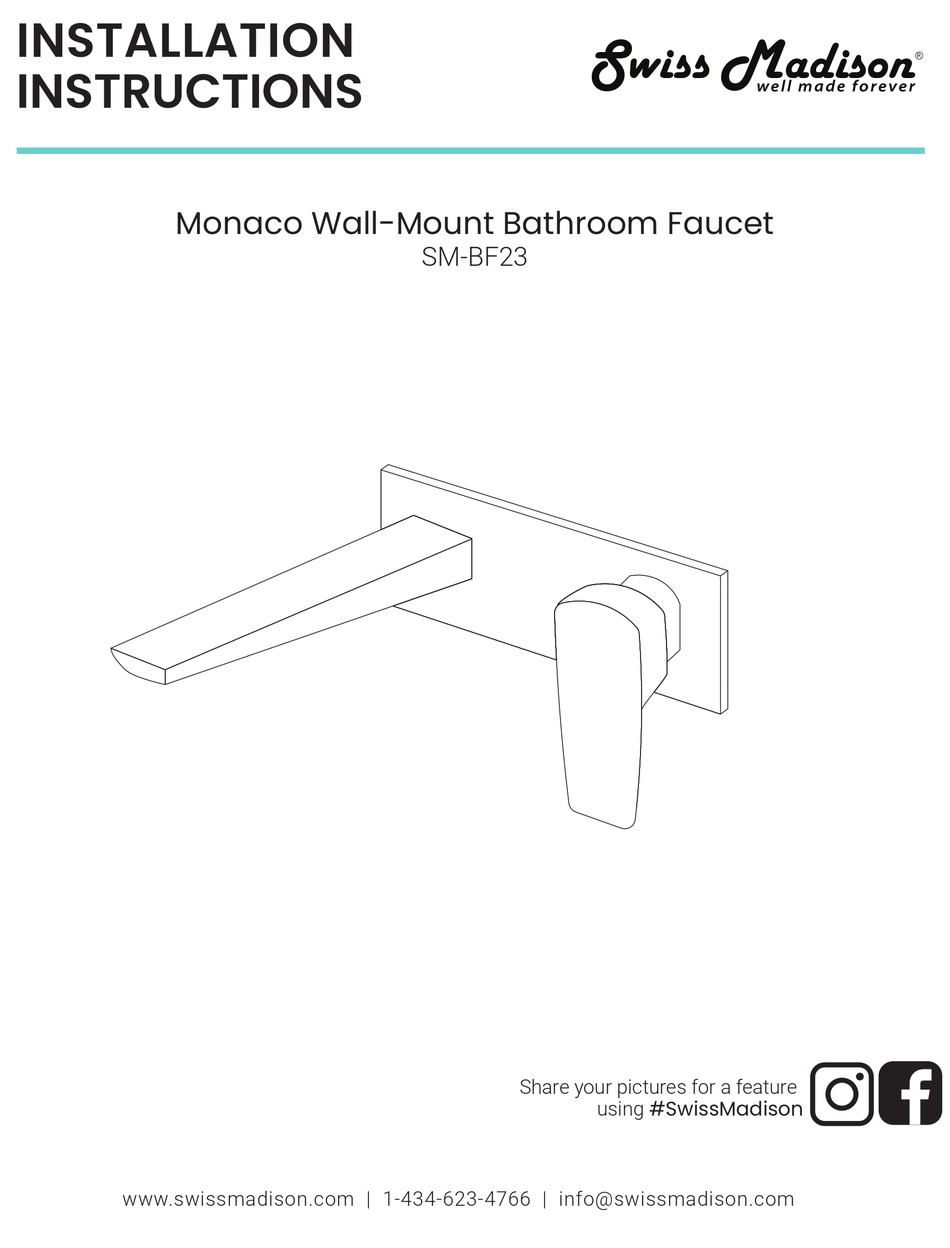

- Page 1 INSTALLATION wiss adison ® ® INSTRUCTIONS Monaco Wall-Mount Bathroom Faucet SM-BF23 Share your pictures for a feature using #SwissMadison www.swissmadison.com | 1-434-623-4766 | info@swissmadison.com...
- Page 2 Thank you for your purchase! Thank you for purchasing a Swiss Madison Faucet. We appreciate your business and know you will enjoy your faucet for many years to come. If you have any questions or require assistance we would be happy to help, please contact us at 1-434-623-4766 or info@swissmadison.com.
- Page 3 BATHROOM FAUCET ROUGH DIMENSIONS 8 ¹⁄4” 8 ¹⁄4” 4 ³⁄4” 3” 7 ¹⁄8” 5” SM-BF23C - Chrome Monaco Wall-Mount Faucet SM-BF23BG - Brushed Gold 8 ¹⁄4” x 7 ¹⁄8” x 5” SM-BF23BN - Brushed Nickel SM-BF23MB - Matte Black SM-BF23OR - Oil Rubbed Bronze —...
- Page 4 Pipe Tape Sealant The step-by-step guidelines in the installation instructions are a general reference for installing a Swiss Madison Faucet. Should there be any discrepancies, Swiss Madison cannot be held liable. It is recommended to install all Swiss Madison products by hiring a licensed professional.
- Page 5 BATHROOM FAUCET INSTALLATION INSTRUCTIONS 1. Mark Mounting Plate and Fix Concealed Body • Fasten a mounting block at desired height above your sink. Be sure it is set to the proper depth for finished wall material. • Position the concealed body and mark the mounting block. •...
- Page 6 BATHROOM FAUCET INSTALLATION INSTRUCTIONS 3. Fit Positioning Pipe and Adapter into the Concealed Body • After twisting sealing tape on the thread of the positioning pipe, fit the positioning pipe and the adapter into the outlet of the concealed body using allen wrench. 2.36”...
- Page 7 If you have any questions or concerns, please contact us directly at 1-434-MADISON (623-4766) WARNING: Contents of your order may contain sharp and possibly other harmful pieces and may cause hazard to children and adults. Swiss Madison® is not responsible in any way for personal dam- ages.
