IV6-LAU APPLICATIONS
5. Attach an I SERIES COMPACT (IC6) loudspeaker to the
bottom of an IV6 array for downfill applications. Attach the IV6-
LAU to the IV6-LAF-PBB frame as close as possible beneath the
center of mass of the array. Connect the IC6 yoke to the IV6-LAU
securely. Hardware to connect the IC6 yoke to the IV6-LAU must
be supplied by the installer.
Note: Adding any elements (IV6-LAF-PBB, IV6-LAU and a
loudspeaker) at the bottom of an array will change the overall
weight and potentially the COG, thus changing the array hang
point. Always have rigging safety conditions verified by a certified
engineer before installation.
Page 6
(CONTINUED)

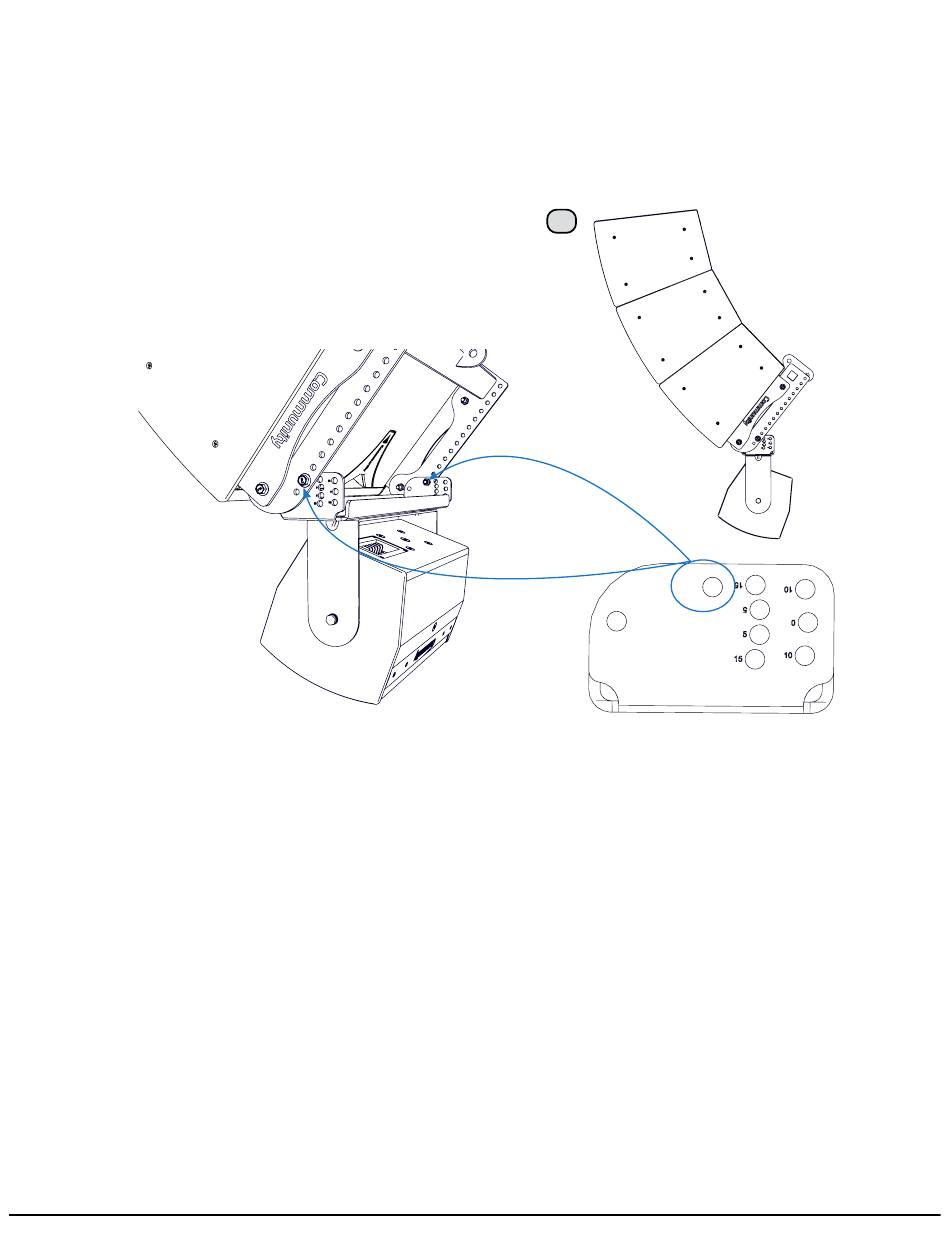

For "downfill" applications only, connect the IV6-LAU U-bracket using the center hole (circled)
One Grade 10.9 hex head bolt/hex nut connection per side
Allow the IV6-LAU to rotate into a self-leveled position before tightening the bolts
5
IV6-LAU Instructions
