Biamp Community I Series Manual

Biamp Community I Series Manual

For indoor modular vertical arrays

Advertisement

Quick Links

COMMUNITY
I SERIES
IV6-SB-AF
for Indoor
IV6 Modular Vertical Arrays
The IV6 Rigging Frames, Accessories and Safety Guide
(a complete set of instructions including all of the IV6
indoor rigging frames, accessories and information)
is available on the Biamp website <here>
A:

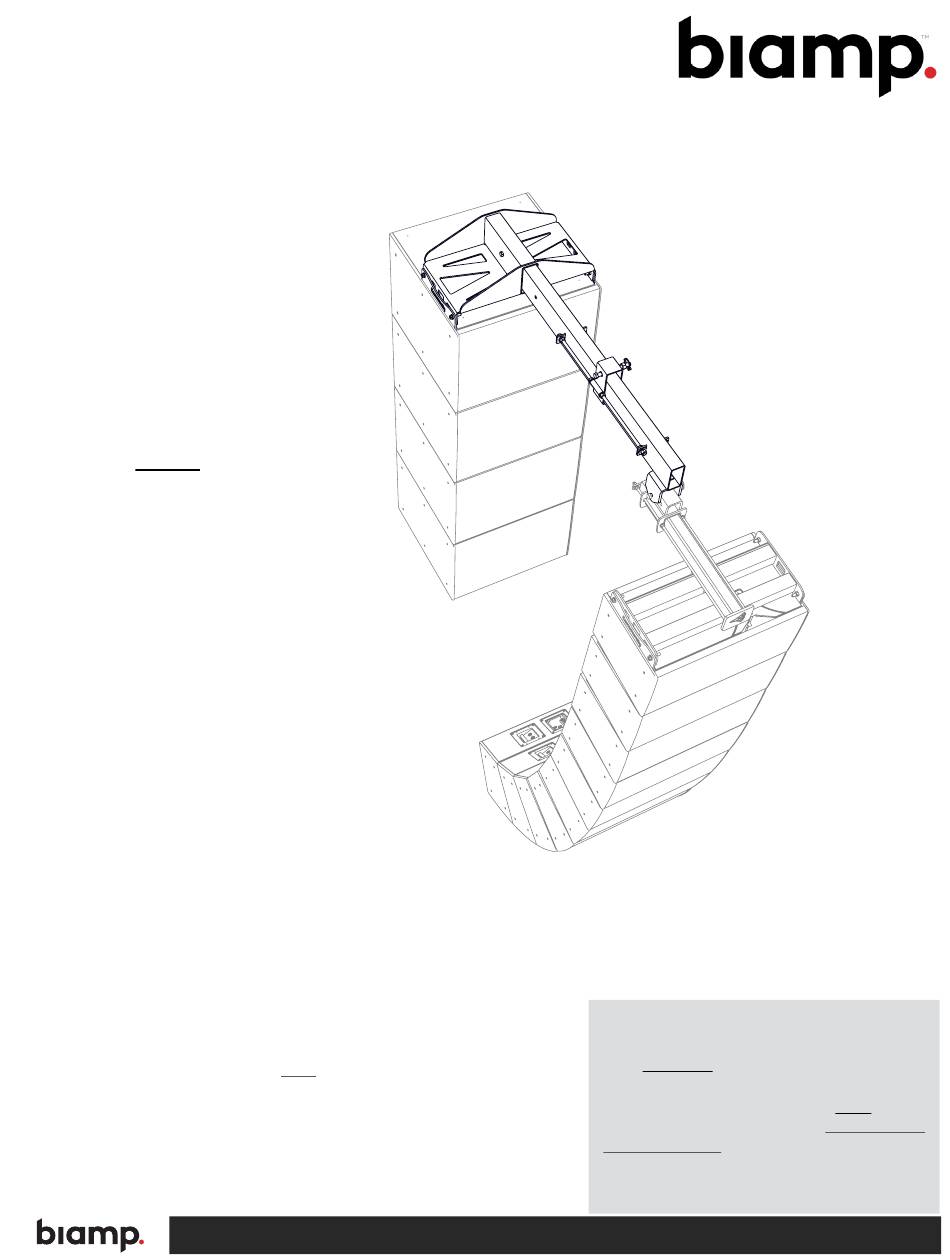

(shown with subs and attached to an IV6-GP-AF array)
9300 S.W. Gemini Drive Beaverton, OR 97008 USA

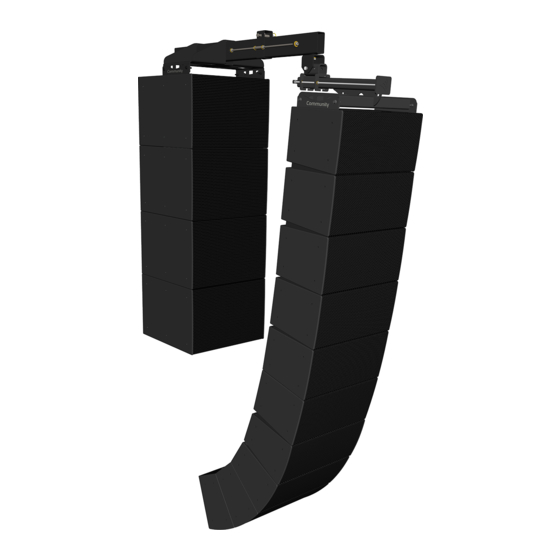

IV6 Sub Behind Array Frame
IMPORTANT:
illustrations in this manual are to be used
with INDOOR IV6 cabinets/models only.
The IV6-WR loudspeakers differ in width
and mounting points and will NOT fit this
array frame. Contact Biamp's
Support Group
mounting options for WR (outdoor) IV6
loudspeakers.
The
Instructions,
and
Loudspeaker
for information regarding
W:
www.biamp.c om

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Community I Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Biamp Community I Series

  • Page 1 INDOOR IV6 cabinets/models only. is available on the Biamp website <here> The IV6-WR loudspeakers differ in width and mounting points and will NOT fit this Loudspeaker array frame.
  • Page 2: Important Safety Instructions

    Contact your local dealer, which they will investigate claims. Make distributor, or call Biamp directly for assistance. These terms are defined as: sure to save the carton and the packing CAUTION: describes an operating condition or user action that may expose material, as most claims will be denied the equipment or user to potential damage or danger.
  • Page 3: System Design

    SYSTEM DESIGN All system designers incorporating IV6 arrays are encouraged to use EASE® Focus 3 (EF3) from AFMG to model the array(s). A link to the latest version is available on our website. Download the latest IV6 GLL file to utilize our customized VenuePolar™...
  • Page 4 SUB BEHIND ARRAY FRAME Hang up to eight (8) IV6 subwoofers behind the main indoor array APPLICATION: Connect to and suspend subwoofers behind a loudspeaker array. Before assembly: Determine the weight of the main array (from modeling the system in EASE® Focus 3). Connect S1 splay brackets to all but one of the subwoofers - that one will be mounted to the IV6-SB-AF.
  • Page 5 SUB BEHIND ARRAY FRAME (CONTINUED) ASSEMBLY (continued) 2. Move the carriage to the suggested hang point distance so that the frame Hardware will hang level under load. Refer to the (hex nuts, flat washers) (IV6 Sub-behind hang point calculator. Downloads) The hang point distance is measured from the front of the frame to the lift hole in the carriage.
  • Page 6 SUB BEHIND HANG POINT CALCULATOR Biamp provides an easy calculation tool to determine where the hang point should be located based upon the full weight of the main array when attached to the Sub Behind Array frame so that the SB-AF stays level. This tool calculates the distance for 1-4 subwoofers.
  • Page 7: Technical Drawing

    IV6-1122/15 73.5 (33.3) 59.1 (26.8) IV6-118S 132.9 (60.3) 99.3 (45.0) ACCESSORIES Weight Working Load Limit (available from Biamp) Indoor [lbs (kg)] [lbs (kg)] IV6-GP-AF 76 lbs (34.5kg) 1300 lbs (589.7 kg) IV6-LAF-PBB 23 lbs (10.4kg) 850 lbs (385.6 kg) IV6-SB-AF 108.0 (49.0)
  • Page 8 Web: support.biamp.com have occurred that are not covered in this manual. The latest version is available at on Warranty: biamp.com/legal/warranty-information the Biamp website <here> 9300 S.W. Gemini Drive Beaverton, OR 97008 USA www.biamp.c om IV6-SB-AF Installation 09FEB2021...

This manual is also suitable for:

Community iv6-sb-af
