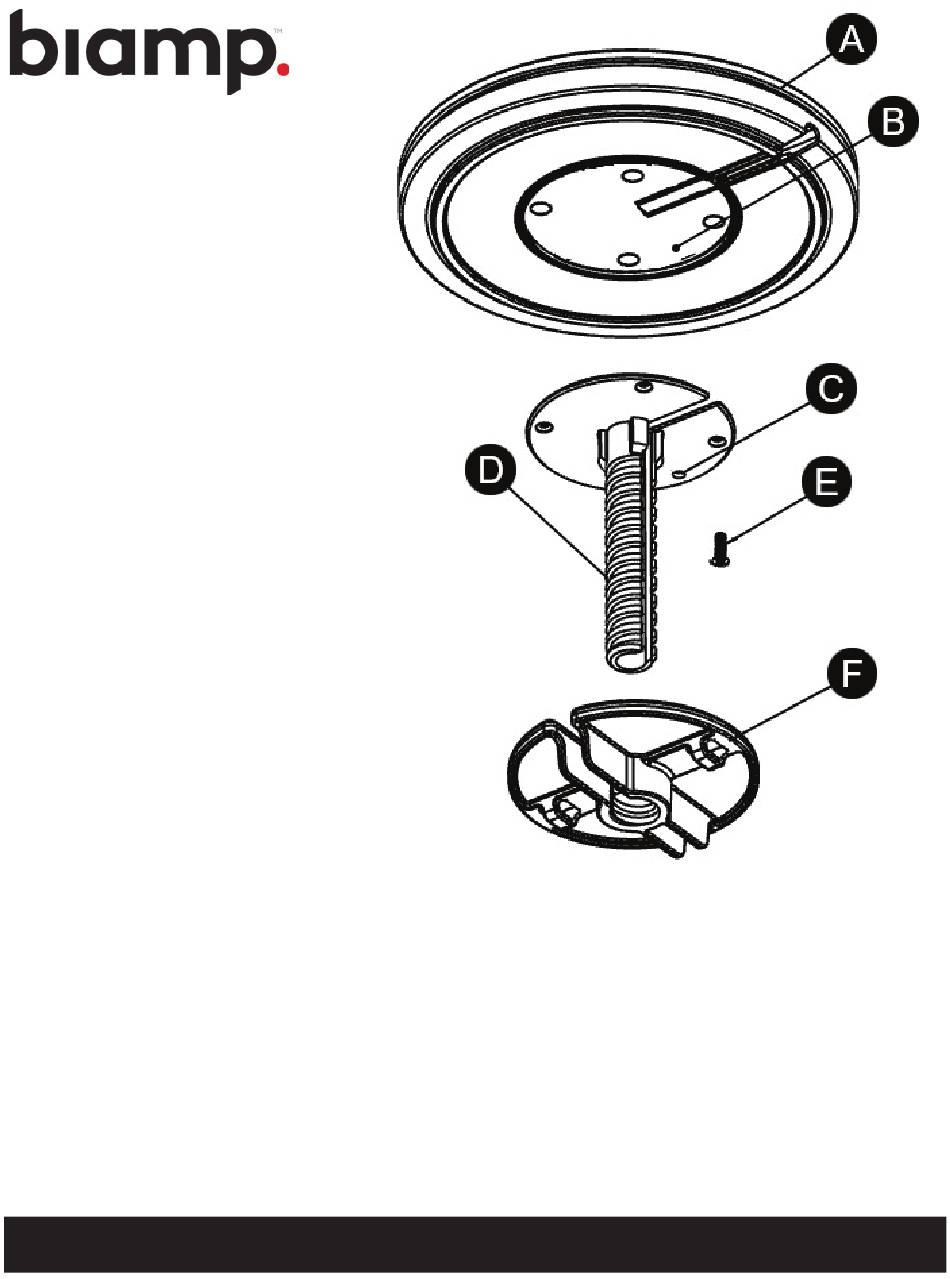

- Page 1 Secure Mount (TTM-X-SM) Tabletop Installation A) TTM-X Microphone B) Alignment Pin C) Alignment Hole D) Secure Mount Stem E) Mounting Screws (x4) D) Secure Mount Nut 585.0010 AUGUST 2019 9300 Gemini Drive, Beaverton, OR 97008 +1 877.242.6796 www.biamp.com...
- Page 2 INSTALLATION INSTRUCTIONS TTM-X MICROPHONE SECURE MOUNT STEM TABLETOP DRILL 5/8” (16 MM) SECURE MOUNT NUT DIA. HOLE MICROPHONE CABLE NOTE: The Secure Mount is designed for use on a table with a minimum thickness of 1/2” (13 mm) and maximum thickness of 2” (51 mm). Cut a 5/8 inch (16 mm) hole through the tabletop where the microphone is to be located.
