I SERIES

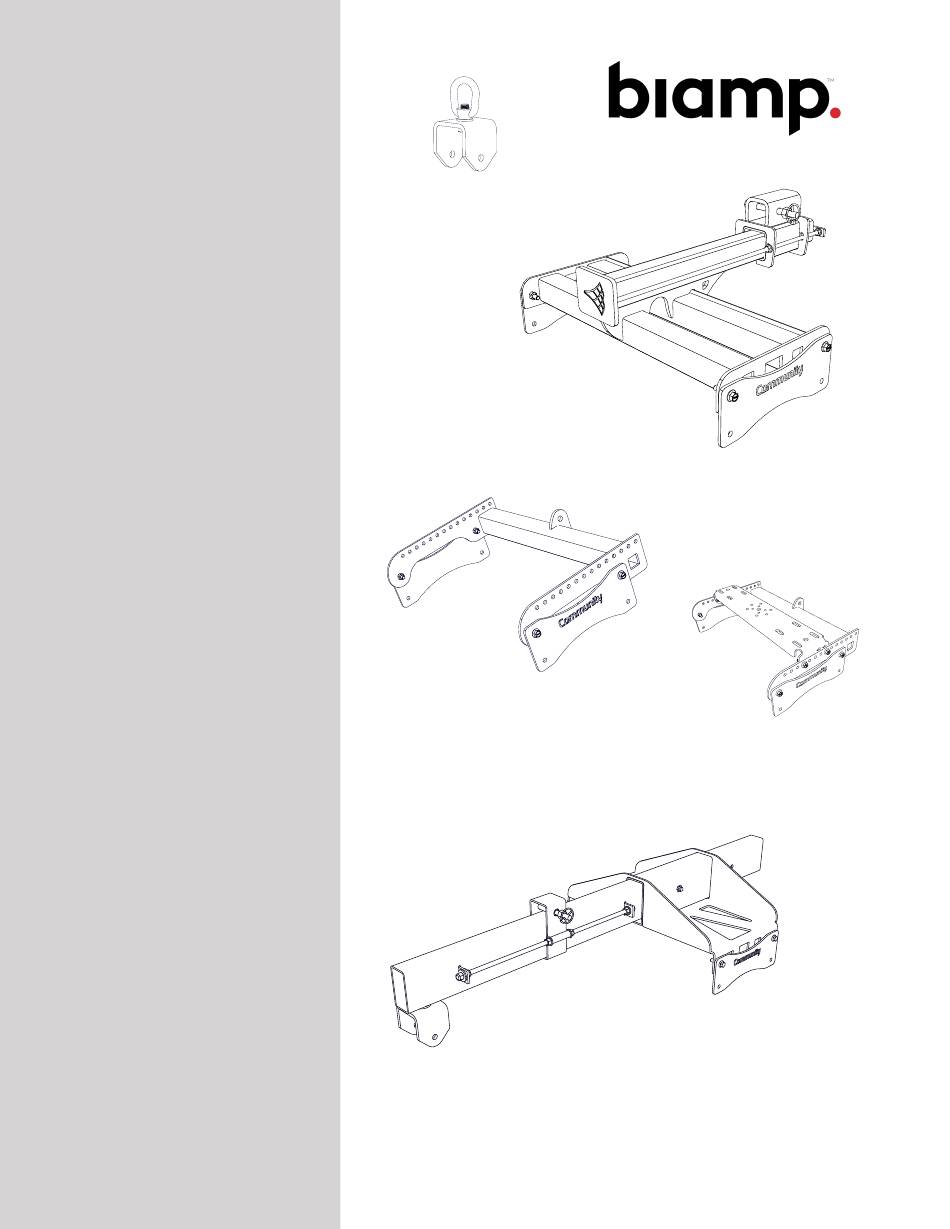

IV6 Rigging Frames,
Accessories, and
Safety Guide
(Indoor Elements Only)
Modular Vertical Array 600
Indoor Rigging Frames
IV6-GP-AF
IV6-LAF-PBB
IV6-LAU
IV6-SB-AF
PY1-EN750-1550
biamp.com
PY1-EN750-1550
Lift Point
IV6-GP-AF
IV6 GlidePoint™ Array Frame
IV6-LAF-PBB
IV6 Light Array Frame/Pullback Bar

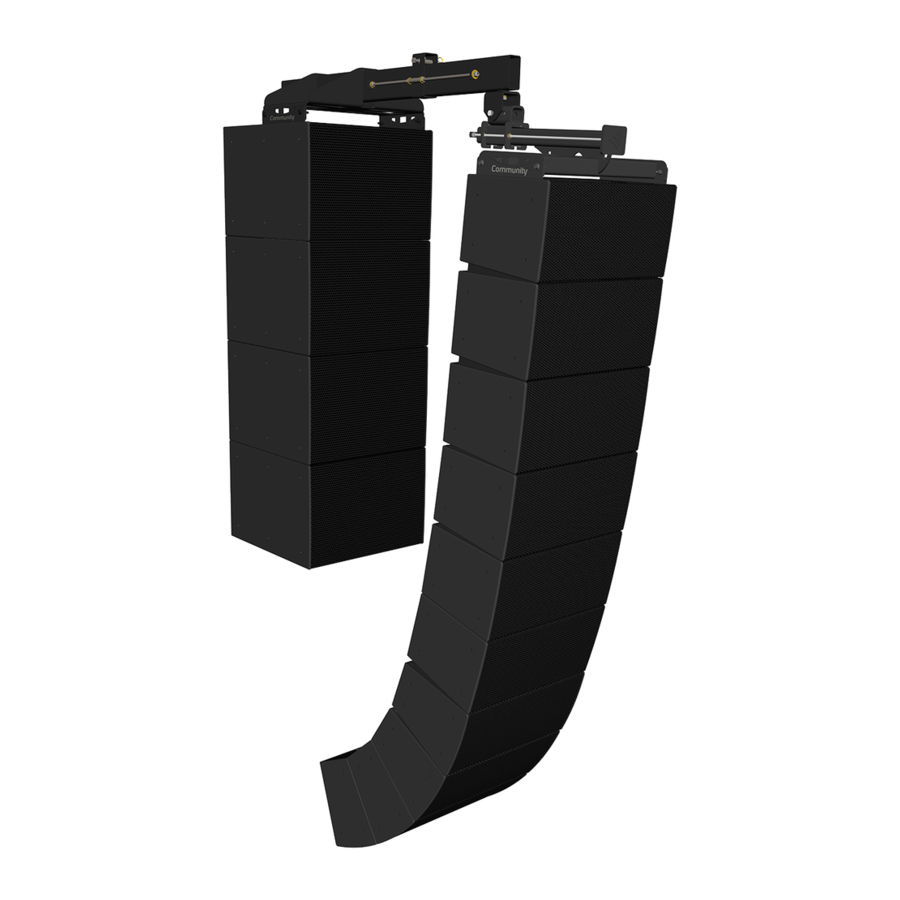

IV6 Sub Behind Array Frame
IV6-LAU
IV6 Light Array Frame
Adapter U-Bracket
(on the IV6-LAF-PBB)
IV6-SB-AF

Advertisement

loading
Need help?

Need help?

Do you have a question about the I Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Biamp I Series

  • Page 1 PY1-EN750-1550 Lift Point COMMUNITY I SERIES IV6-GP-AF IV6 Rigging Frames, IV6 GlidePoint™ Array Frame Accessories, and Safety Guide (Indoor Elements Only) IV6-LAF-PBB IV6 Light Array Frame/Pullback Bar IV6-LAU IV6 Light Array Frame Adapter U-Bracket (on the IV6-LAF-PBB) Modular Vertical Array 600...
  • Page 2: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS UNPACKING / INSPECTION Always follow these basic safety precautions when using or installing I SERIES loudspeakers and accessories: • Read these instructions prior to assembly, and keep for reference. Community I SERIES rigging accessories are engineered and manufactured to be rugged and they •...
  • Page 3 Biamp compromise the low-frequency performance with distortion, reduced output, and website for the latest version of possible premature driver failure. this manual. I SERIES IV6 Rigging Frames, Accessories and Safety Guide Page 3...
  • Page 4: System Design

    SYSTEM DESIGN Biamp encourages all system designers to use EASE® Focus 3 (EF3) [v 3.1.12, or later], to model the array. To simplify the IV6 system design and configuration process, we have developed a custom VenuePolar™ plugin for EASE Focus 3 ®...
  • Page 5 Figure 4. A. Loads tab B. Toggle to show all cabinets C. All cabinets shown Figure 5. EF3 Project report A. Create the report B. Pages from a sample report I SERIES IV6 Rigging Frames, Accessories and Safety Guide Page 5...
  • Page 6 • After the carriage is in its final position (and the system is aimed), one at a time, loosen each nut a few threads, apply a drop of red thread-locking compound, and re-tighten the nut. This will help prevent movement of the carriage over time. Page 6 IV6 Rigging Frames, Accessories and Safety Guide I SERIES...
  • Page 7 2.50" [63.5] 2.50" [63.5] 13.13" [333.4] 11.12" [282.3] .25" [6.3] 26.70" [678.1] 3.19" [81.0] .47" [11.9] (TYP SLOT) .44" [11.1] 5.00" [127.0] (TYP SLOT) RIGGING CONNECTOR PLATE-2 PCS 13.13" [333.4] I SERIES IV6 Rigging Frames, Accessories and Safety Guide Page 7...
  • Page 8 Do not place under before recalculating array suspension forces load until connections are tight! and resultant safety factors. Page 8 IV6 Rigging Frames, Accessories and Safety Guide I SERIES...
  • Page 9 (TYP SLOT) Ø.40" [Ø10.2] 1.00" [25.4] (TYP) (TYP) .61" [15.5] RIGGING CONNECTOR PLATE-2 PCS .60" [15.2] .34" [8.7] 5.62" [142.7] 3.59" [91.2] 1.96" [49.8] 2.19" [55.7] 11.12" [282.3] 3.81" [96.7] I SERIES IV6 Rigging Frames, Accessories and Safety Guide Page 9...
  • Page 10 The IV6-LAU must be used with the IV6-LAF-PBB Array Frame. It is designed to support a variety of ancillary array mounting configurations and as a tool to integrate IV6 indoor arrays with I SERIES BalancePoint™ Flyware and other 3rd party mounting systems.
  • Page 11 The IAF55 may also be combined with the SBR54. For this application, the IV6-LAU must be bolted to the IV6-LAF-PBB in the 0° position. I SERIES BalancePoint Flyware instructions are available by following this link to the Community website: www.communitypro.com/products/iseries and finding BalancePoint Flyware.
  • Page 12 IV6-LAU APPLICATIONS (CONTINUED) 5. Attach an I SERIES COMPACT (IC6) loudspeaker to the bottom of an IV6 array for downfill applications. Attach the IV6-LAU to the IV6-LAF-PBB frame as close as possible beneath the center of mass of the array. Connect the IC6 yoke to the IV6-LAU securely.
  • Page 13 Additional rigging accessories are available from Polar Focus - See SB-1. Determine sub mounting position table on Page 18 of this manual. (Reposition frame, forward if needed, using installed bolt/nut) I SERIES IV6 Rigging Frames, Accessories and Safety Guide Page 13...
  • Page 14 Repeat for each of the 4 C-HN hex nuts securing the carriage on the threaded rods. This will help prevent movement of the carriage over time. SB-4. Attach Lift Point to carriage hang point Page 14 IV6 Rigging Frames, Accessories and Safety Guide I SERIES...
  • Page 15 1.00" [25.5] 1.19" [30.2] 1.19" [30.2] 1.25" [31.7] 1.25" [31.7] .37" [9.5] .37" [9.5] 3.25" [82.6] 3.25" [82.6] 4.00" [101.6] 4.00" [101.6] .66" [16.8] .66" [16.8] 11.12" [282.3] 11.12" [282.3] I SERIES IV6 Rigging Frames, Accessories and Safety Guide Page 15...
  • Page 16 SUB BEHIND HANG POINT CALCULATOR Biamp provides an easy calculation tool to determine where the hang point should be located based upon the full weight of the main array when attached to the Sub Behind Array frame so that the SB-AF stays level. This tool calculates the distance for 1-4 subwoofers.
  • Page 17 IV6-SB-AF. IV6-GP-AF label. Technical Drawing PY1-EN750-1550 4.00" [101.6] .38" [9.5] 3.25" [82.6] 2.00" [50.8] 4.06" [103.2] R.83" [R21.1] 8.43" [214.0] 4.44" [112.7] Ø.63" [Ø15.9] 1.19" [30.2] I SERIES IV6 Rigging Frames, Accessories and Safety Guide Page 17...
  • Page 18 All PY0/PY1 brackets shown are infinitely adjustable, and will connect to the carriage hang points on the IV6-GP-AF and IV6-SB-AF. On the IV6-GP-AF Rigging images courtesy of Polar Focus Page 18 IV6 Rigging Frames, Accessories and Safety Guide I SERIES...
  • Page 19 1550 lbs (703.1 kg) TYPICAL PRODUCT LABELS IV6-GP-AF IV6-GP-AFW WLL: 1300 lbs (589.7 kg) Working Load Limit @10:1 Design Factor Typical product identification, warning and WLL labels on accessories (IV6-GP-AF SHOWN) I SERIES IV6 Rigging Frames, Accessories and Safety Guide Page 19...
  • Page 20 However, due to ongoing technical advances, changes or modifications may have occurred that are not covered in this manual. The latest version is available at support.biamp.com. www.biamp.c om 9300 S.W. Gemini Drive Beaverton, OR 97008 USA...
