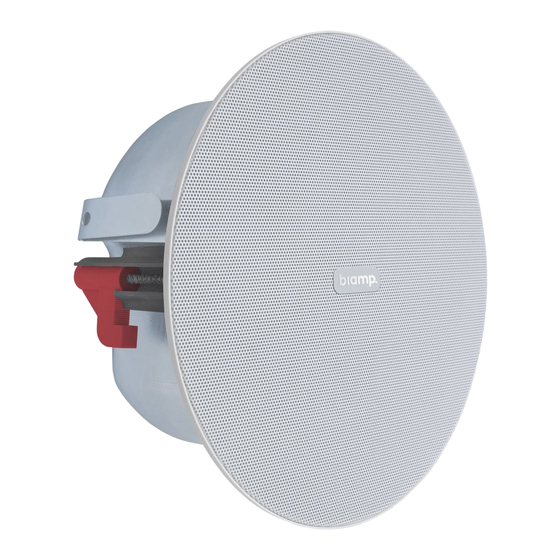

Biamp Desono SPA-TR100 Installation Manual

Desono™
Ceiling Loudspeaker Accessories
Trim Ring
Installation Guide
Biamp offers four sizes of Trim Rings (TR) allowing the
Desono CM, C-IC6 and D Series ceiling loudspeakers to
fit in existing holes (up to 279 mm (11") in the ceiling. The
illustrations shown are typical installations in drywall and
drop ceilings Please refer to the appropriate Installation and
Operation guide for additional information on installation
methods.

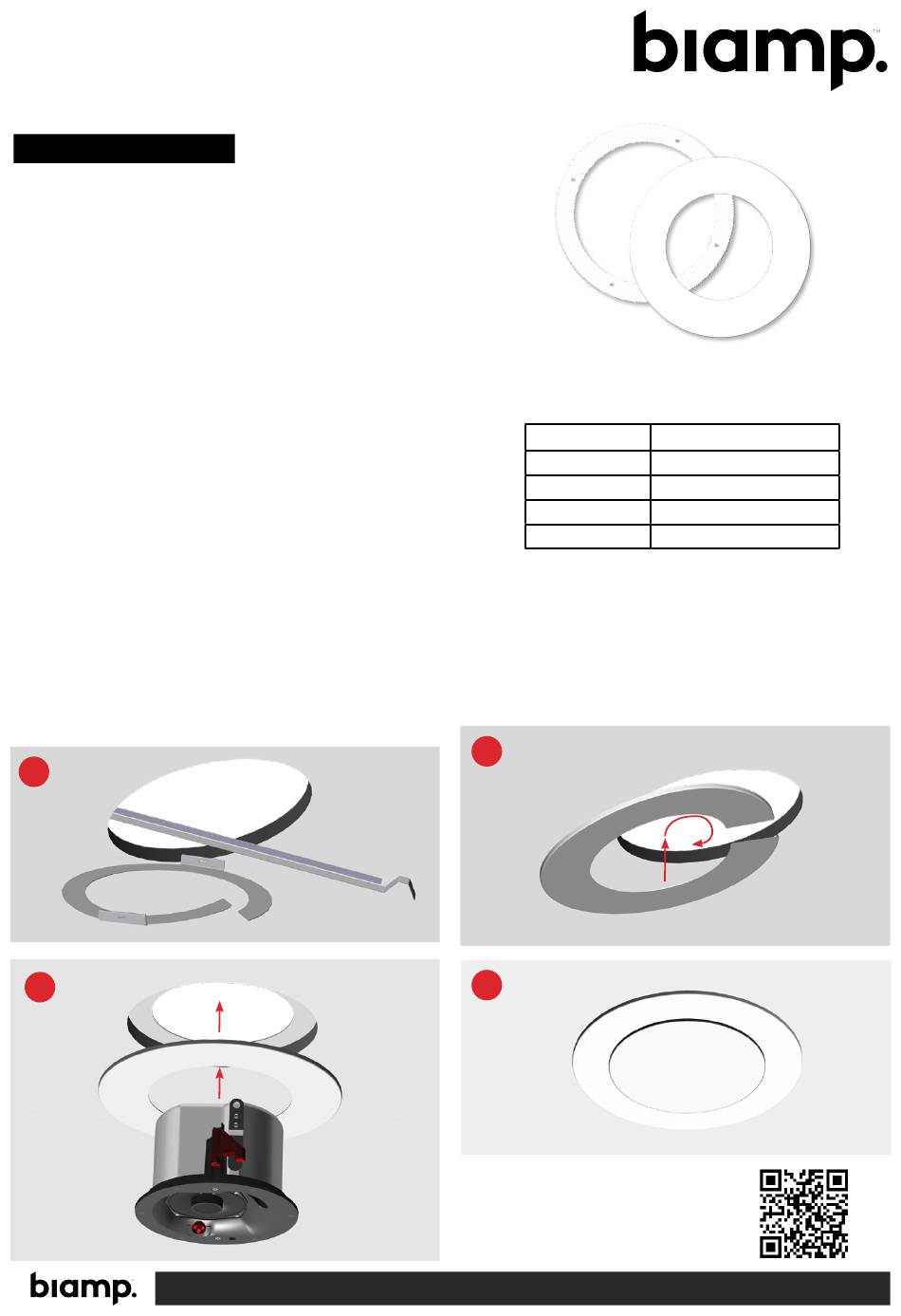

Drywall Ceiling Installation
1. D & C-IC6: If possible, insert tile rails (and C-Ring)
into the ceiling and center on the opening. Using the
tile rails spreads the weight better. If the ceiling won't
accept a pair of tile rails, or if you are installing a CM
model, a second trim ring can be used above the
drywall to support the loudspeaker. Cut the trim ring
to allow it to fit into the hole.
Note: If using D Series tile rails/C ring above the ceiling, cut the
C-Ring to allow it to flex enough to turn it in through the ceiling.
2. Flex, insert and turn the C-ring or trim ring (rim up)
to fit it above the ceiling. If applicable, attach the
C-ring to the rails. Center the ring in the opening.
3. With the dog ears moved up and rotated in, insert
the loudspeaker up through a trim ring and into the
ceiling.
Note: D Series CATR only - Insert plugs in the holes in the trim
ring before installing to preserve smooth appearance.
1
3
A:
C-IC6 rails & C-ring
9300 S.W. Gemini Drive Beaverton, OR 97008 USA
SPA-TR
Trim Ring
Model
SPA-TR100
SPA-TR200
D45-CATR
D6-CATR
4. Support the loudspeaker and screw the dog ears
back out and down. Ensure the loudspeaker is
turned so a dog ear is not positioned over the slot
in the top trim ring/C-ring. Set tap setting and install
grille per the model's instructions.
2
(Cut trim ring shown)
4
Scan this QR-code and navigate to
your loudspeaker model to download
the appropriate installation guide
bia.mp/DesonoCeiling_pubs
Fits
CM20DTS, CM30DTD
CM60DTD
D4LP, D4, D5
C-IC6, D6
Rotate to place above ceiling
