Touch 8 Control Panel Accessories
Installation Guide
Concrete Wall Mount
Model Name
Apprimo 8-WMA
Apprimo 8-WMF
Apprimo 8-WMC
Apprimo 8-WML
* Shown connected to a single gang box (US). Mounting base plate will accept most gang box types.
** Anchoring / mounting hardware and gang boxes are not included and must be appropriate for the surface and conform
to local building codes
A:
Angled Wall Mount *
Description
Angled wall mount bracket
Flat wall mount bracket
Concrete (surface) wall mount
Low profile wall mount bracket
9300 S.W. Gemini Drive Beaverton, OR 97008 USA
Flat Wall Mount *
Low Profile - custom back box
Mounting Type**
To drywall or gang box
To drywall or gang box
To a solid surface wall
For drywall / sheet rock
W:
www.biamp.com
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Biamp Apprimo 8-WMA
Summary of Contents for Biamp Apprimo 8-WMA

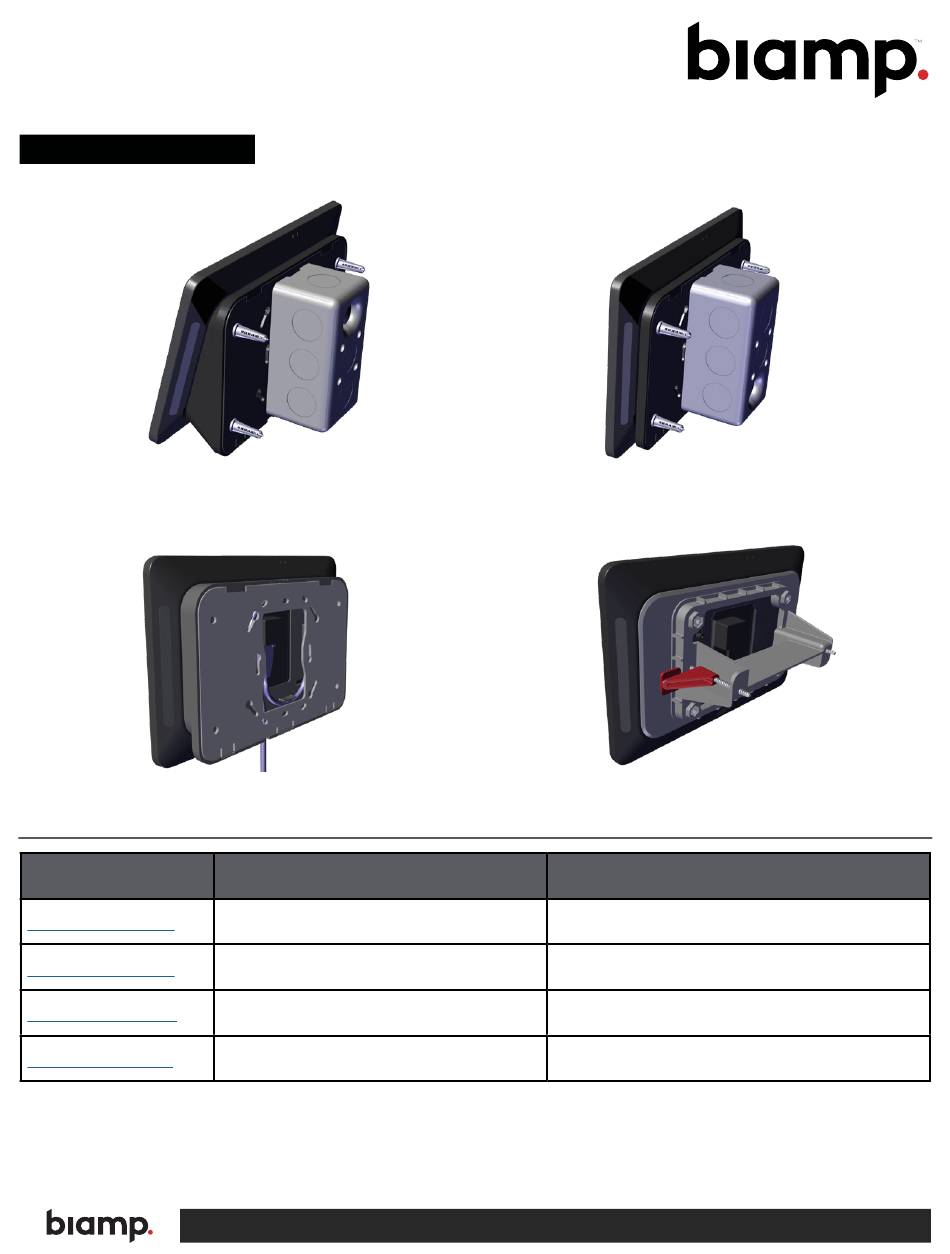

- Page 1 Flat Wall Mount * Concrete Wall Mount Low Profile - custom back box Model Name Description Mounting Type** Apprimo 8-WMA Angled wall mount bracket To drywall or gang box Apprimo 8-WMF Flat wall mount bracket To drywall or gang box...
- Page 2 MOUNTING ACCESSORY INSTALLATION It is necessary to remove the Table Mount from the control panel in order to mount the panel to any of the accessory wall mounting options. The instructions to remove the table mount are below. Do this before proceeding with the accessory mount instructions.
-
Page 3: Install Wall Plate
FLAT / ANGLED WALL MOUNT BRACKET Apprimo 8-WMF / Apprimo 8-WMA) Install wall plate 1. Attach wall plate directly to the wall with screw anchors or screw it to a gang box (most gang box styles are 70 mm supported). Orient the plate with the arrows pointing up. - Page 4 FLAT / ANGLED WALL MOUNT BRACKET (CONTINUED) Installation (continued) 4. Insert network cable into port on the back of the control panel. 5. Mount the panel on the wall plate by hanging it on the top tabs then rotating in and clipping into the bottom tab. Ensure the tab is fully engaged (see circled views).
-
Page 5: Installation
CONCRETE WALL MOUNT BRACKET Apprimo 8-WMC) Installation 1. Securely attach wall plate directly to the wall with concrete anchors (or construction adhesive). Orient the plate with the arrows pointing up. 2. Attach wall mount base to control panel - fit clips in control panel back (a), and slide up (b). - Page 6 LOW PROFILE MOUNT BRACKET Apprimo 8-WML) Installation Network cabling must be routed to the desired panel location. 1. Cut a rectangular hole in the wall (drywall or sheet rock). Dimensions H x W: 90 x 122 mm (3.5 x 4.8") Note:The hole must have clearance of 25mm (1") on either side of the hole to accommodate the full clamp rotation.
- Page 7 LOW PROFILE MOUNT BRACKET (CONTINUED) Installation (continued) 5. Plug network cable in the back of the control panel and feed excess wire into the wall. 6. Position the panel's backplate aligned with, and against all four magnets in the low profile bracket. The panel will be held securely on the wall. Apprimo Touch 8 Accessories Installation Guide page 7...
- Page 8 CONTACT US Email: support@biamp.com Warranty: biamp.com/legal/warranty-information Web: support.biamp.com Safety & Compliance: biamp.com/compliance 9300 S.W. Gemini Drive Beaverton, OR 97008 USA www.biamp.com 14MAR2023...
