I SERIES
IV6-LAU
for Indoor

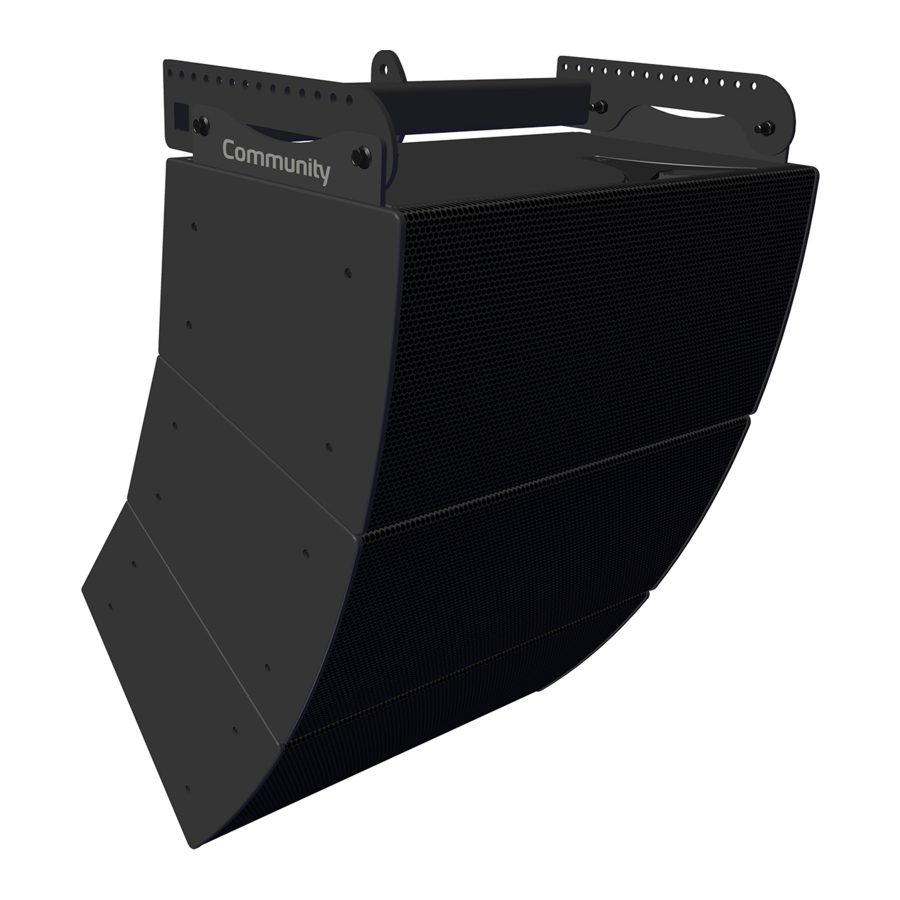

IV6 Modular Vertical Arrays
The IV6 Rigging Frames, Accessories and Safety Guide
(a complete set of instructions including all of the IV6
indoor rigging frames, accessories and information)
is available on the Biamp website <here>
A:
9300 S.W. Gemini Drive Beaverton, OR 97008 USA

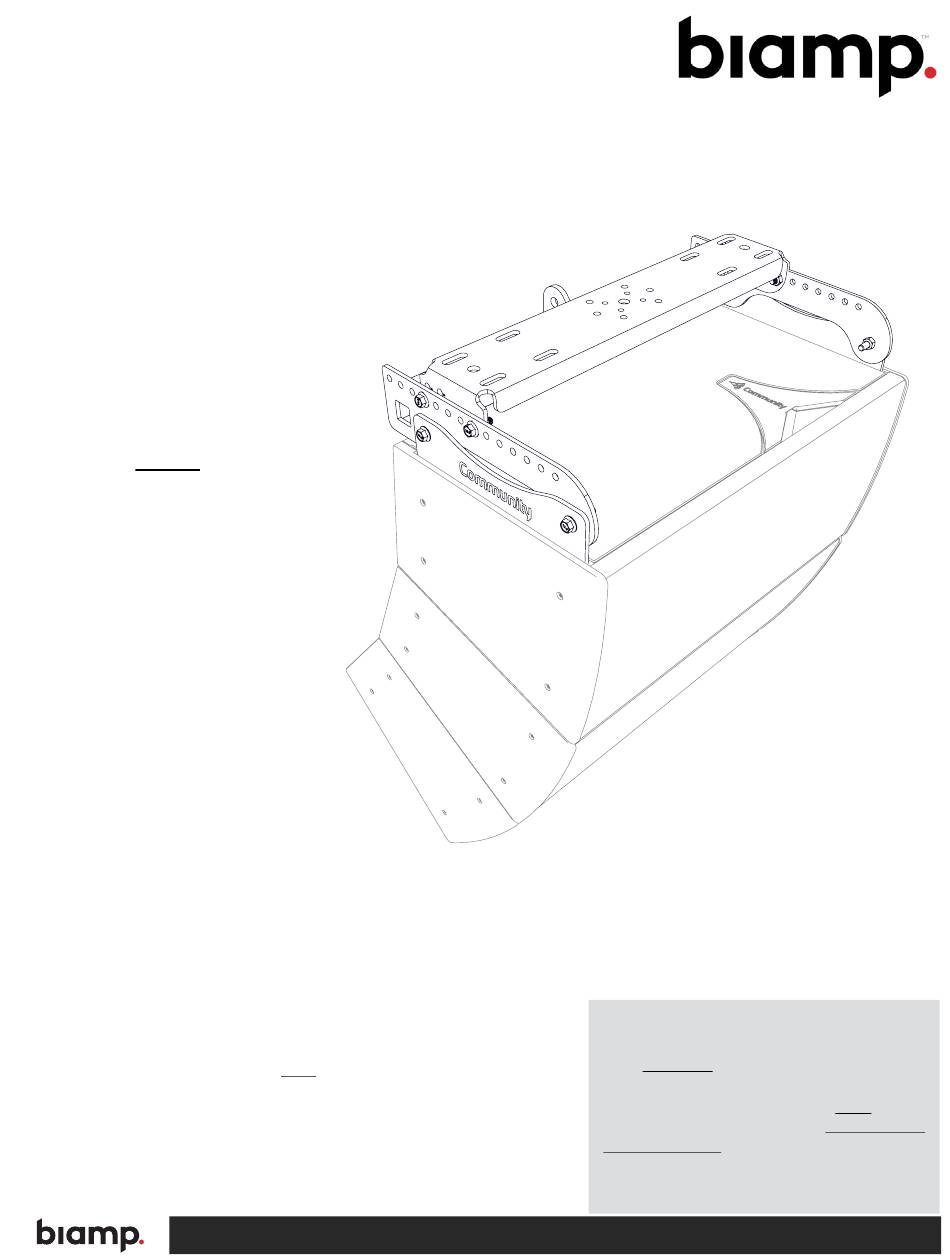

IV6 Light Array Frame Adapter U-Bracket
(shown with the IV6-LAF-PBB and loudspeakers)
IMPORTANT:
The
illustrations in this manual are to be used
with INDOOR IV6 cabinets/models only.
The IV6-WR loudspeakers differ in width
and mounting points and will NOT fit this
array frame. Contact Biamp's
Support Group
for information regarding
mounting options for WR (outdoor) IV6
loudspeakers.
Instructions,
and
Loudspeaker
W:
www.biamp.c om
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Biamp COMMUNITY I Series
Summary of Contents for Biamp COMMUNITY I Series
- Page 1 INDOOR IV6 cabinets/models only. is available on the Biamp website <here> The IV6-WR loudspeakers differ in width and mounting points and will NOT fit this Loudspeaker array frame.
-
Page 2: Important Safety Instructions
Contact your local dealer, which they will investigate claims. Make distributor, or call Biamp directly for assistance. These terms are defined as: sure to save the carton and the packing CAUTION: describes an operating condition or user action that may expose material, as most claims will be denied the equipment or user to potential damage or danger. -
Page 3: System Design
SYSTEM DESIGN All system designers incorporating IV6 arrays are encouraged to use EASE® Focus 3 (EF3) from AFMG to model the array(s). A link to the latest version is available on our website. Download the latest IV6 GLL file to utilize our customized VenuePolar™... - Page 4 LIGHT ARRAY FRAME ADAPTER U-BRACKET The IV6-LAU must be used with the IV6-LAF-PBB Array Frame. It is designed to support a variety of ancillary array mounting configurations and as a tool to integrate IV6 arrays with I SERIES BalancePoint™ Flyware and other 3rd party mounting systems.
- Page 5 IV6-LAU must be bolted to the IV6-LAF-PBB in the 0° position. I SERIES BalancePoint™ Flyware instructions are available by following this link to the Biamp website: <here> and finding BalancePoint™ Flyware. IMPORTANT: No more than three (3) cabinets should be mounted to the IV6-LAF-PBB when using the IV6-LAU as the upper mounting point.
- Page 6 IV6-LAU APPLICATIONS (CONTINUED) 5. Attach an I SERIES COMPACT (IC6) loudspeaker to the bottom of an IV6 array for downfill applications. Attach the IV6- LAU to the IV6-LAF-PBB frame as close as possible beneath the center of mass of the array. Connect the IC6 yoke to the IV6-LAU securely.
-
Page 7: Technical Drawing
IV6-1122/15 73.5 (33.3) 59.1 (26.8) IV6-118S 132.9 (60.3) 99.3 (45.0) ACCESSORIES Weight Working Load Limit (available from Biamp) Indoor [lbs (kg)] [lbs (kg)] IV6-GP-AF 76 lbs (34.5kg) 1300 lbs (589.7 kg) IV6-LAF-PBB 23 lbs (10.4kg) 850 lbs (385.6 kg) IV6-SB-AF 108.0 (49.0) - Page 8 Web: support.biamp.com have occurred that are not covered in this manual. The latest version is available at on Warranty: biamp.com/legal/warranty-information the Biamp website <here> 9300 S.W. Gemini Drive Beaverton, OR 97008 USA www.biamp.c om IV6-LAU Installation 09FEB2021...
