INSTALLATION

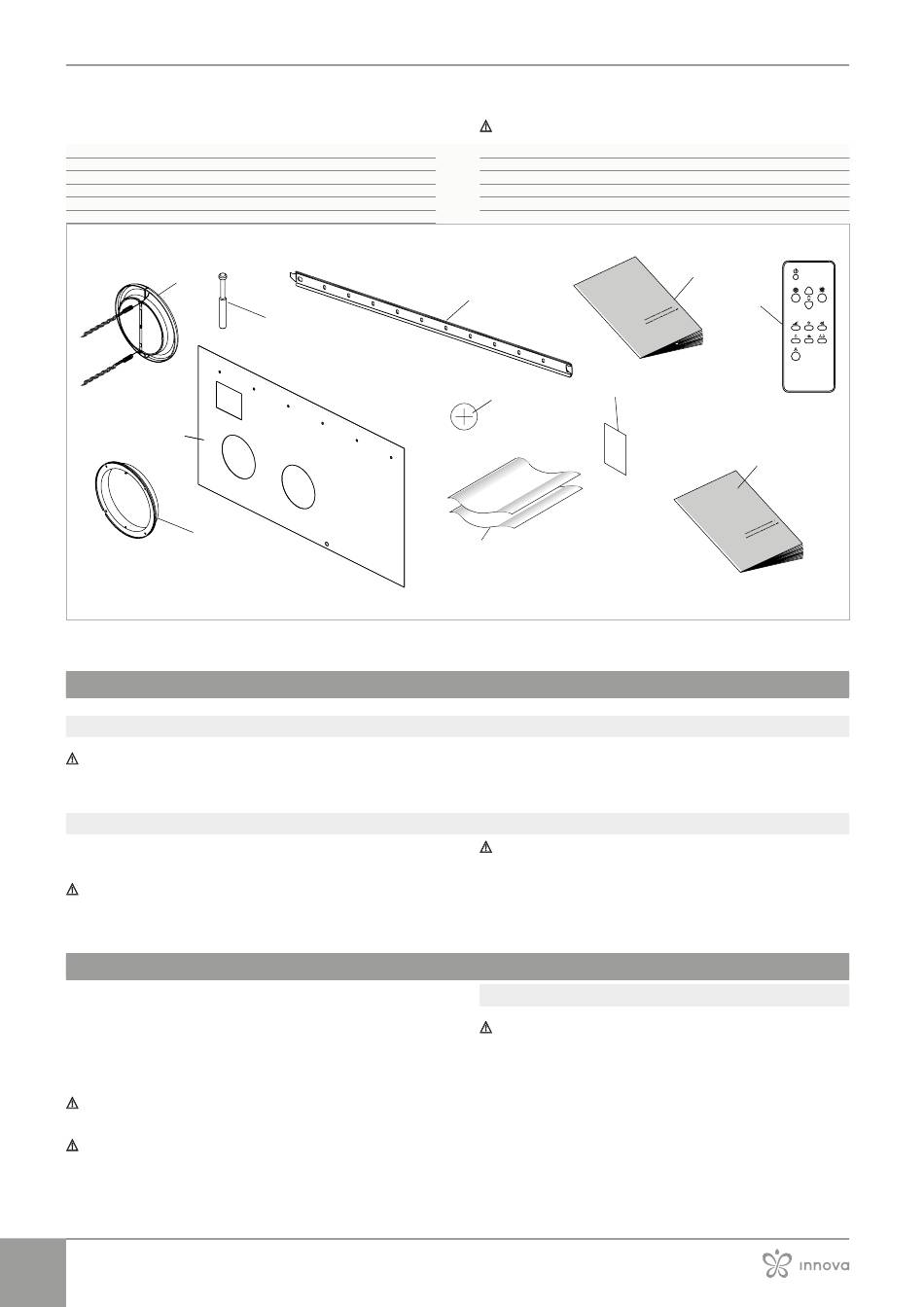

Accompanying material
They are included with the appliance, inside the packaging:
A
External fixed grid for air inlet and outlet (2 pcs front view)
B
Screws and dowels kit (6 pcs)
C
Wall mounting bracket
D
Control panel user manual
E
Remote control
F
Paper template for holes
A
F
2�7 Handling without packaging
Preliminary warnings
The appliance must be handled only by qualified person-
nel, adequately equipped and with equipment suitable
for the weight and dimensions of the appliance.
Movement methods
Boxes can either be carried singularly by hand by two opera-
tors or loaded on a forklift truck even stacked.
Check the indications on the packaging for the number of
stackable packages.
2�8 Installation site
The location of the appliance must be determined by the
plant engineer or a competent person and must take into ac-
count both purely technical requirements and any national/
local legislation in force.
This appliance is designed for vertical, low-wall or high-wall
indoor installation.
The appliance must be installed against a wall communi-
cating with the outside.
The appliance is stated as having an IPX0 protection rat-
ing, therefore it is not suitable for outdoor installation and
in rooms with presence of water (swimming pool rooms,
etc.).
14
B
K
Check the presence of the individual components.
G
CR2025 3V remote control battery
H
Wall inlet pipes (2 pcs)
I
Energy efficiency label
J
Control panel installation manual
K
Internal flanges
C
I
G
A +
+
A
H
In manual operation it is compulsory to respect always the
maximum weight per person provided for by the national
laws and standards.
Preliminary warnings
Avoid installing the unit near:
• obstacles or barriers that cause recirculation of the ex-
haust air
• narrow places where the sound level of the appliance can
be enhanced by reverberations or resonances
• environments with the presence of flammable or explo-
sive gases
• very humid environments (laundries, greenhouses, etc.)
• environments with aggressive atmospheres
D
E
J
