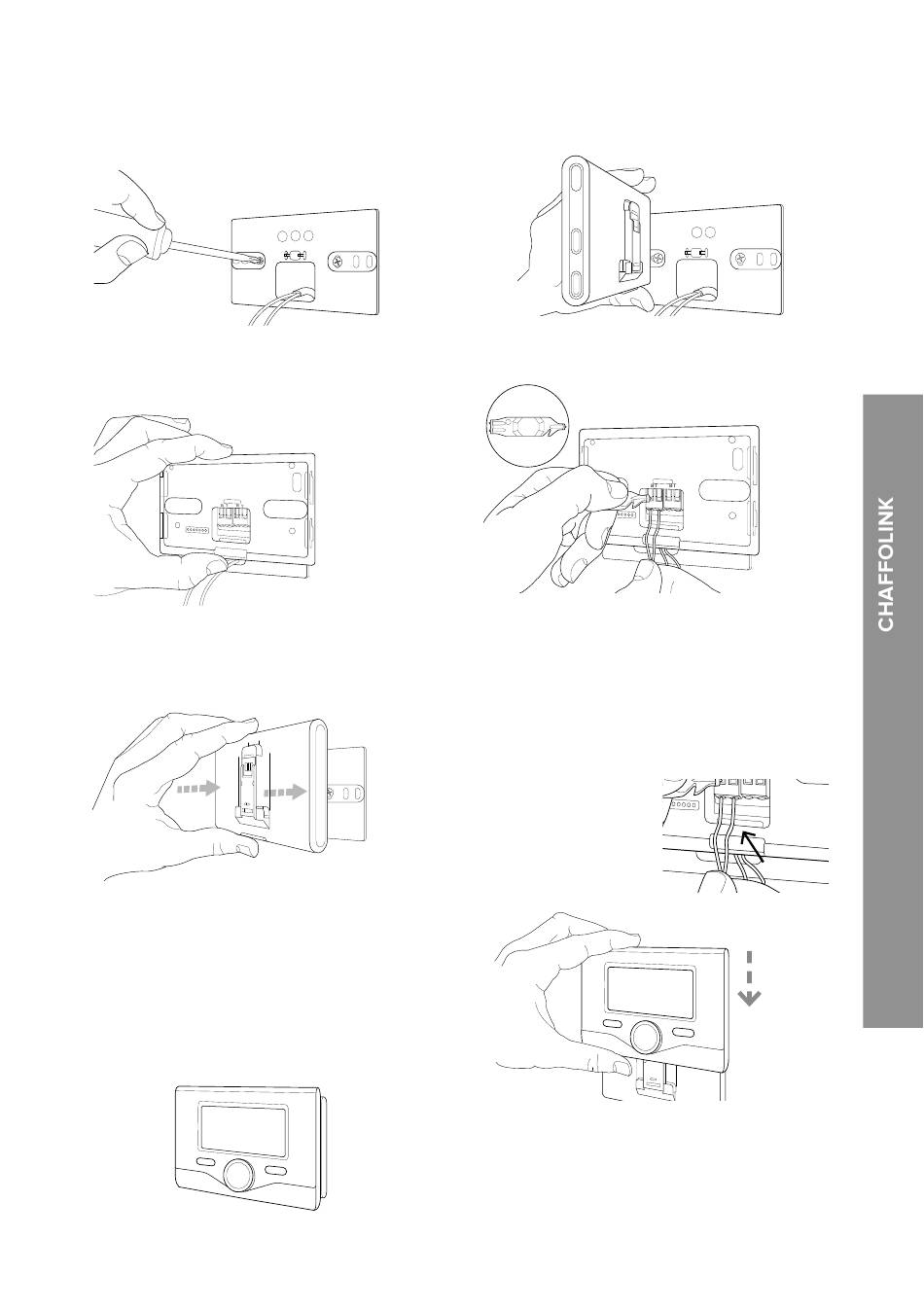

4.3 Installation of gateway to wall
1
Screw the support plate into the wall
using the supplied screws
3
Fix the gateway temporarily to the plate
using the hooks
5
Remove the gateway from the tempora-
ry position (Figure 2) and attach it to the
plate, pressing along the sides until you
hear the four small side hooks click.
2
Rotate the gateway
4
Connect the pair of cables from the Brid-
geNet BUS connector on the boiler PCB
to the BridgeNet BUS connector on the
gateway (respecting pole B with B and
pole T with T)*. Use the included tool to
press the tabs lightly.
*
for easier connection of
the cables, the plastic
tab can be removed, as
shown in the fi gure..
6
Fit Ariston Sensys (if present, otherwise
insert the cover found in the package) on
the base, pushing it gently downwards.
