Type 5

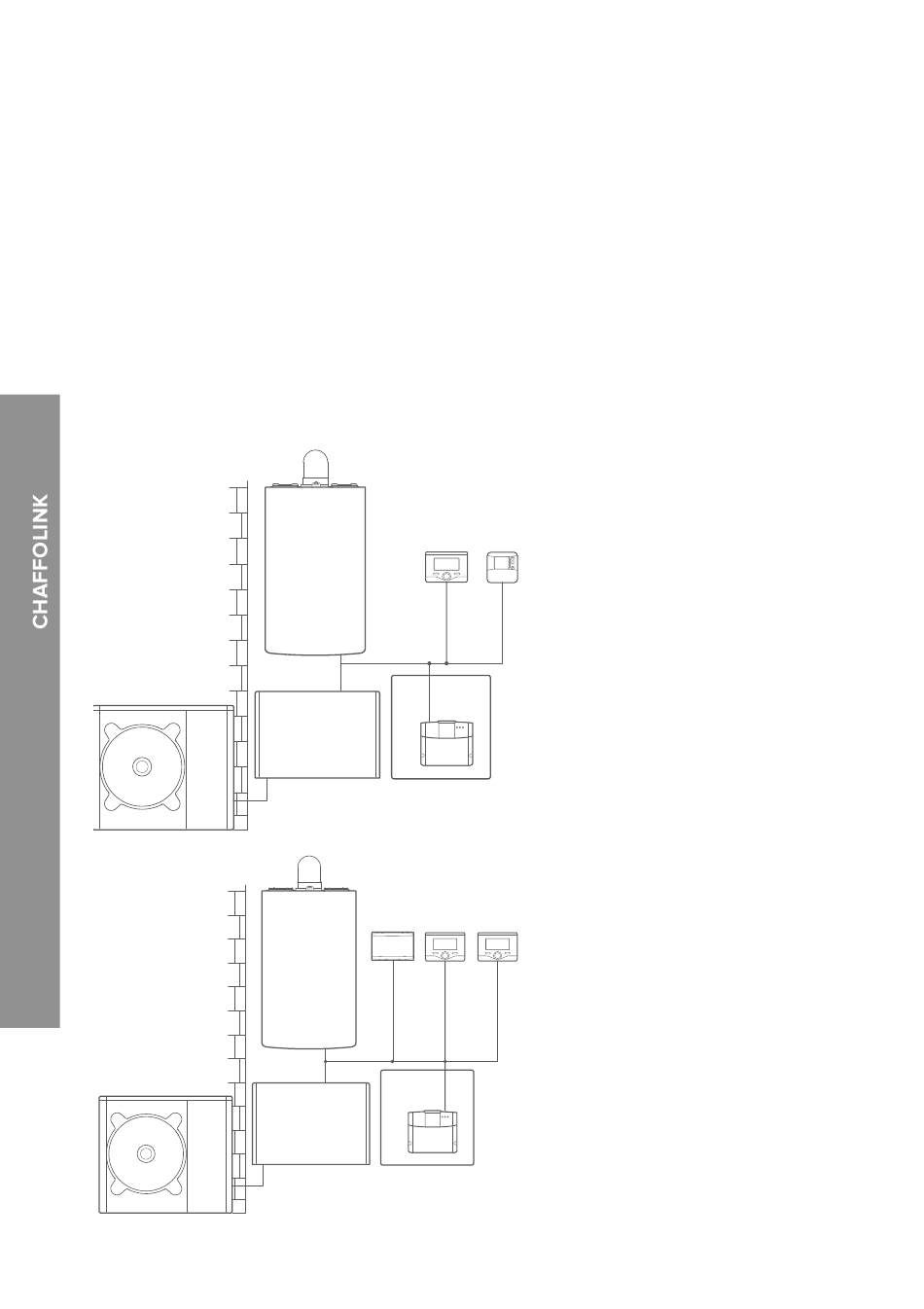

Activation of RD and RC in a hybrid system with up to 2 hydraulic zones con-
trolled by BUS devices (Fig. 9)
System fi tted with the Chaff oteaux product, to which BUS zone management acces-
sories are connected, such as Chaff oteaux Expert Control and/or Ambient Sensor. It
is possible to remotely control the cooling function, if available.
Actions required (Fig. 4):
- Install the gateway by connecting it to the heating system via the BUS connection
- Replace the Ambient Sensor with Chaff oteaux Expert Control
- Install the zone manager kit designed for controlling the cooling function (3319079)
62
EXPERT
CONTROL ROOM SENSOR
BUS
KIT ZONE
MANAGER
EXPERT CONTROL
GATEWAY
BUS
KIT ZONE
MANAGER
fi g.9
fi g.10
