CHAFFOTEAUX ChaffoLINK Assembly And Operation Manual page 59

Type 2

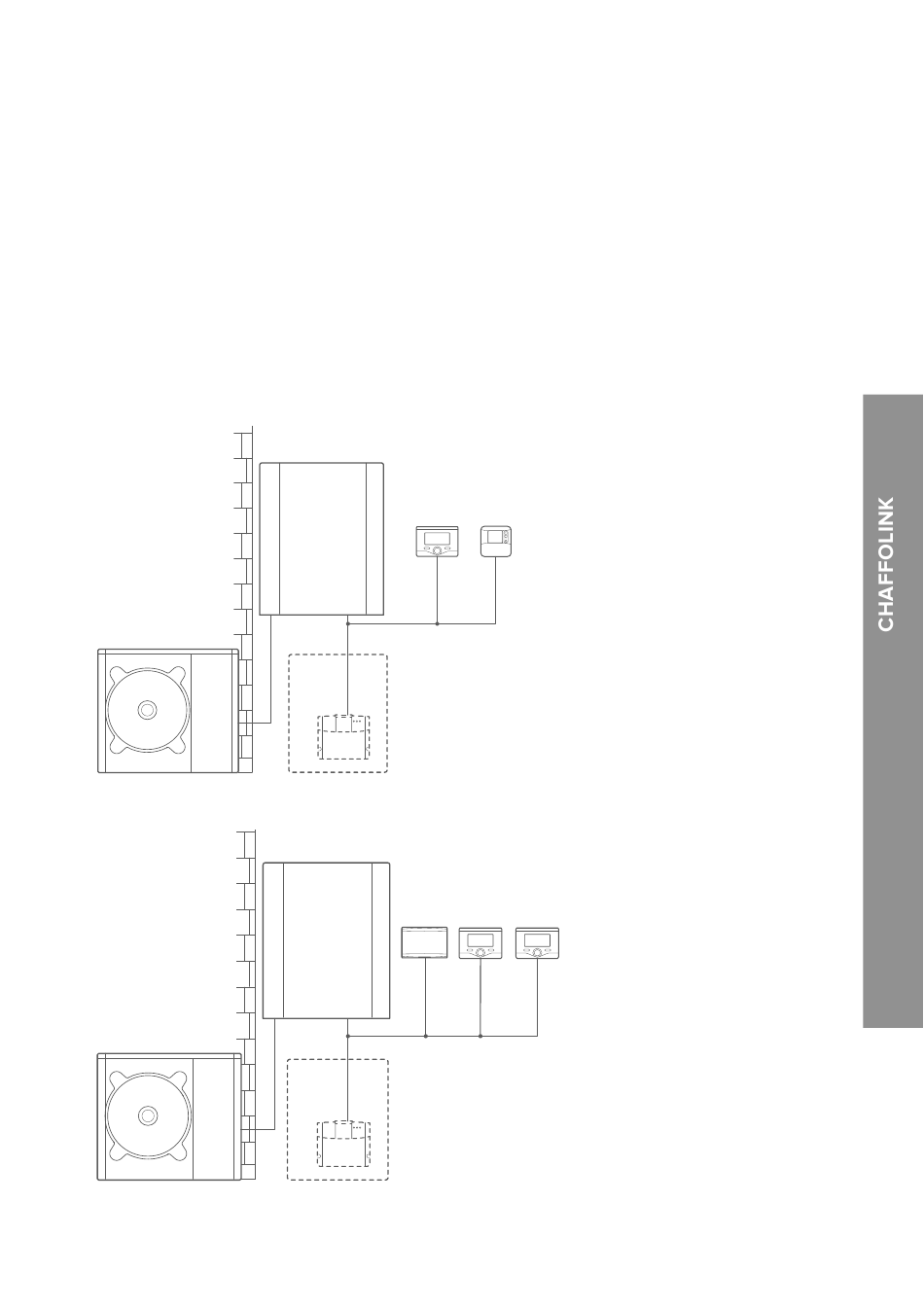

Activation of RD and RC in a system with heat pump and 2 hydraulic zones (inte-
grated or external zone manager) controlled by BUS devices (Fig. 3)
System fi tted with the Chaff oteaux product, to which BUS zone management acces-
sories are connected, such as Chaff oteaux Expert Control and/or Ambient Sensor. It
is possible to remotely control the cooling function, if available.
Actions required (Fig. 4):
- Install the gateway by connecting it to the heating system via the BUS connection
- Replace the Ambient Sensor with Chaff oteaux Expert Control
EXPERT
CONTROL
ROOM SENSOR
BUS
EXPERT CONTROL
GATEWAY
BUS
fi g.3
fi g.4
59
