CHAFFOTEAUX ChaffoLINK Assembly And Operation Manual page 64

Type 7

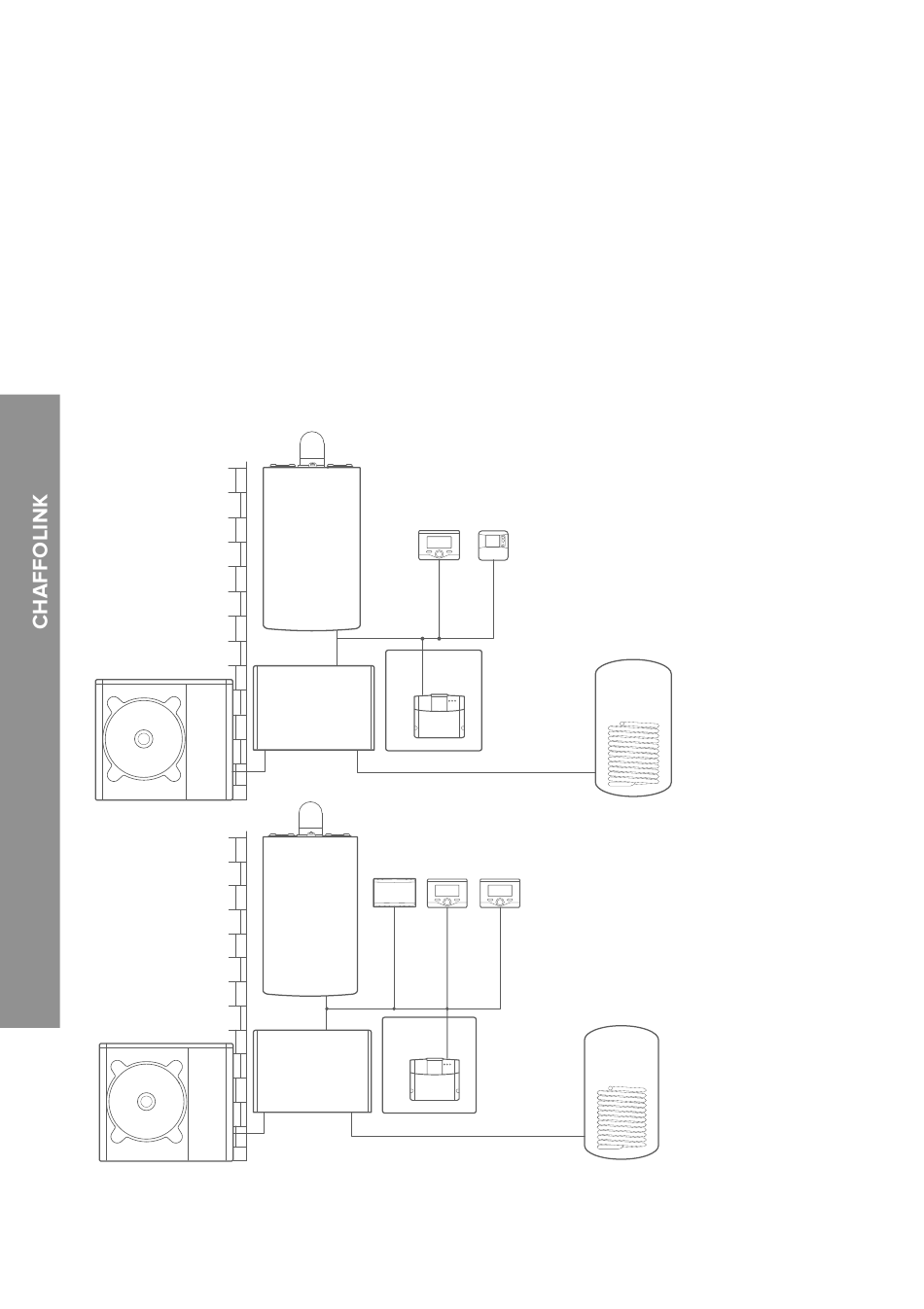

Activation of RD and RC in a hybrid system with up to 2 hydraulic zones con-
trolled by BUS devices with domestic water cylinder (Fig. 13)
System fi tted with the Chaff oteaux product, to which BUS zone management acces-
sories are connected, such as Chaff oteaux Expert Control and/or Ambient Sensor. It
is possible to remotely control the cooling function, if available.
Actions required (Fig. 14):
- Install the gateway by connecting it to the heating system via the BUS connection
- Replace the Ambient Sensor with Chaff oteaux Expert Control
- Install the zone manager kit designed for controlling the cooling function (3319079)
64
NOTE:
FOR INFORMATION ON OTHER POSSIBLE SCHEMES, CONTACT YOUR TRUSTED TECHNICAL ASSISTANCE CENTRE
