Type 3
Activation of RD and RC in a system with Expert Control already installed.
Chaff oteaux basic heating system equipped with BUS protocol, with the Chaff oteaux
Expert Control accessory already installed, in which the user wishes to activate Re-
mote Control and Remote Assistance:

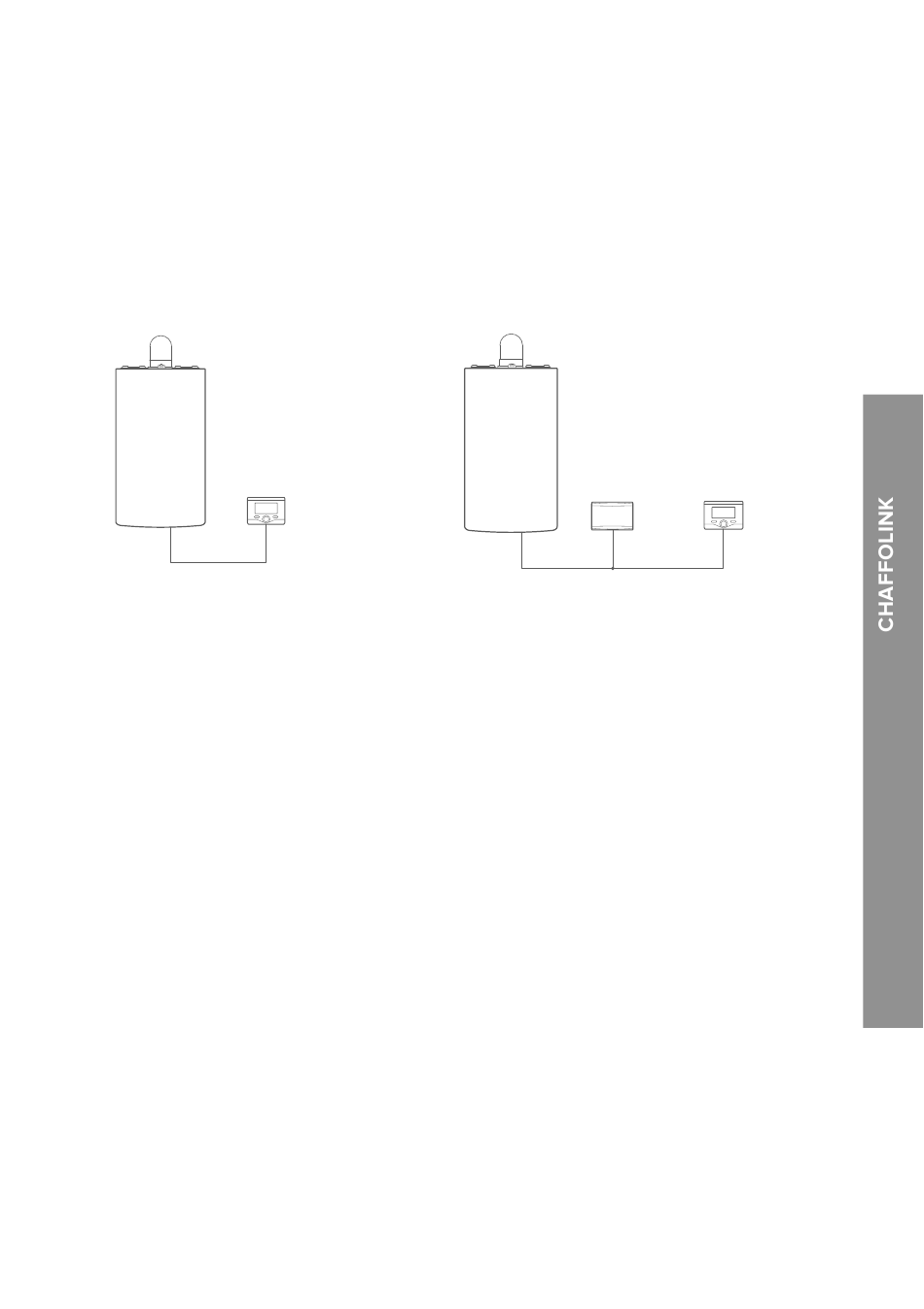

- Initial situation (Fig. 4)
- Final situation (Fig. 5)
EXPERT CONTROL
BUS
NOTE:
In order to avoid interference problems, use a shielded cable or twisted pair ca-
ble. The following versions of the Chaff oteaux Expert Control software are not
compatible with Chaff olink:
- 01.00.00
- 01.00.04
In such case, the existing Expert Control must be replaced with a new one.
fi g.4
GATEWAY EXPERT CONTROL
BUS
fi g.5
