Bogen Easy Design HS30EZ Install Manual

Speaker Layout

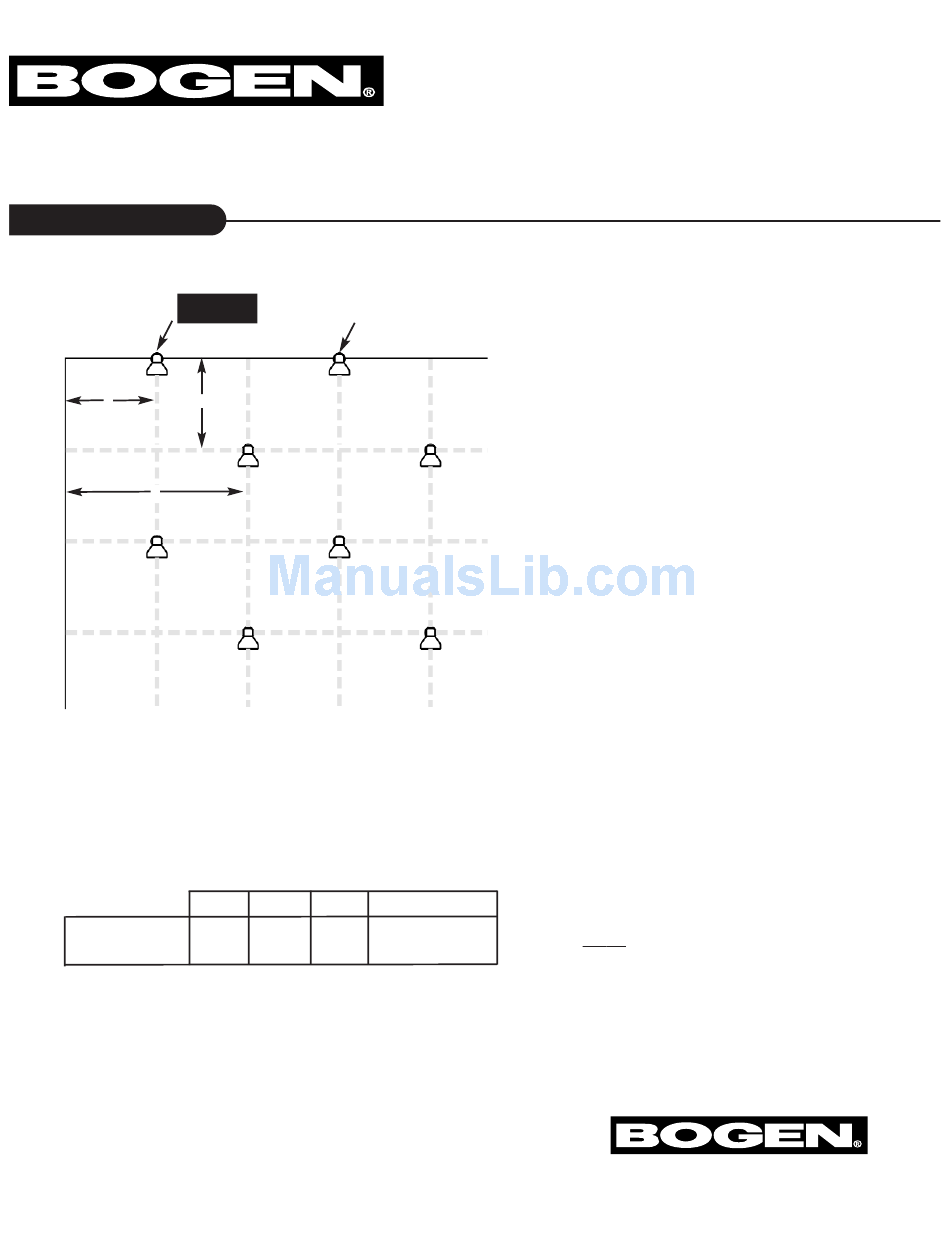

Figure 1
Row 1
A
Row 2
B
Row 3
Row 4
Figure 2
Very High Noise
(85dB-95dB)
HORN SPEAKER
START
C
PLACEMENT
A B C
45 ft. 90 ft. 55 ft.
Easy Design Speaker
Model HS30EZ
The layout of the speakers should be planned prior
to installation. Desired mounting height, barring
obstructions, is 15 to 20 feet, with the speakers
angled downward toward the listening area and
facing in the same direction.
Layout starts in one corner of the area. The first
speaker in Row 1 should be positioned 45 feet
from the corner.The next speaker in Row 1 should
be 90 feet from the first speaker (see Figure 1).
Each additional speaker in the row should use this
same spacing.
Row 2 starts 55 feet from Row 1 and, like Row 1,
each speaker in Row 2 should be 90 feet apart.
Row 3 starts 55 feet from Row 2. Continue this
pattern of alternating rows until the area is cov-
ered.
For areas that include high shelving or corridors,
speakers should be installed so that they project
down the aisles between the shelves or down
through the corridors.
The spacing of the speakers can be adjusted so
that the speakers are evenly spaced in a row.
Volume Setting
Full Clockwise
TM
NOTE: Each environment is unique.This layout
plan is general in nature and may not be
applicable for every installation.
Specifications subject to change without notice.
© 1999 Bogen Communications Inc. All rights reserved.
54-5073-01 Printed in Korea 9906
