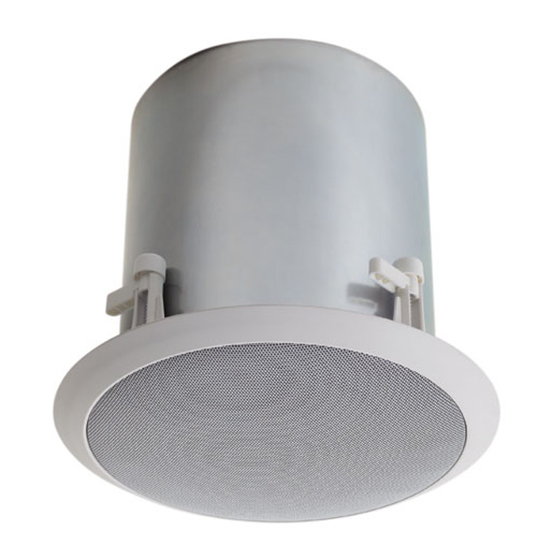

High-fidelity ceiling speaker
Hide thumbs
Also See for HFCS1:
- Installation and use manual (9 pages) ,
- Specifications (2 pages) ,
- Wiring diagrams (4 pages)
Subscribe to Our Youtube Channel
Related Manuals for Bogen HFCS1
Summary of Contents for Bogen HFCS1
- Page 1 High-Fidelity Ceiling Speaker HFCS1 Installation and Use Manual © 2003 Bogen Communications, Inc. All rights reserved. Specifications subject to change without notice. 54-2091-01A 0302 Printed in Taiwan.
- Page 3 Product Diagrams HFCS1 Front Drawing (grille removed) 1. Coaxial Driver Assembly 2. Dual Bass Tuning Vents (x2) 3. Grille Retention Groove 4. Power Tap Selection Switch 5. Mounting Clamp Screws (x4) HFCS1 Front Drawing (grille removed) HFCS1 Rear Drawing 6. Metal Back Can 7.
- Page 4 1. Begin by cutting a 10-¾" circular hole where the HFCS1 will be installed. If using a TBCR, then follow its installation instructions for the specific type of environ- ment the HFCS1 is being installed in.
- Page 5 All wiring should be done prior to installation and then plugged into the rear of the HFCS1. DAISY CHAINING The HFCS1’s snap-lock input connector allows for easy daisy chaining of speakers by providing a second terminal of each polarity.
- Page 6 - parallel networks while keeping the total system impedance at a level suitable for low-impedance amplifiers. 25V SYSTEMS The HFCS1 will operate on 25V systems, but at 25V Conversion Table reduced power levels. The chart to the right shows the conversion from a 70V power setting to the actual 25V power level.
- Page 7 Specifications SPECIFICATIONS HFCS1 Frequency Response (-10 dB) * 65 Hz to 19 kHz LF Driver " PolyCone HF Driver 20 mm ( ") Polycarbonate Dome Sensitivity (1W/1M) 89 dBspl (Average 100 Hz - 10 kHz) Impedance Ratings Low (16 ohms) / High (70V/100V) Power Input (Max.)
- Page 8 Warranty Bogen HFCS1 Ceiling Speakers are warranted to be free from defects in material or workmanship provided that the product has not been subjected to abuse or accident or altered in any way for three (3) years from the date of sale to the original purchas- er.Any part of the product covered by this warranty that, with normal installation and...
