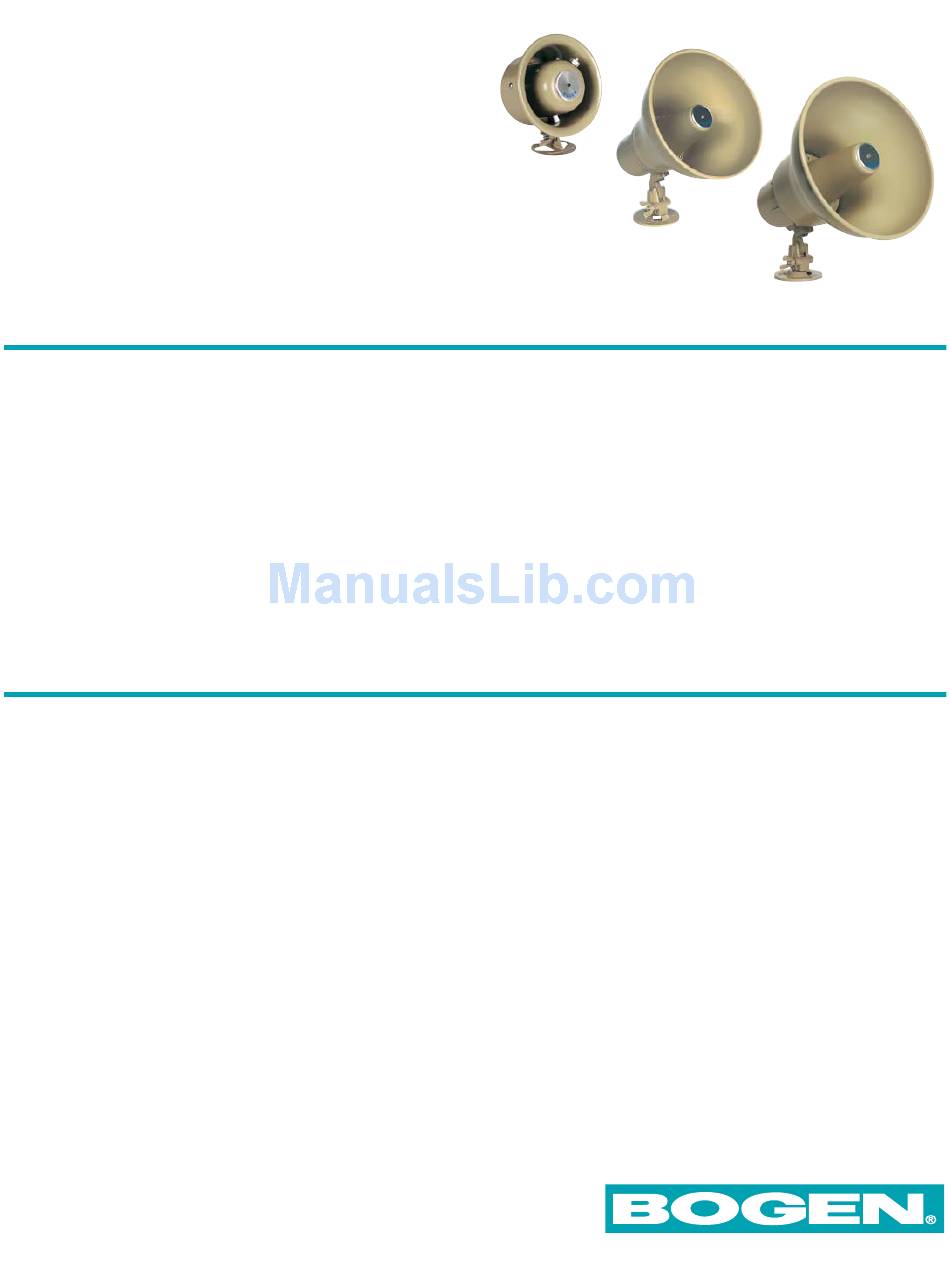

Easy Design
Horn Loudspeakers
HS7EZ, HS15EZ, & HS30EZ

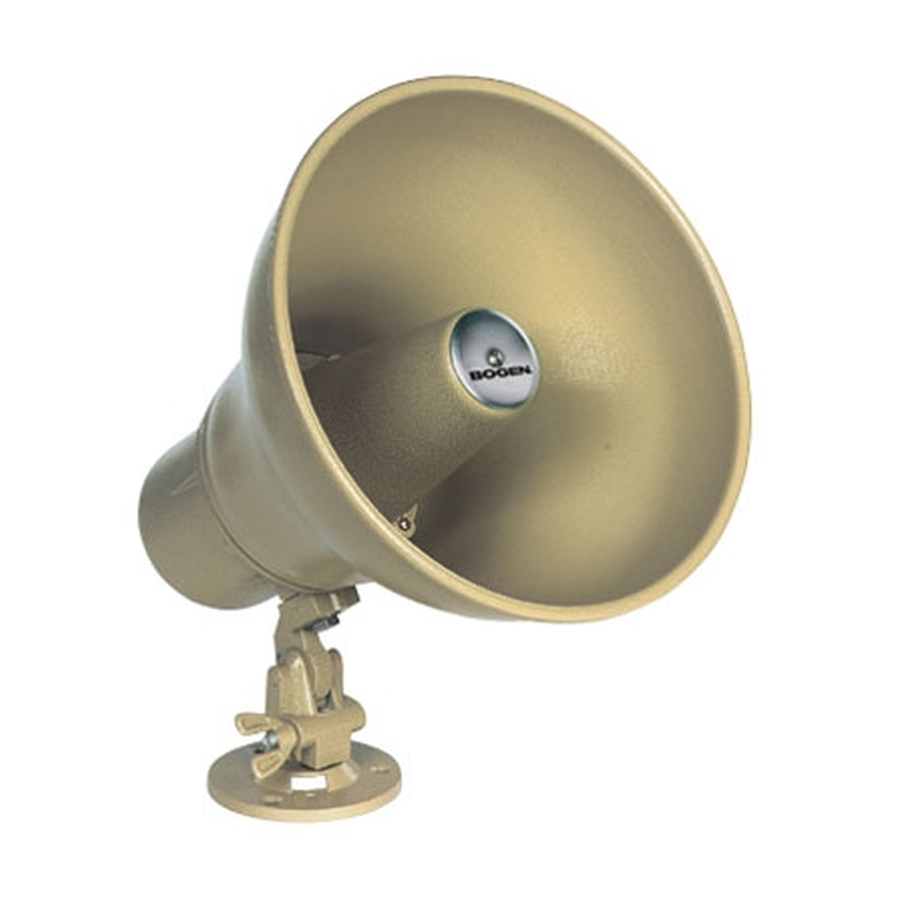

Bogen's Easy Design line of horn loudspeakers are compact, high intelligibility, reentrant type loudspeakers
designed for use with 70V amplifier systems. Their sturdy, weatherproof, all metal construction is ideal for
Description
indoor and outdoor use in industrial plants, warehouses, schools, construction sites, transportation terminals,
and recreational areas.
The HS7EZ is a 7.5-watt single-tap speaker; the HS15EZ, a 15-watt single-tap speaker; and the HS30EZ, a 30-
watt single-tap speaker.All three models include a stepped attenuator volume control and come with a swiv-
el and tilt mounting base for greater flexibility in setting the angle of projection.
The HS15EZ and HS30EZ are engineered to simplify installation (with a uniquely designed all-purpose mount-
ing bracket) and field maintenance (with a self-aligning, field replaceable diaphragm), which saves both time
and money.
Both the speakers and the mounting brackets are attractively finished in textured mocha enamel.
• 7.5-, 15-, and 30-watt models
Features
• Single-tap design
• Stepped attenuator volume control
• 12" lead wire for electrical connections (HS7EZ)
• Screw terminal connections for fast installation
(HS15EZ and HS30EZ models)
™
Models
HS7EZ
HS15EZ
• Designed for 70V amplifier outputs
• Swivel and tilt mounting base for flexibility in
coverage
• High intelligibility and efficiency
• Weatherproof, all metal construction
• I-beam mounting clamp (optional) (Model BC1)
Specifications subject to change without notice.
© 1999 Bogen Communications, Inc.
Part No. 54-7888-01B Printed in U.S.A. 0212
